SH-HC30 Height Controller System Manual

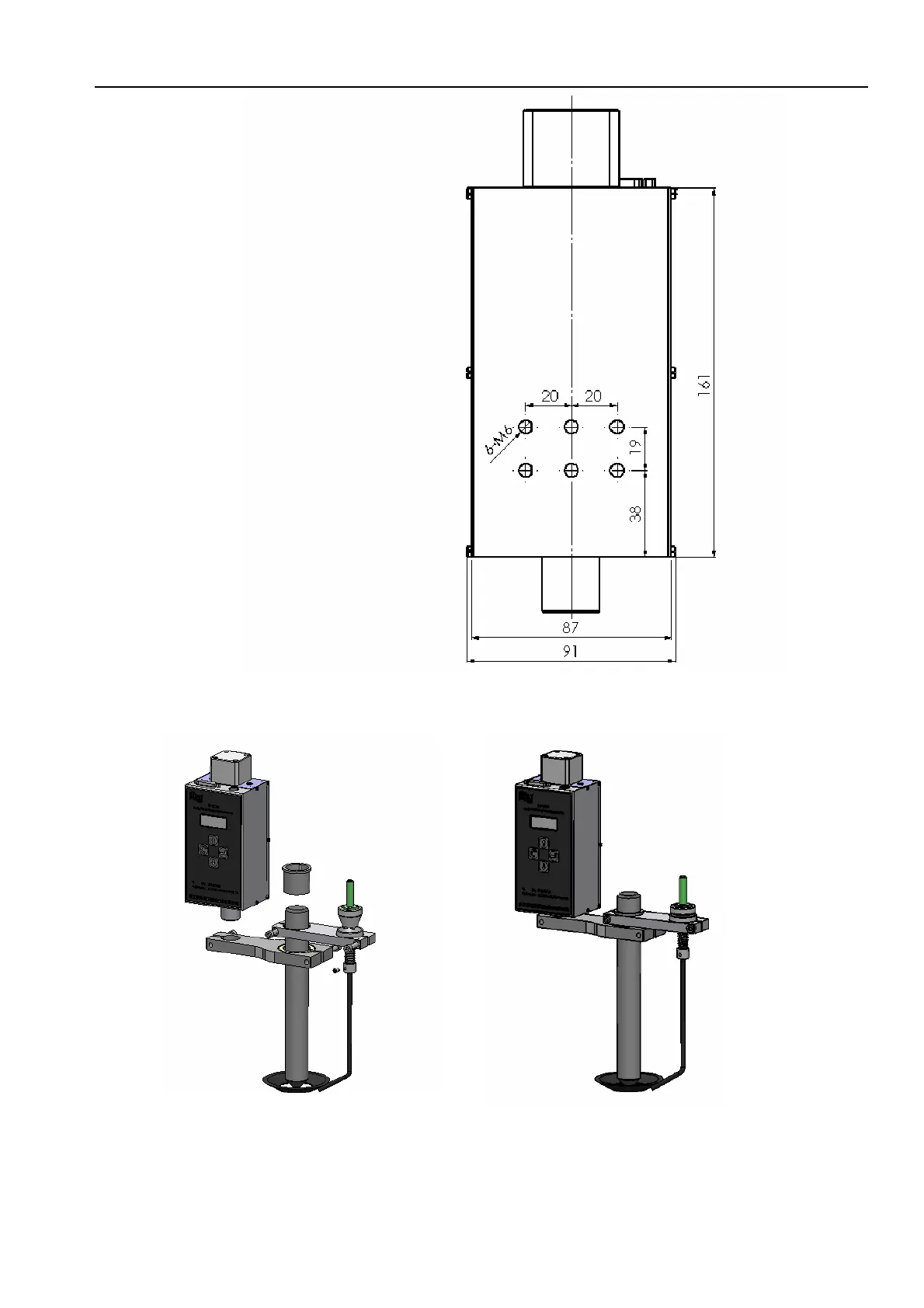

Figure 3-4
Back view of height controller
Installation diagram of
the connecting components of
the height controller is
shown in Figure 3-5
Pa
ge
7
Figure 3-5
Installation diagram of the connecting components of the height controller
10
12
