Microtec CUT4060E - Controls, Indicators and Displays

microTec



20

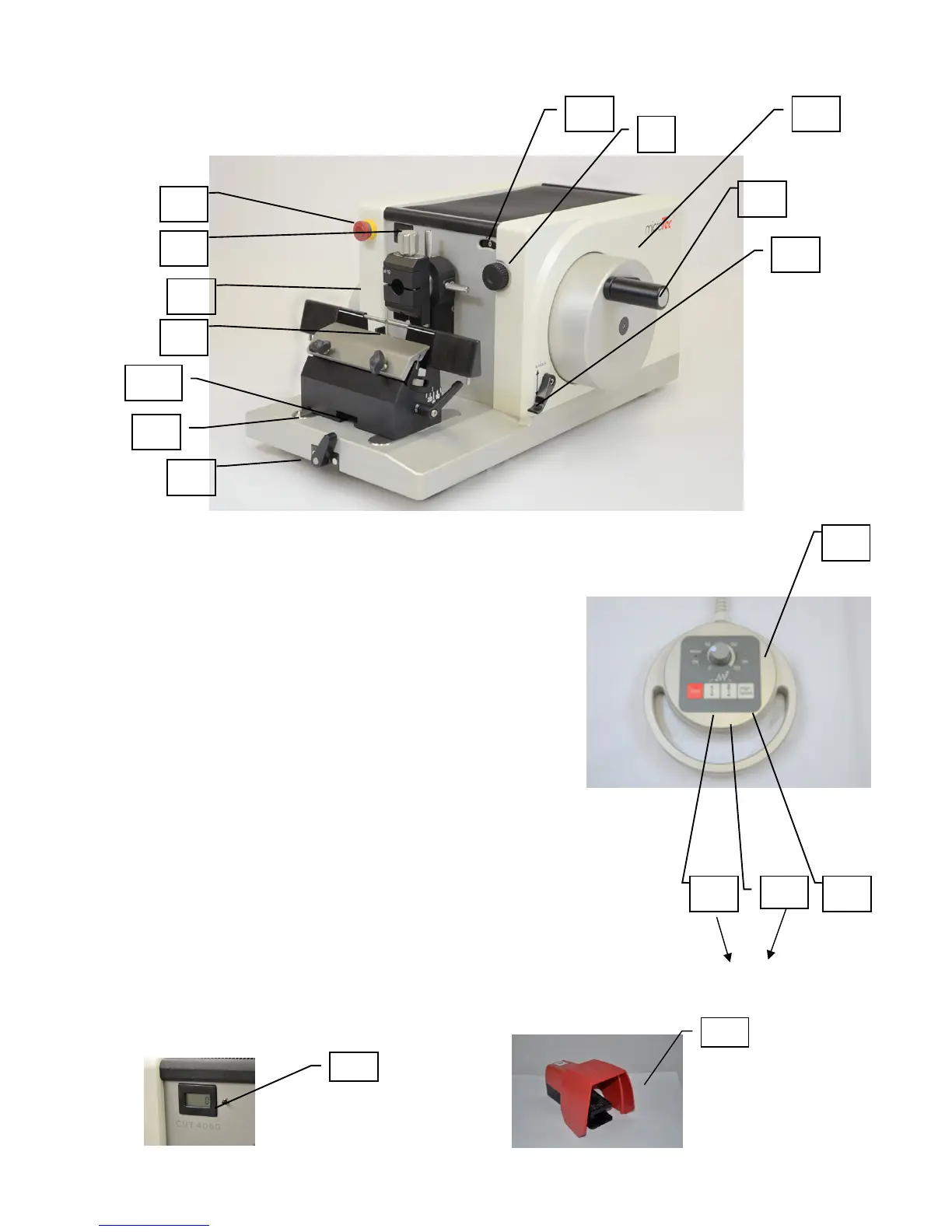

5.3 Controls, Indicators, and Displays
Item Description
1 Handwheel for cutting operation
2 Handwheel handle for handwheel 1
3 Handwheel locking device
4 Handwheel control panel
5 Rotary knob for setting the thickness of slice
6 Inspection window for setting and inspecting slice
thickness
7 Locking lever for knife holder
8 Lever for trimming adjustment
9 LCD-display (cutting counter)
10 Reset for LCD-display
11 Handwheel for coarse drive
12 Clamping mechanism for knife holder
13 Guide bars for knife holder
14 Foot switch
15 Step Operation
16 Single stroke
Continuous stroke
17 High Speed Key Foot switch
20 Emergency shutdown
LCD-display
6
15
7
5
2
3
1
8
9
11
4
12
13
20
16
17
10
14
