7.3 Orientable Adapter

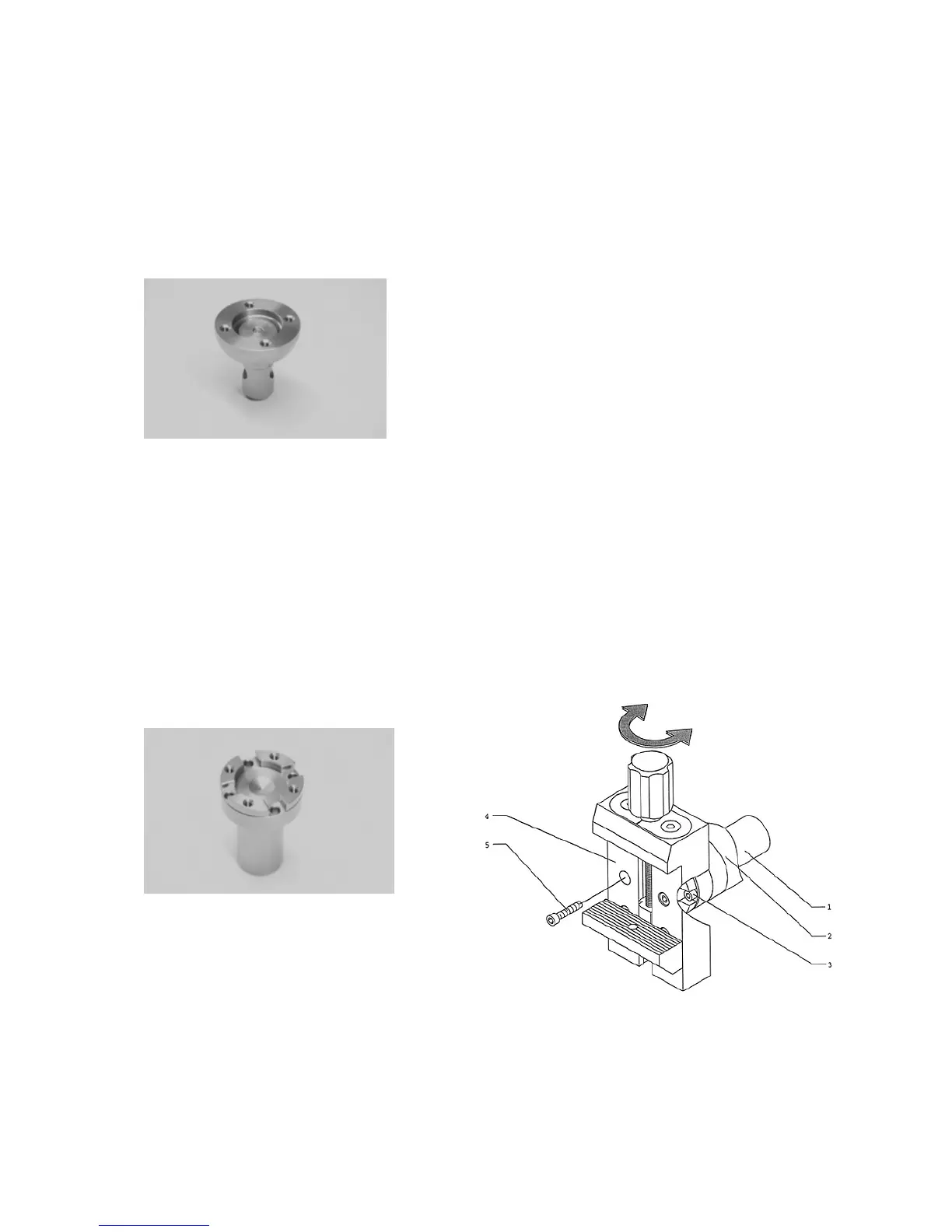

The orientable adapter can optionally be attached by screws to the various specimen
clamping systems and be used only in combination with the specimen orientation device.
Specimen clamping systems of orientable design are supplied ex works equipped with
the orientable adapter.
Example
The orientable adapter is shown in this illustration attached to the standard specimen
clamping fixture by 4 screws and can be removed if required.
Dismantling the standard specimen clamping fixture: Loosen 4 screws
7.4 Fixed Adapter
This adapter is used as a fixed attachment directly on to the cylinder, and can be
optionally fitted to various specimen clamping systems.
