Microtek ArtixScan 120tf User Manual

ArtixScan 120tf Installation and Operation Manual 9

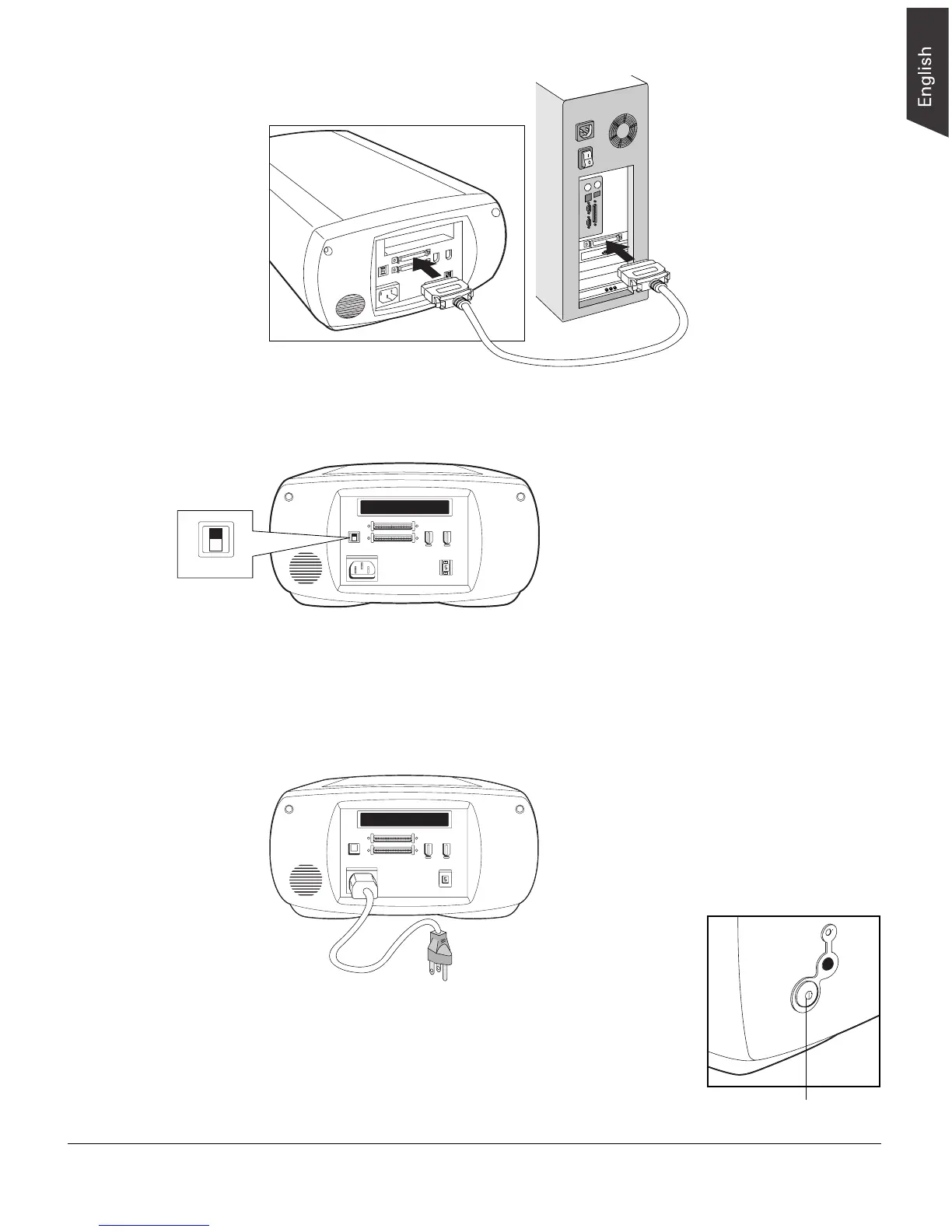

4. Set the scanner’s terminator switch to the “ON” position.
5. Connect the power cord to the scanner.
Plug the power cord into the back of the scanner, and plug the other end into a
wall outlet or power source.
ON
OFF
SCSI TERM
Note: If you have multiple devices on
your SCSI chain, make sure the scanner
is the last device on the chain and that
the scanner is terminated (i.e., scanner's
terminator switch is set to ON).
For PC users
6
+
6. Turn on the scanner, and wait for the lights on the front
panel to stop blinking and stay on steady.
7. Turn on the computer; the system will detect the
scanner automatically.
Power button

Microtek ArtixScan 120tf Specifications

Power

voltage	AC 90V to 264V, 47-63 Hz

Operating Environment

operating temperature	50° to 95°F (10° to 35°C)
relative humidity	20% to 80%

Scanning Specifications

scanning area	6 x 9 cm Max., 6 x 7 cm, 6 x 6 cm, 6 x 4.5 cm, 25 x 38 mm
resolution optical	4, 000 dpi x 4, 000 dpi
resolution interpolated	16, 000 dpi x 16, 000 dpi

Interfaces

firewire ports	Two
scsi ports	Two
transmission speed firewire	4 Mbytes/s
transmission speed scsi	2 Mbytes/s

Weight and Dimensions

dimensions	19.8" x 10.8" x 5.5" (504 x 274 x 142 mm)
weight	17.6 lb (8 kg)
