Microtek ArtixScan 120tf User Manual

8 ArtixScan 120tf Installation and Operation Manual
Using the SCSI Cable
Before connecting the scanner, check to see if your computer system has a built-in
SCSI interface or an installed SCSI card. If you need help on installing the SCSI card,
please refer to the documentation that came with your SCSI card.
Follow the steps below to make a SCSI connection.

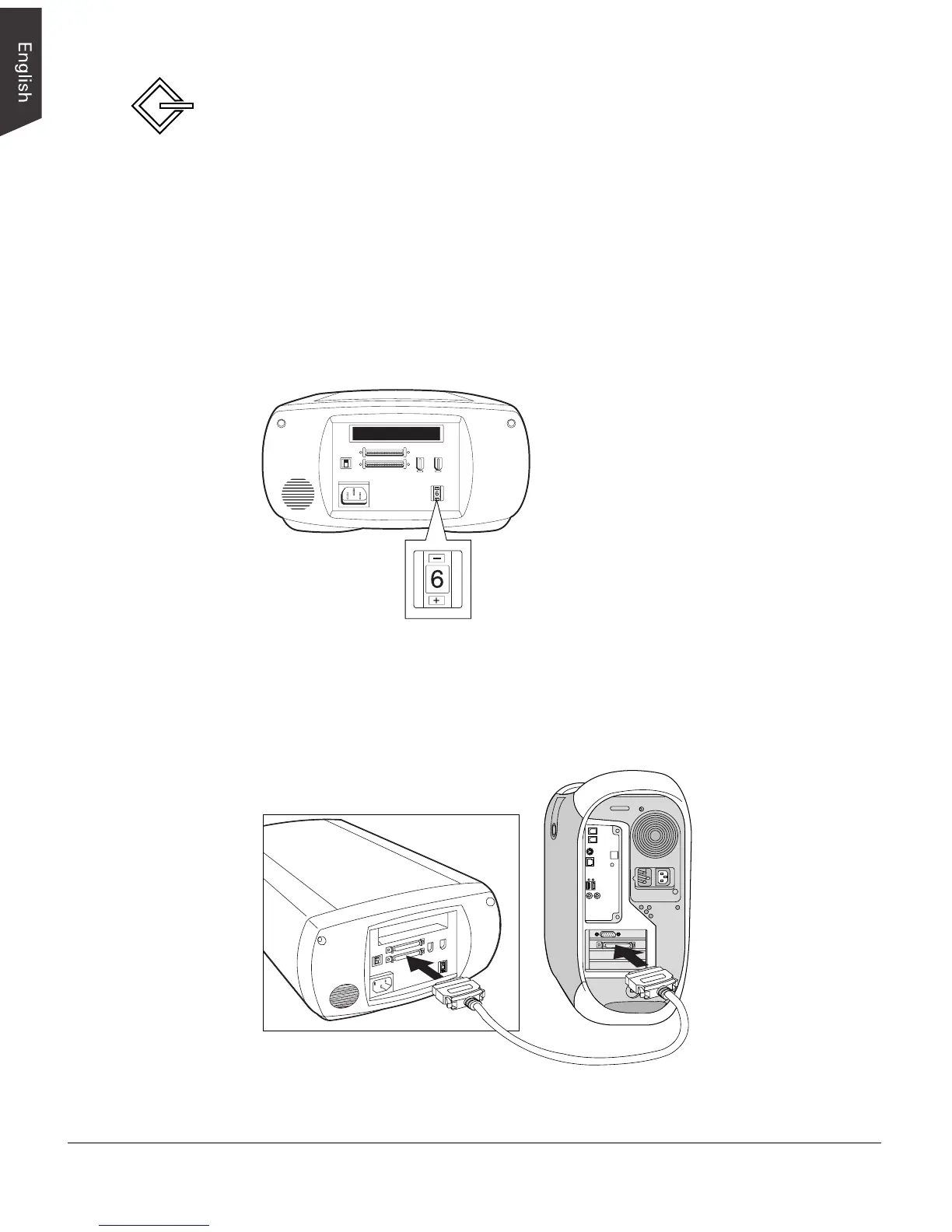

1. Shut down your computer.
2. Set the SCSI ID number to 6. If the SCSI ID number 6 is used by another SCSI
device, check which SCSI ID is free, and set the number to a free SCSI ID from 2
through 5.
3. Connect the scanner to your computer, using the provided SCSI cable.
Connect one end of the SCSI cable to your computer’s SCSI port, and connect the
other end of the cable to the scanner’s SCSI port.
6
+
For Macintosh users
Push the minus button (-) above the
SCSI ID number to decrease the
number; push the plus button (+) to
increase the number.

Microtek ArtixScan 120tf Specifications

Power

voltage	AC 90V to 264V, 47-63 Hz

Operating Environment

operating temperature	50° to 95°F (10° to 35°C)
relative humidity	20% to 80%

Scanning Specifications

scanning area	6 x 9 cm Max., 6 x 7 cm, 6 x 6 cm, 6 x 4.5 cm, 25 x 38 mm
resolution optical	4, 000 dpi x 4, 000 dpi
resolution interpolated	16, 000 dpi x 16, 000 dpi

Interfaces

firewire ports	Two
scsi ports	Two
transmission speed firewire	4 Mbytes/s
transmission speed scsi	2 Mbytes/s

Weight and Dimensions

dimensions	19.8" x 10.8" x 5.5" (504 x 274 x 142 mm)
weight	17.6 lb (8 kg)
