Noise sources 99
VeniceU
Operator Manual

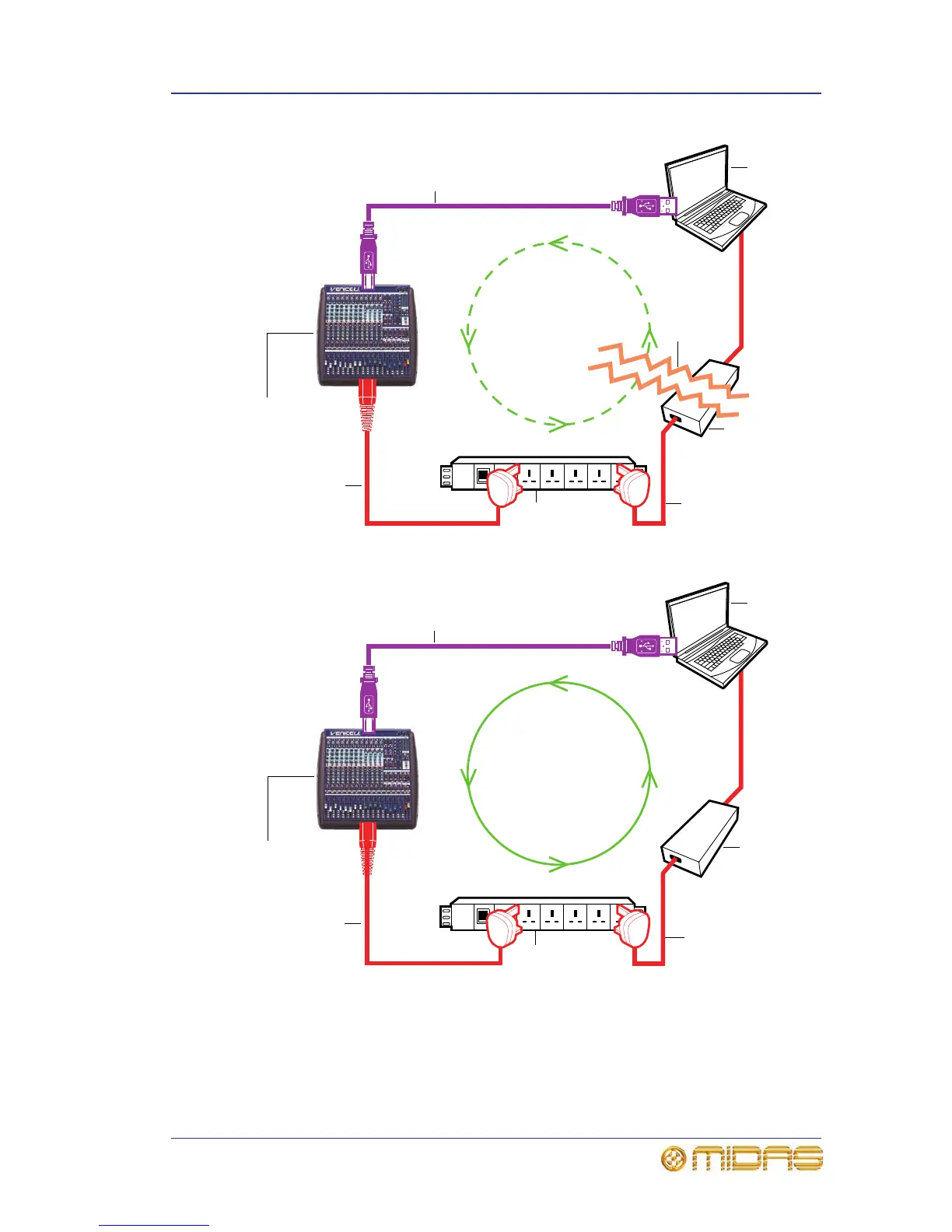

Isolated USB computer system. Note how the isolation barrier breaks the ground loop.
Non-isolated USB computer system. With no isolation barrier, the ground loop is
present.
Midas VeniceU
console
Power distribution
unit (PDU)
Power supply unit
(PSU) with
internal isolation
barrier
USB connection
Broken ground
loop
Power
connection
Laptop
PC/Mac
Power connection
Isolation
barrier
Midas VeniceU
console
USB connection
Power distribution
unit (PDU)
Power supply
unit (PSU)
without internal
isolation barrier
Ground loop
Power
connection
Laptop
PC/Mac
Power connection
