Overview of the multifunction input channel

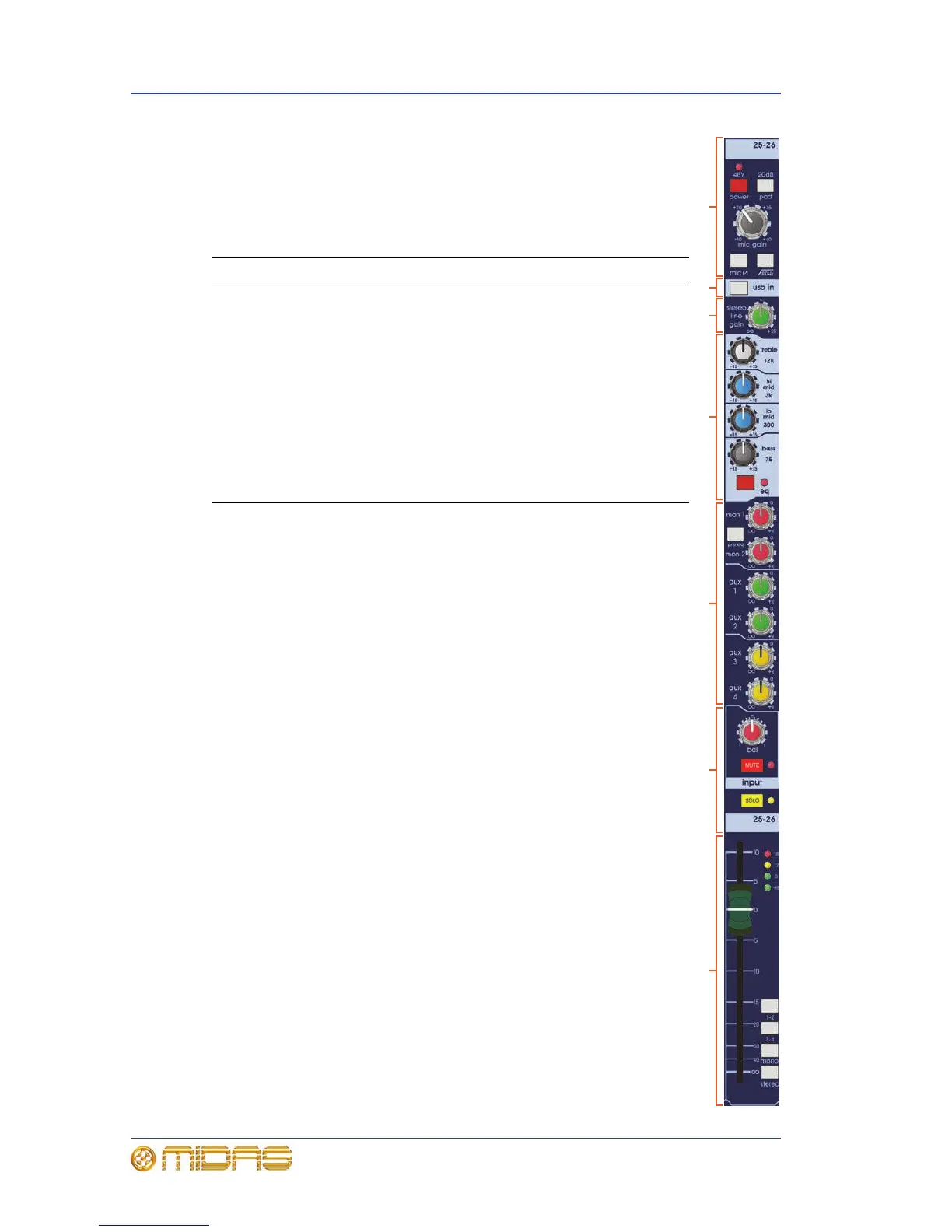

The VeniceU multifunction channel (shown right) is equipped with an
XLR input, which are used for mic/line level signals up to +32dBu. Two
1/4” TRS Jack sockets provide inputs for line level signals that require
protection against accidental 48-volt connection. The line inputs accept
signals up to +28dBu and have +20dB of gain available.
Item Section
1 Mic input gain (see “Gain (mic inputs)” on page 50).
2 USB (see “USB” on page 50).
3 Stereo line input gain (see “Stereo line inputs” on page 51).
4 EQ (see “EQ” on page 51).
5 Monitors and auxes (see “Monitors” on page 52 and “Auxes”
on page 52).
6 Balance, mute and solo (see “Balance, mute and solo” on
page 53 and “Fader, routing and meter” on page 54).
7 Fader, meter and groups (see “Fader, routing and meter” on
page 54).
