Rear panel 49
VeniceU
Operator Manual
Rear panel
The VeniceU channel inputs are located on the rear panel of the console.

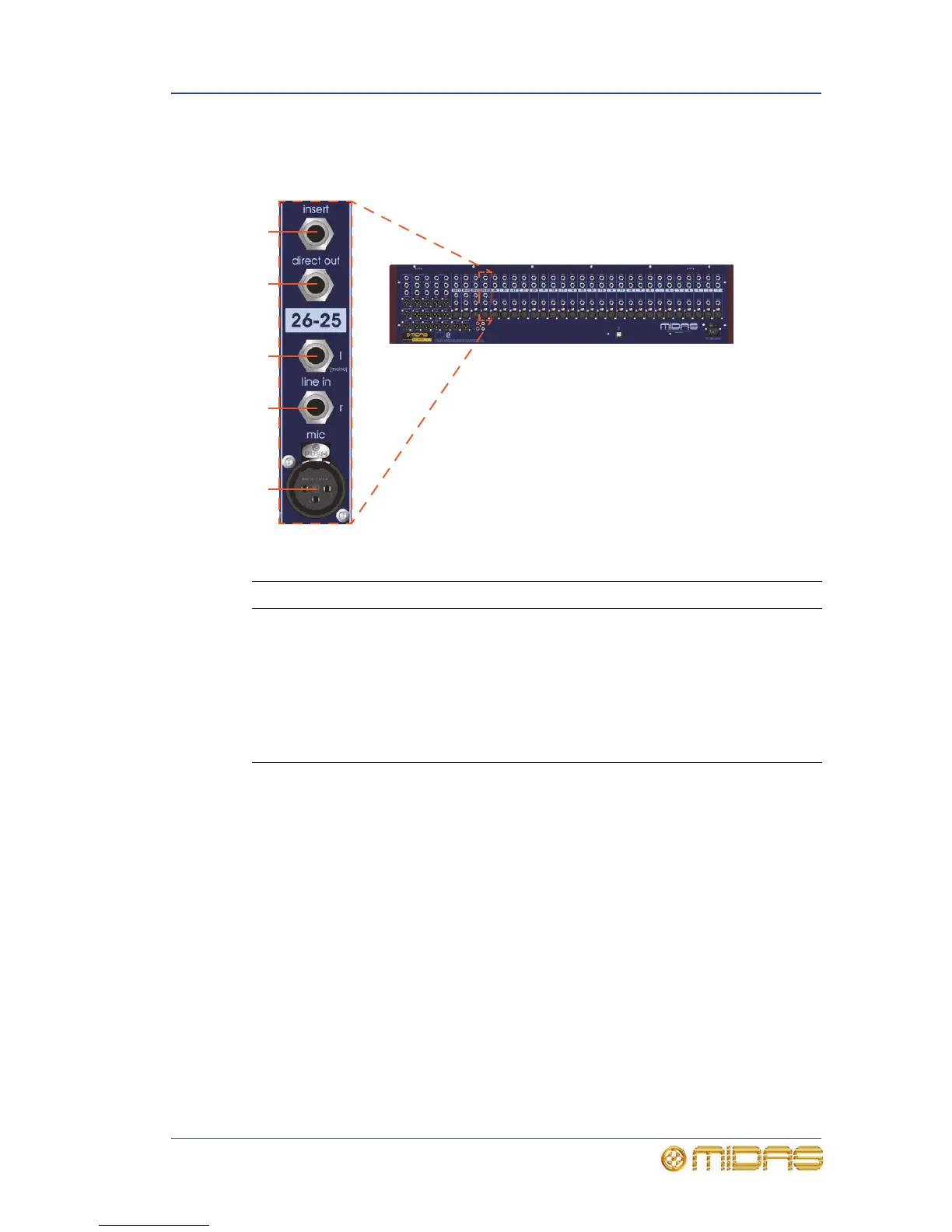

Multifunction input channel connectors
Note: The insert and direct out are sourced from the mic input only.
Item Description
1 insert Insert point on a single 1/4” TRS Jack socket. This is unbalanced
and requires a conventionally-wired insert lead.
2 direct out Direct output on a single, balanced 1/4” TRS Jack socket.
3 line in l (mono) Line in (stereo left or mono) on a single 1/4” TRS Jack
socket.
4 line in r Line in (stereo right) on a single 1/4” TRS Jack socket.
5 mic Mic input on a single, balanced XLR female chassis connector.
