Fader, routing and meter
The VeniceU is a flexible mixing console with four group buses, plus stereo and mono,
with a 100 mm fader and a four-LED signal meter per mono input channel.

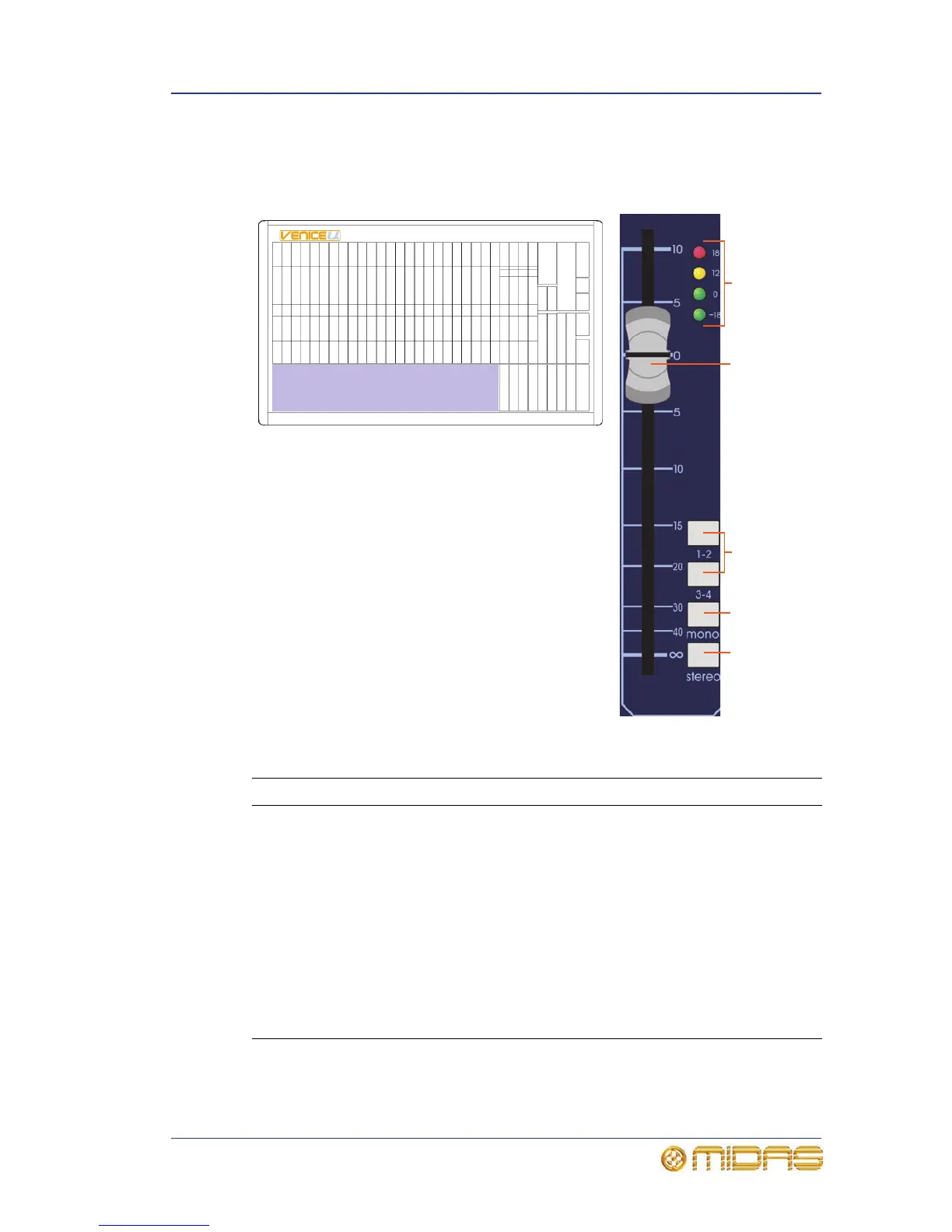

Fader section of the mono input channels
Item Description
1 LED meter These four LEDs comprise the input channel meter, which lets
you monitor the input signal without having to use the PFL.
2 Fader This channel fader allows for continuous adjustment of the channel
level from
4 (infinity/off) to +10dB. At 0dB the output of the channel to the
stereo, mono and group buses will be at unity, that is, no adjustment in
level from the input.
3 Group switches Two latching switches route the channel to group 1 or 2,
or group 3 or 4. See “Routing” on page 46.
4 mono switch This switch routes the channel signal to the mono bus
(post-EQ, pre-pan, post-mute and post-fader).
5 stereo switch This switch routes the channel signal to the stereo master
bus (post-EQ, post-pan, post-mute and post-fader).
