Midas VeniceU16

Connecting up 15
VeniceU
Operator Manual
Connecting to balanced/unbalanced equipment
The inserts of the VeniceU are unbalanced. Ideally, you will be connecting the inserts
to balanced equipment to help avoid noise problems due to grounding.

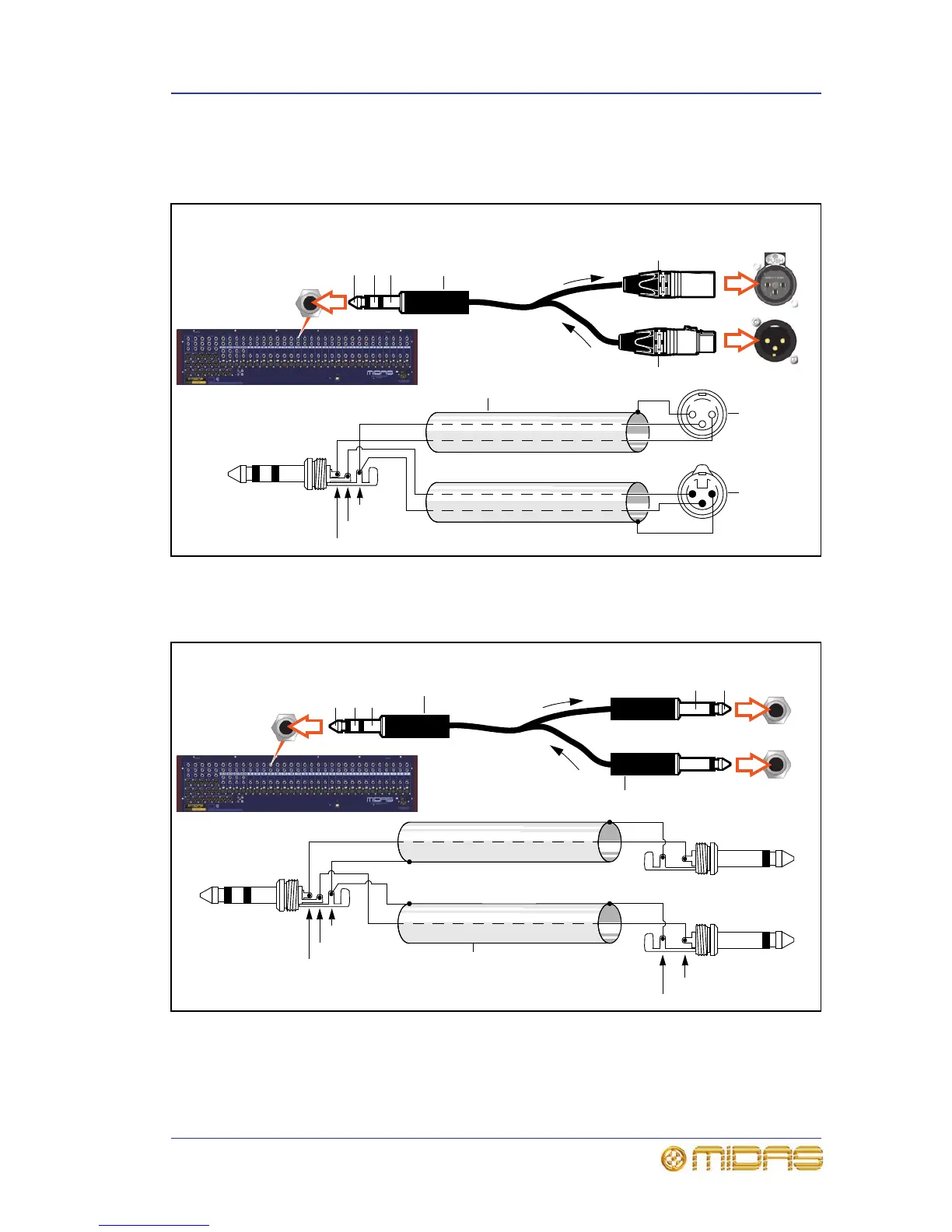

Figure 1: Connecting to balanced equipment
However, if you do have to connect to unbalanced devices, the following wiring is
recommended for best results.
Figure 2: Connecting to unbalanced equipment
Important:
If you have any audio problems, see Appendix E "Best Grounding Practice" on
page 97.
3
Female XLR
Male XLR
3
2
1
2
1
Sleeve
Ring
Tip
Male XLR
Tip Sleeve Ring
Female XLR
Input and output
sockets on rear of
external device
Rear of VeniceU console
1/4” TRS Jack
Screen
Send
Return
Send
Return
Tip Sleeve Ring
Sockets on
rear of
external
device
Rear of VeniceU console
Sleeve
Ring
Tip
1/4” TRS Jack
Sleeve Tip
Input
Output
Sleeve
Tip
Screen
Input
Output
1/4” TS Jack
