External connections 7
VeniceU
Operator Manual

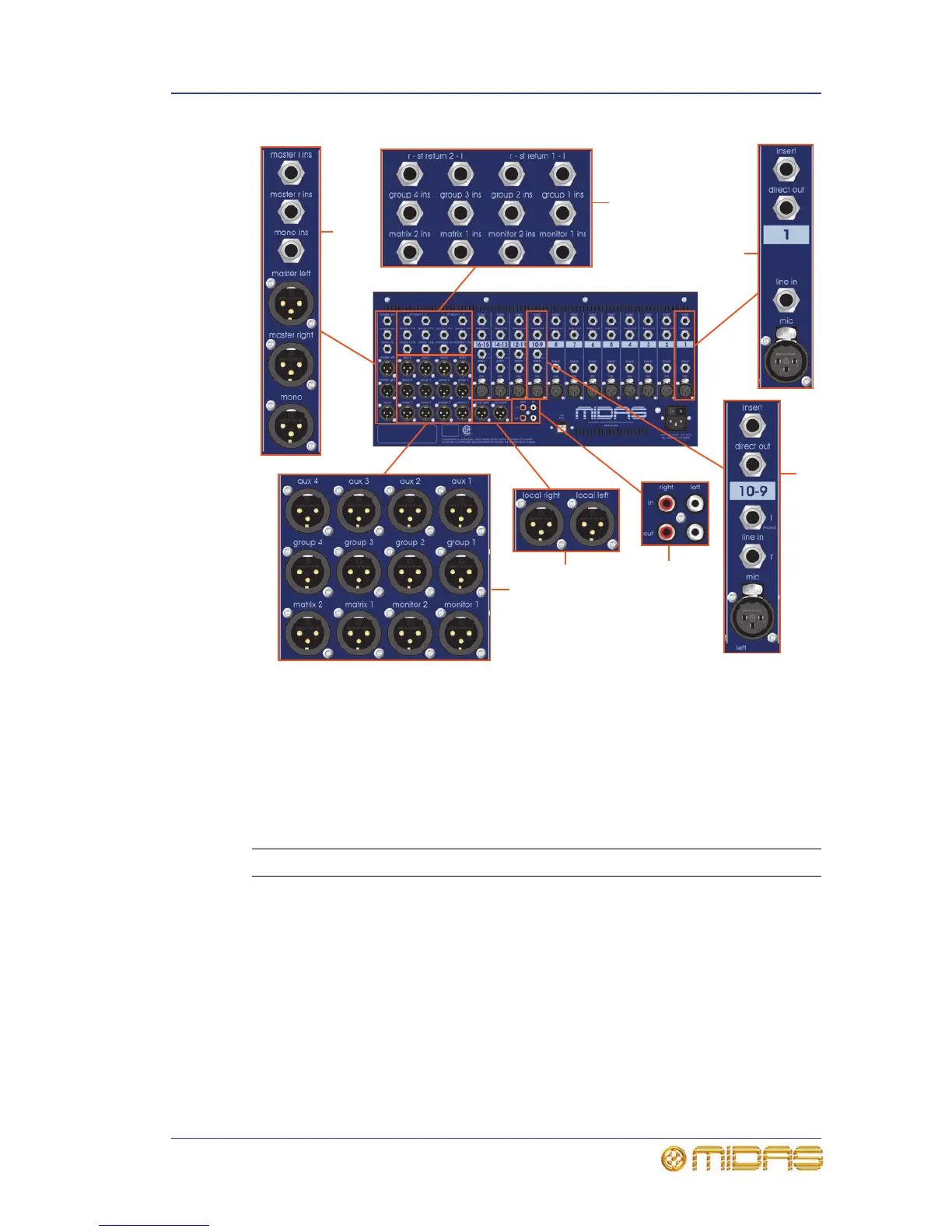

Rear panel of the VeniceU16 showing the main connector sections
A. Inserts and returns. B. Mono input channel (insert, direct out, line in and mic in).
C. Multifunction input channel (insert, direct out, line in left (mono) and right, and mic
in). D. Playback I/Os (left and right). E. Local monitor outputs. F. Aux, group, matrix
and monitor outputs. G. Stereo and mono master inserts and outputs.
External connections
The following table details all of the external connections on the VeniceU.
Connection(s) Description Notes
All mic inputs Balanced XLR connectors,
2K load
Mono and stereo channels
All primary line inputs Balanced Jacks 10K load Mono and stereo channels
All inserts Jack connectors, 50R
source, 10K load
Mono and master
channels
Group, matrix and
monitor buses
Stereo returns
