Stereo returns

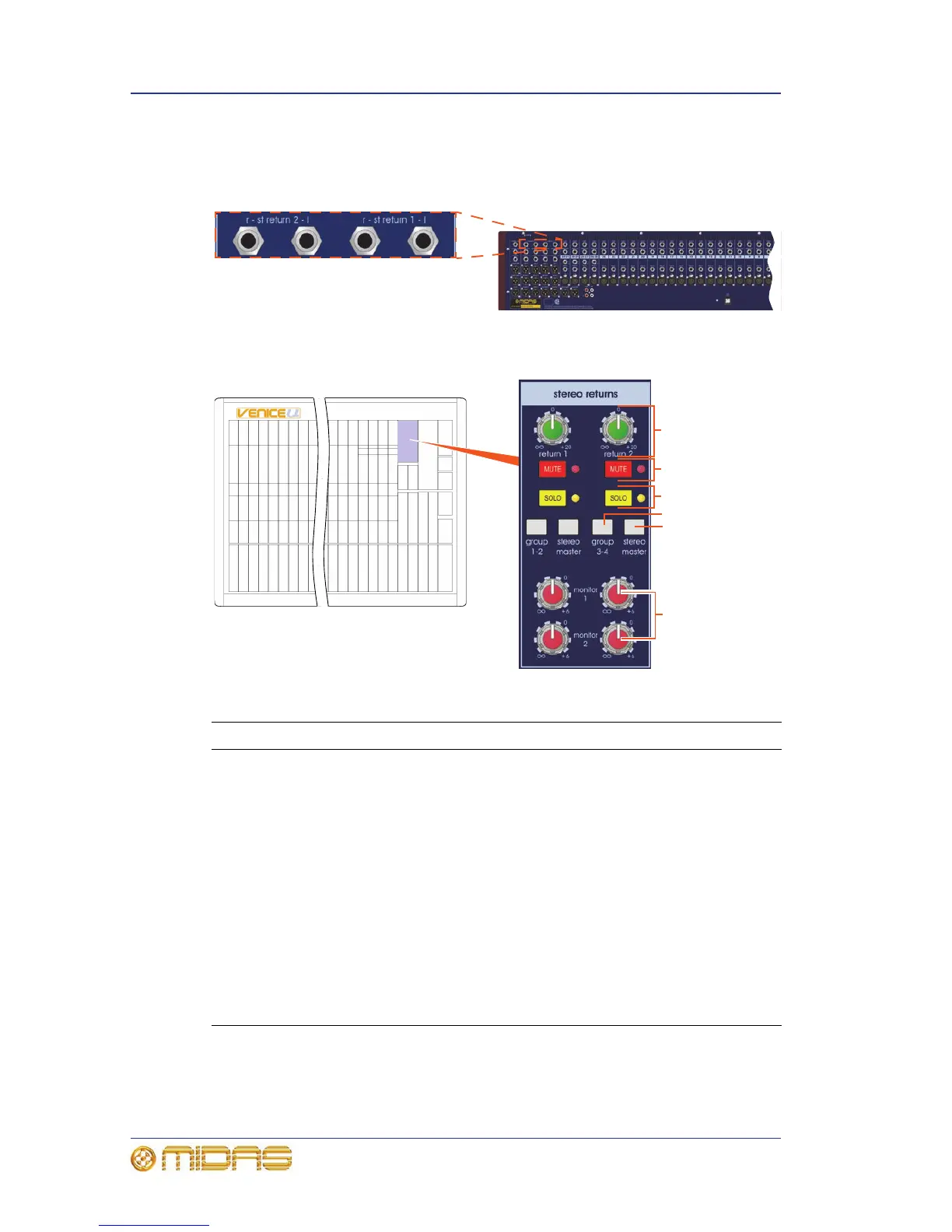

There are two stereo returns that route to masters, certain groups and the two monitor
buses.
Stereo returns 1 and 2 on the rear panel. Each return has left and right TRS 1/4” TRS
Jack sockets.
stereo returns section on the control surface
Item Description
1 return 1 and return 2 control knobs These control knobs adjust the
line gain from
4 (infinity/off) to +20dB.
2 MUTE switch and red LED These switches mute the stereo returns. The
LEDs illuminate to show that the mute is on.
3 SOLO switch and yellow LED These switches route the stereo return
signal to the mono PFL bus and stereo AFL buses. The LEDs illuminate to
show that the solo is on.
4 group 1-2 and group 3-4 switches Routes the stereo return channels
to groups 1 and 2 (return 1) or 3 and 4 (return 2).
5 stereo master switch Routes each stereo return to the stereo master
channel.
6 monitor 1 and monitor 2 control knobs Adjusts the contribution to the
monitor 1 and 2 buses (pre-fade or post-fade mono sum) from
4 (infinity/off) to +6dB.
