Midcontinent MD302 Series - Page 19

Mid-Continent Instruments and Avionics, Wichita, KS
REV. B, October 31, 2012 19 Manual Number 9017782
5.22
5.50
2.092.37
2.4" diagonal
active area
4X Ø0.150 thru
.33 4.82
3.16
2.30
static port
pitot port
USB access
15-pin D-sub
Battery access
FIGURE 2.4

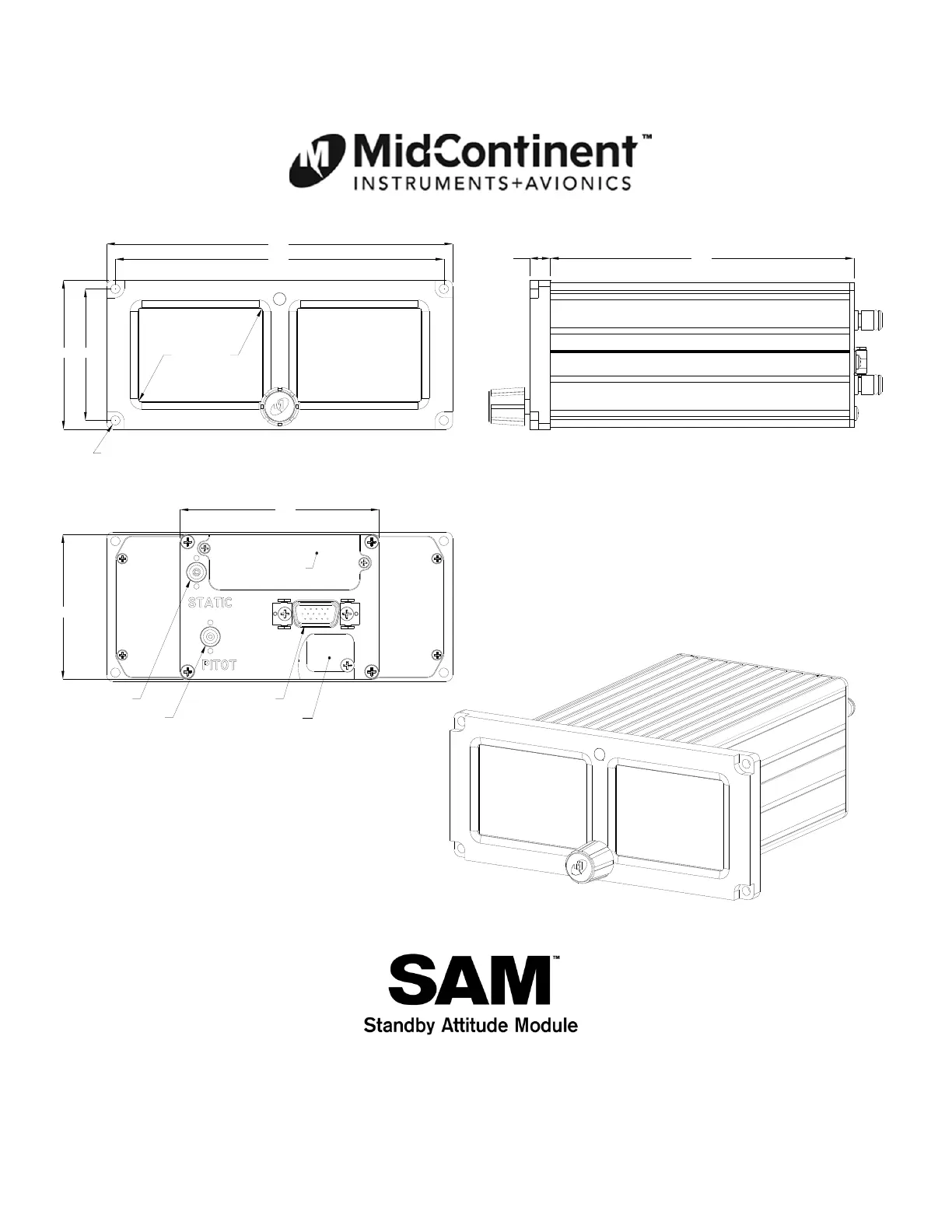

MD302 OUTLINE DRAWING
