REV. B, October 31, 2012 20 Manual Number 9017782
2.34±0.02
.50
.295
.750
.750
.295
3.25±0.05
2.090
5.220
.50
4X Ø.16±0.01 thru
wØ 0.175 X 82° countersink
only 1 of 3 required per side
4X R 0.10 max

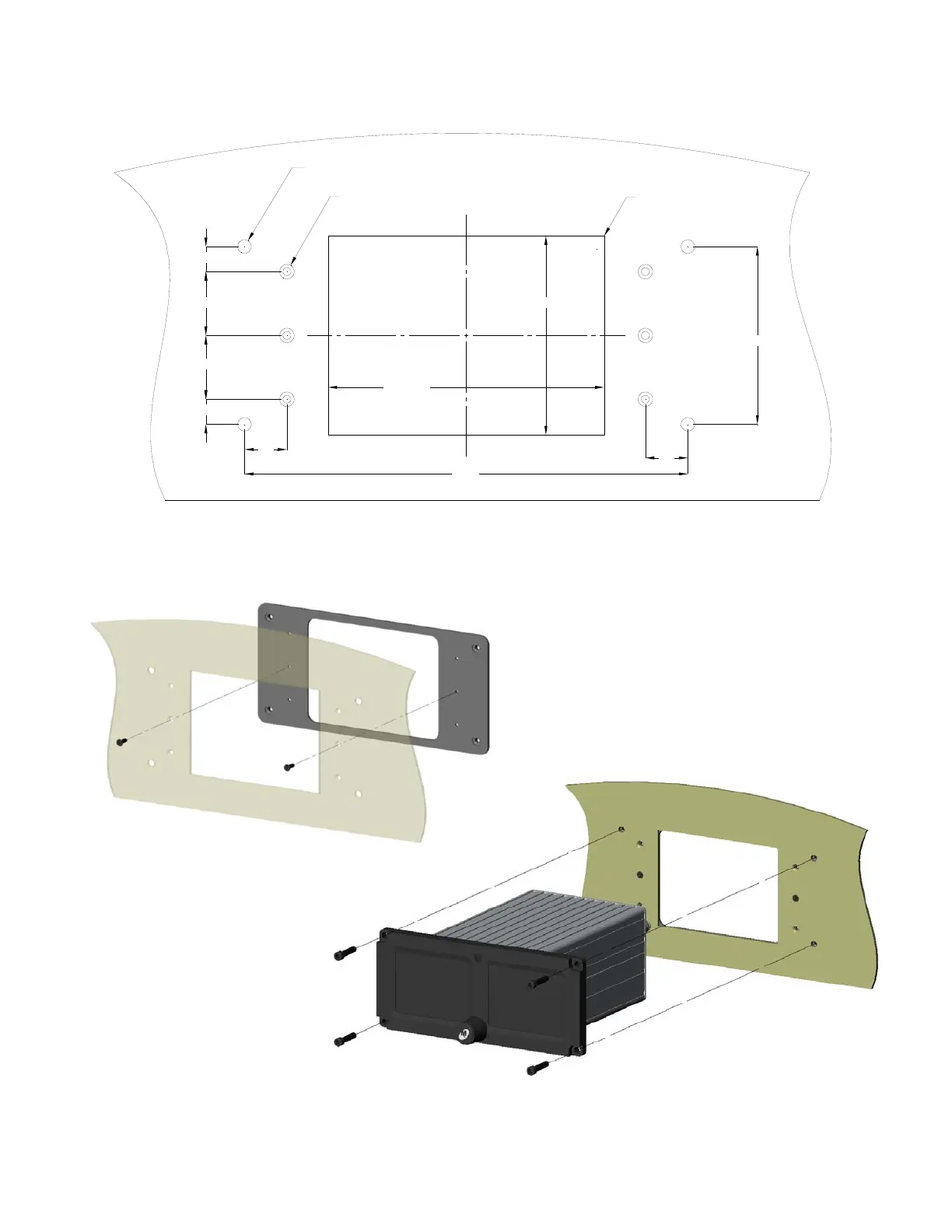

FIGURE 2.6
INSTALL ILLUSTRATION
FIGURE 2.5
PANEL CUTOUT
STEP 1
STEP 2
