Mid-Continent Instruments and Avionics, Wichita, KS
REV. B, October 31, 2012 46 Manual Number 9017782

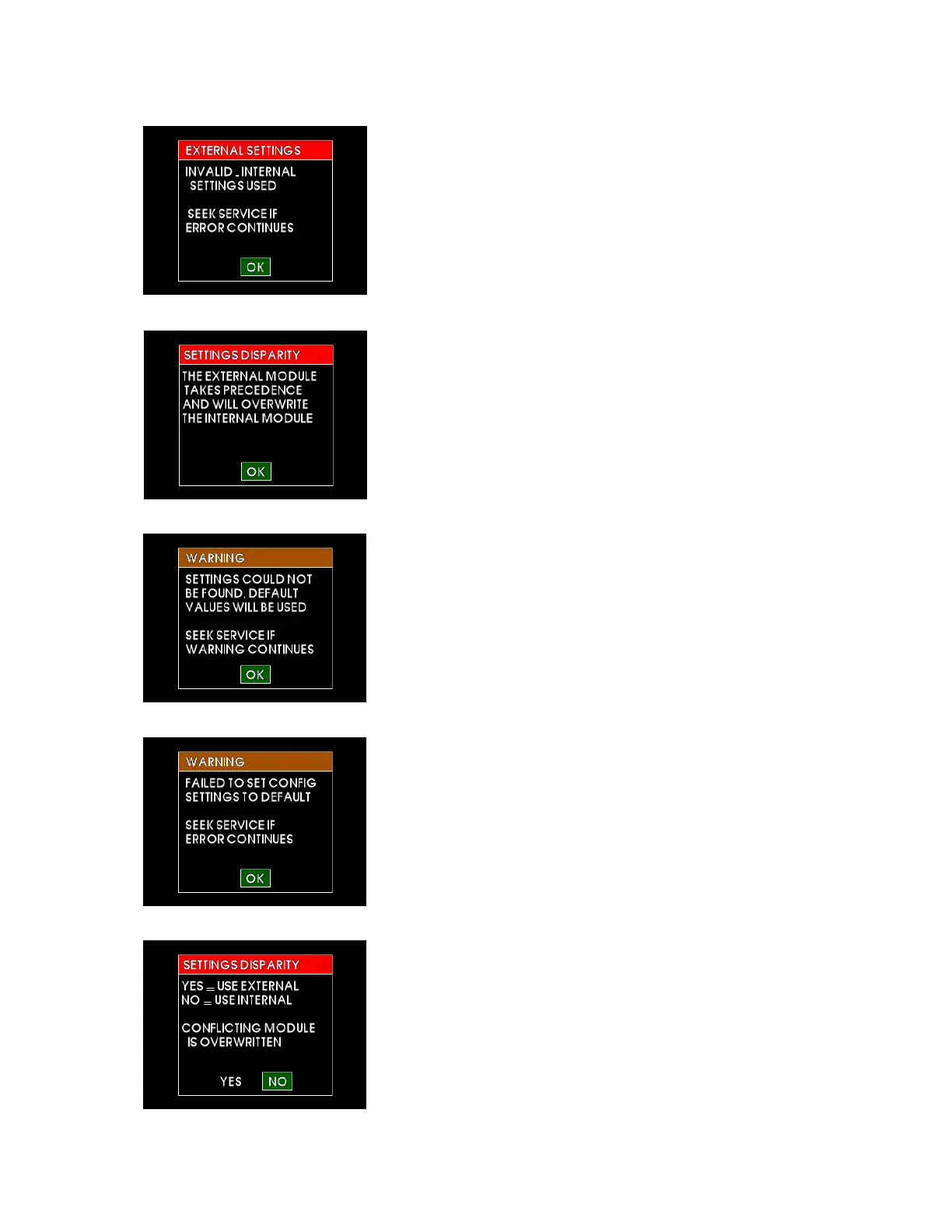

FIGURE 5.12
External settings (configuration module) were found to be invalid.
The internal settings will be copied to the configuration module
memory. Service unit if this error persists.
FIGURE 5.13
Internal (unit) and external (configuration module) settings were
found to be different. This is typically the result of replacing a unit
in an existing installation. The external settings will be copied to
replace the settings in internal memory.
FIGURE 5.14
In configuration mode, this may be the result of lost settings both
internally and externally. Try to configure the unit. Seek service if
error persists.
FIGURE 5.15
In configuration mode, this may be the result of lost settings and
a failure to initialize memory. Try to restart and configure the unit.
Seek service if error persists.
FIGURE 5.16
Internal (unit) and external (configuration module) settings were
found to be different. This is typically the result of replacing a unit
in an existing installation. In configuration mode, this choice
allows selection of which settings to use.
