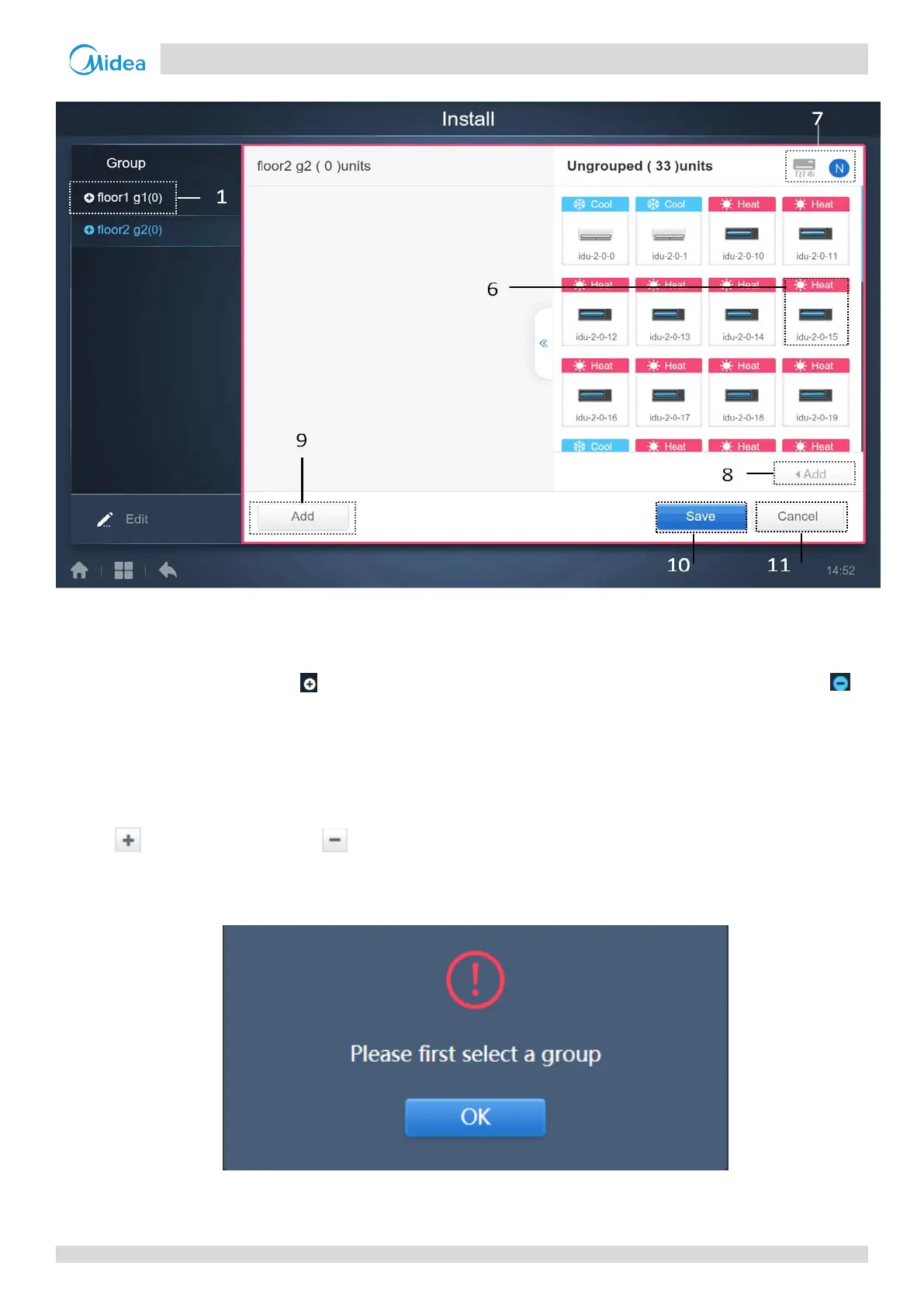

The following markings have been described as under:
1. Group Selection Area. Tap “Edit” to edit the map in the selected group. Groups with subgroups are marked with an
icon on the left of the group. Tap , if you want to expand the group and see the subgroups present inside it. Tap , if
the group is already expanded and you want to roll back the expansion. Expand the structure further and further to
see the various sub groups.
2. Tap to go to the functions to add, delete and edit the group.
3. Tap to go to the edit function to add or remove the devices, as well as add or remove the map (floor plan). The edit
page is as shown above.
4. Tap to zoom into the map. Tap , to zoom out of the map. Zoom range is 75% to 150%.
5. In the edit mode, tap 5 to display the “Add panel”, as shown in the figure above. If you try to tap “Edit” before
selecting any groups, the following error message would be prompted:
If you tap 5 before entering the Edit mode, the following error message is prompted:
