CCM-270A/WS Service Manual

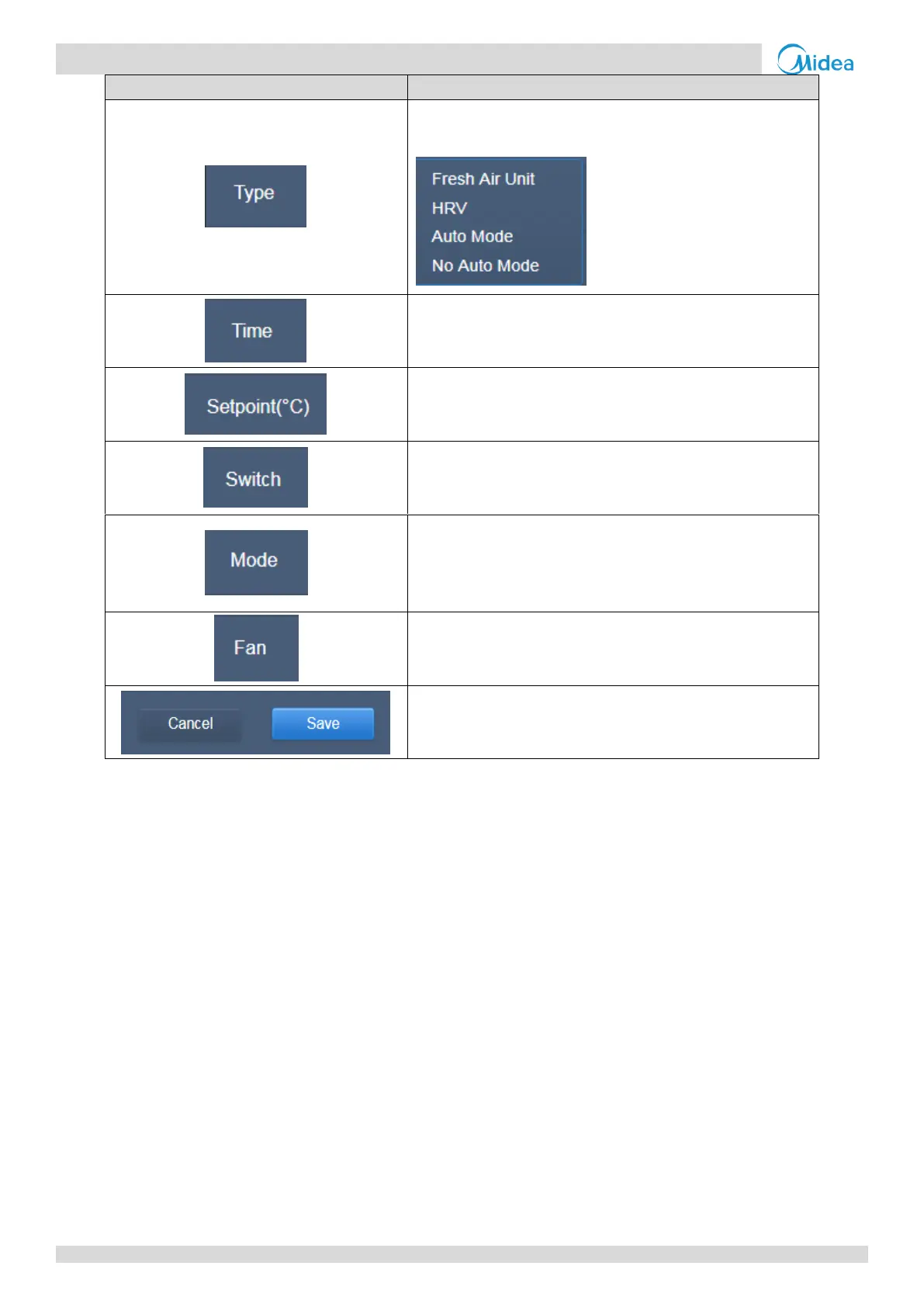

This is used to select the type of indoor unit. Four options are
available:
It is to set the time for implementation of the corresponding
schedule command.
It is to set the set point temperatures for the corresponding indoor
unit, it can be dual set points in case of Auto mode whereas in other
case it will be single set point temperature.
It is to select whether or not to switch on or off the unit at the
respective time.
This setting is to select the corresponding operation mode for the
respective unit. The operation modes would be different according to
the different types of indoor units as has been described in the
pictures above.
This option is to select the fan speed.
On clicking “Save” will save the corresponding edits as a schedule
command, clicking Cancel will delete the command
Important points:
1. Tap "+" or "-" on “Setpoint” to increase or decrease the temperature by 0.5.
2. Tap "+" or "-" on “Time” to increase or decrease the time by 1.
3. Tap the left and right arrows to turn on/off the switch. There would be no impact on the mode settings when the off
command is sent.
4. Tap the left and right arrows to toggle the fan speed.
5. If the model in the schedule does not support this command, refer to the response of the actual indoor unit.
