1 CCM-270A/WS
201807 87
Note: *Certain indoor units may not support one or more locks described above.
All parameters are "--" by default which means that no command is set
For HRV- Bypass, Discharge, Fan, Auto, Heat Exchange
For Non-Auto Mode IDUs - Cool, Heat, Dry, Fan
For Auto Mode IDUs- Auto, Cool, Heat, Dry, Fan
For Fresh Air Unit – Cool, Heat, Fan

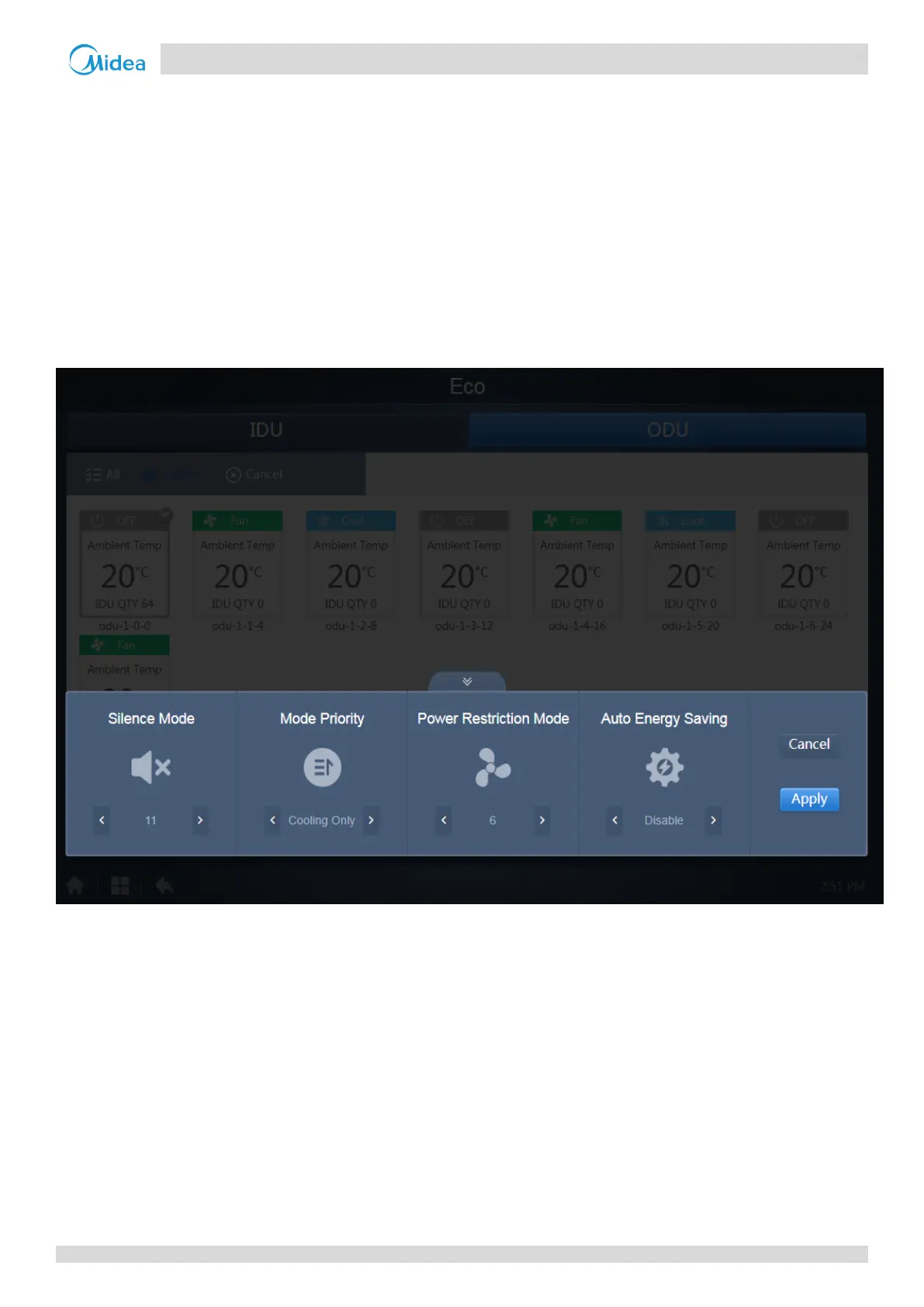

ODU: Outdoor unit page directly displays ODU objects. The control for outdoor unit is also similar for all the buttons, after
selecting one or more ODUs, click on the “Control” button to set the limitations for that outdoor unit. The descriptions of
all the available limitations available for the outdoor unit have been described in detail in the below tables.
Note: Certain outdoor units may not support one or more lock commands shown above. The CCM-270A/WS can send any lock command to the outdoor unit. If
the outdoor unit does not support the lock command, the outdoor unit will process the command based on its own logic. For details on the different lock
functions supported by different outdoor units, refer to the function manual of the corresponding outdoor unit. All parameters are "-" by default which means
that no command is sent.
