Midea ESG-Inv M Series Pool Heat Pump Manual

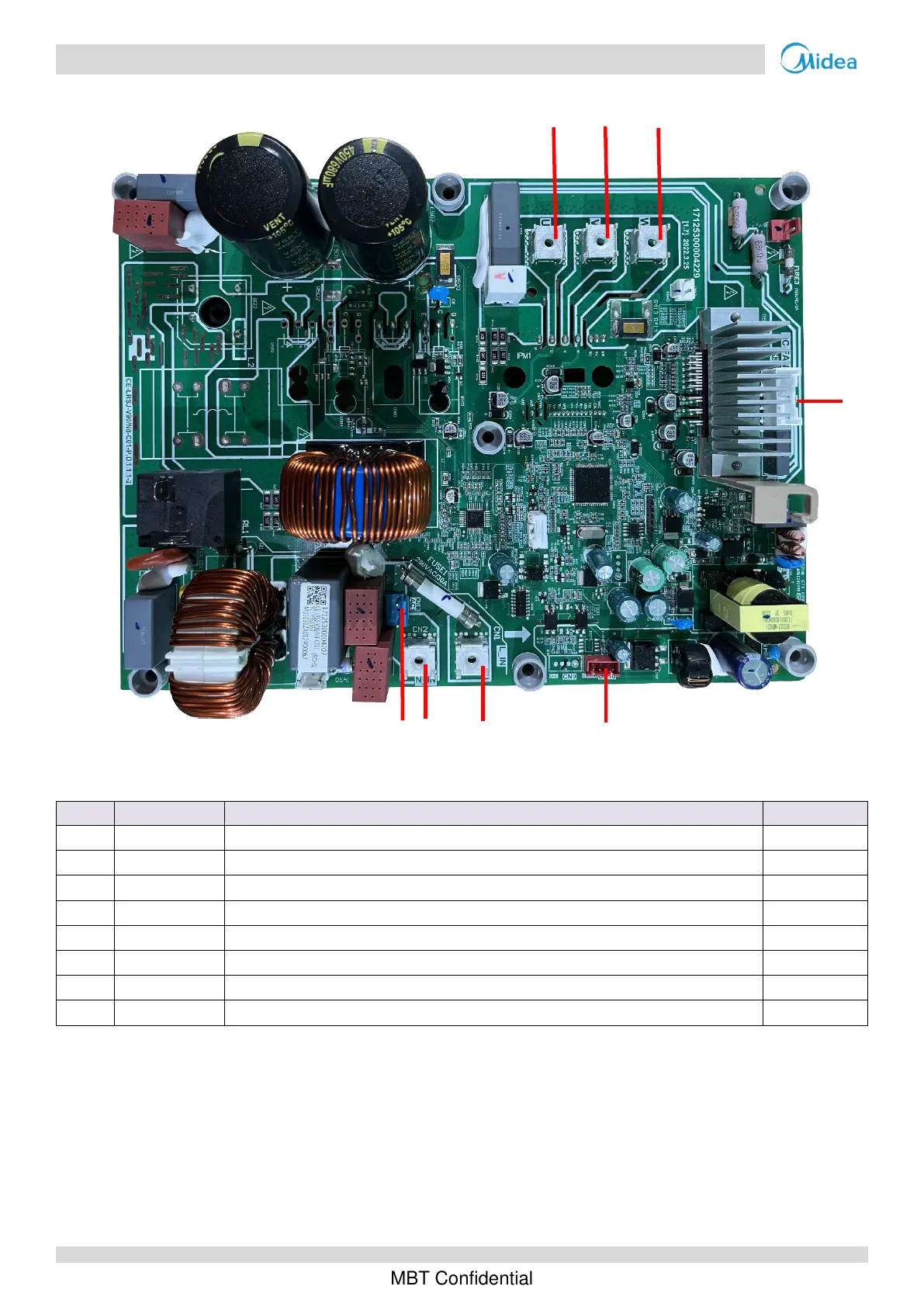

Inverter module PCB
1 2 3
18
17
16
15
4
8 7 6 5
Label
Port
Content
Voltage(V)
1
U
Compressor connection port U
380VAC
2
V
Compressor connection port V
380VAC
3
W
Compressor connection port W
380VAC
4
CN32
Port for fan
380VAC
5
CN10
Port for communication with main control board
12VDC
6
CN1
Input port L for rectifier bridge
220VAC
7
CN2
Input port N for rectifier bridge
220VAC
8
CN13
Port for power supply
220VAC
