Part 6 – Parts Replacement
5 Inverter module PCB

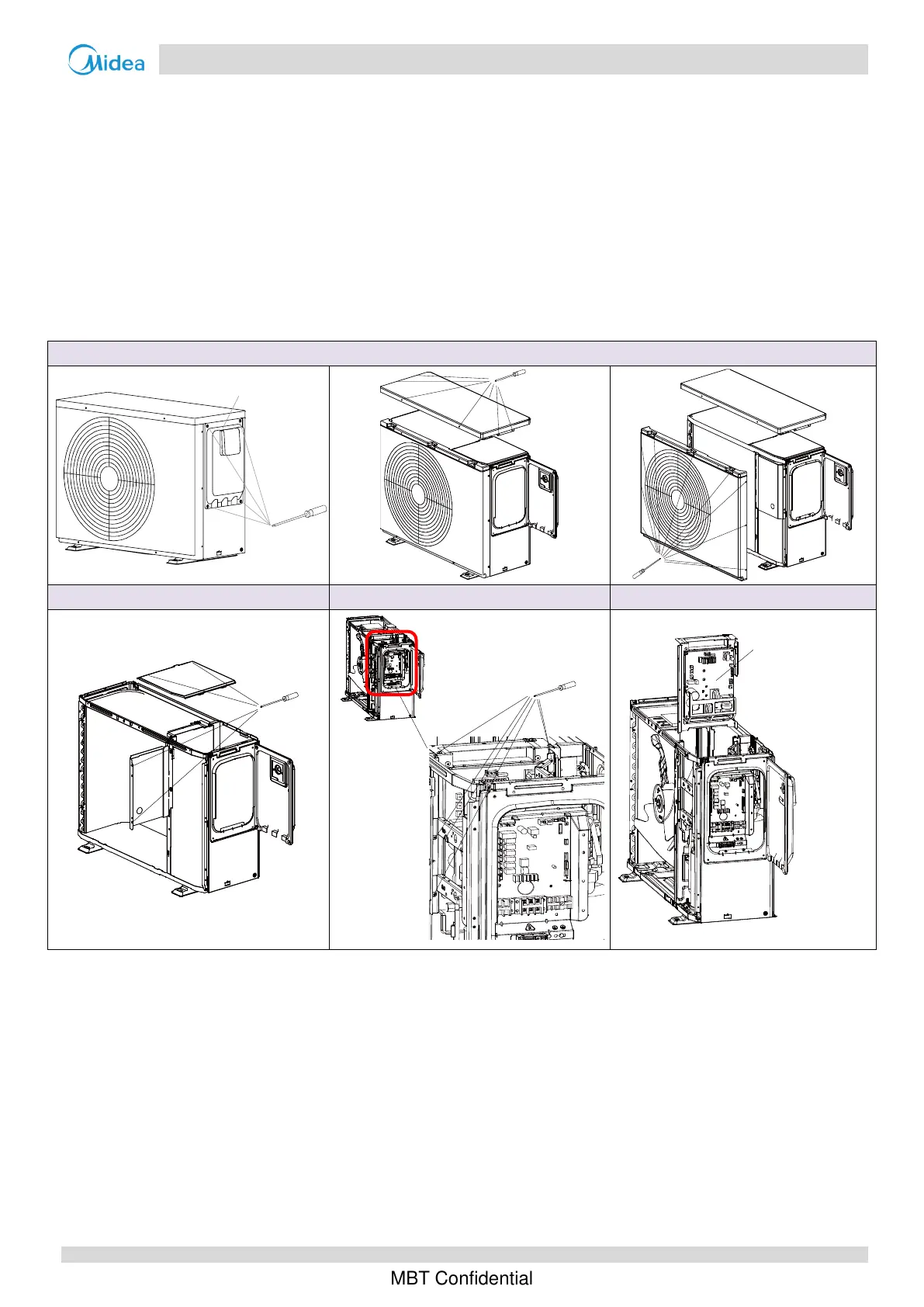

5.1 Remove the component
Isolate the main power supply, and prevent from accidental reconnection.
Remove the panels(a)
Remove the connecting cables if necessary
Remove the retaining screws(b)
Pull the inverter module PCB and mounting plate out from the top(c)
Remove the retaining screws on the board.
Separate the inverter module PCB and mounting plate
a
a
b
c
5.2 Install the component
Replace the new inverter module PCB in the installation position and install the screws.
Connecting all the cables.
Install the inverter module PCB and mounting plate from the top.
Install the panels.
Junction box
Remove the connecting
wires before taking it out if
necessary
Inverter module PCB
