Part 6 – Parts Replacement
1 Wired controller
1.1 Remove the component
Isolate the main power supply, and prevent from accidental reconnection.

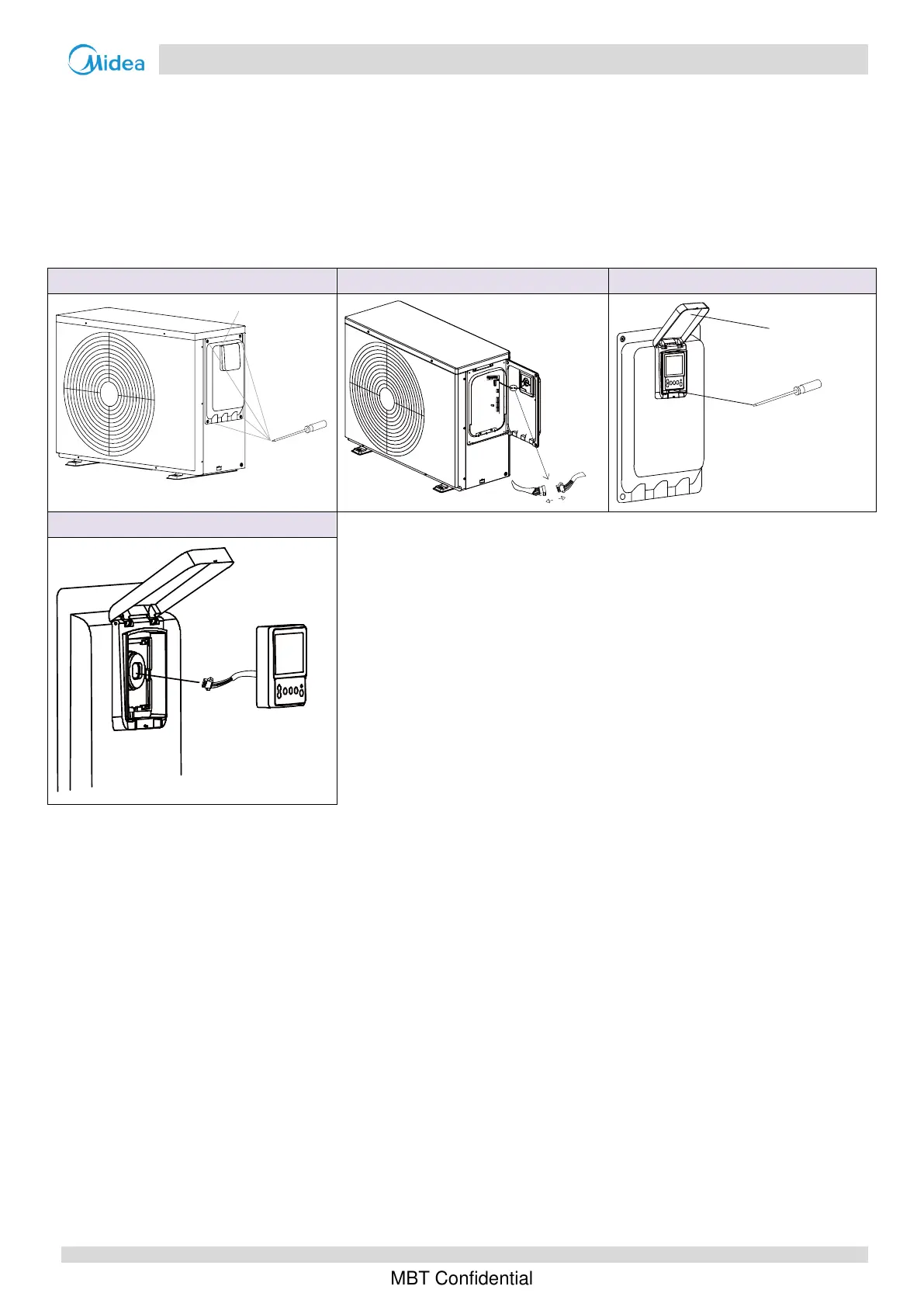

Remove the screws of the junction box(a)
Disconnect the connection wire(b)
Open the cover of the protect box and use a flat-head screwdriver to pry it from the bottom of the controller(c)
Take out the controller(d)
a
b
c
d
1.2 Install the component
Pass the connecting wire through the hole in the protecting box.
Fix the controller and connect the wire
Install the panels
Junction box
Protect box
Use a flat-head
screwdriver to pry
from the bottom
