Midea LSBLG365/MCFN - Midea Chiller System Schematic Diagrams

Flooded type water cooled screw chiller (PCB Control) MCAC-CTSM-2012-11
12

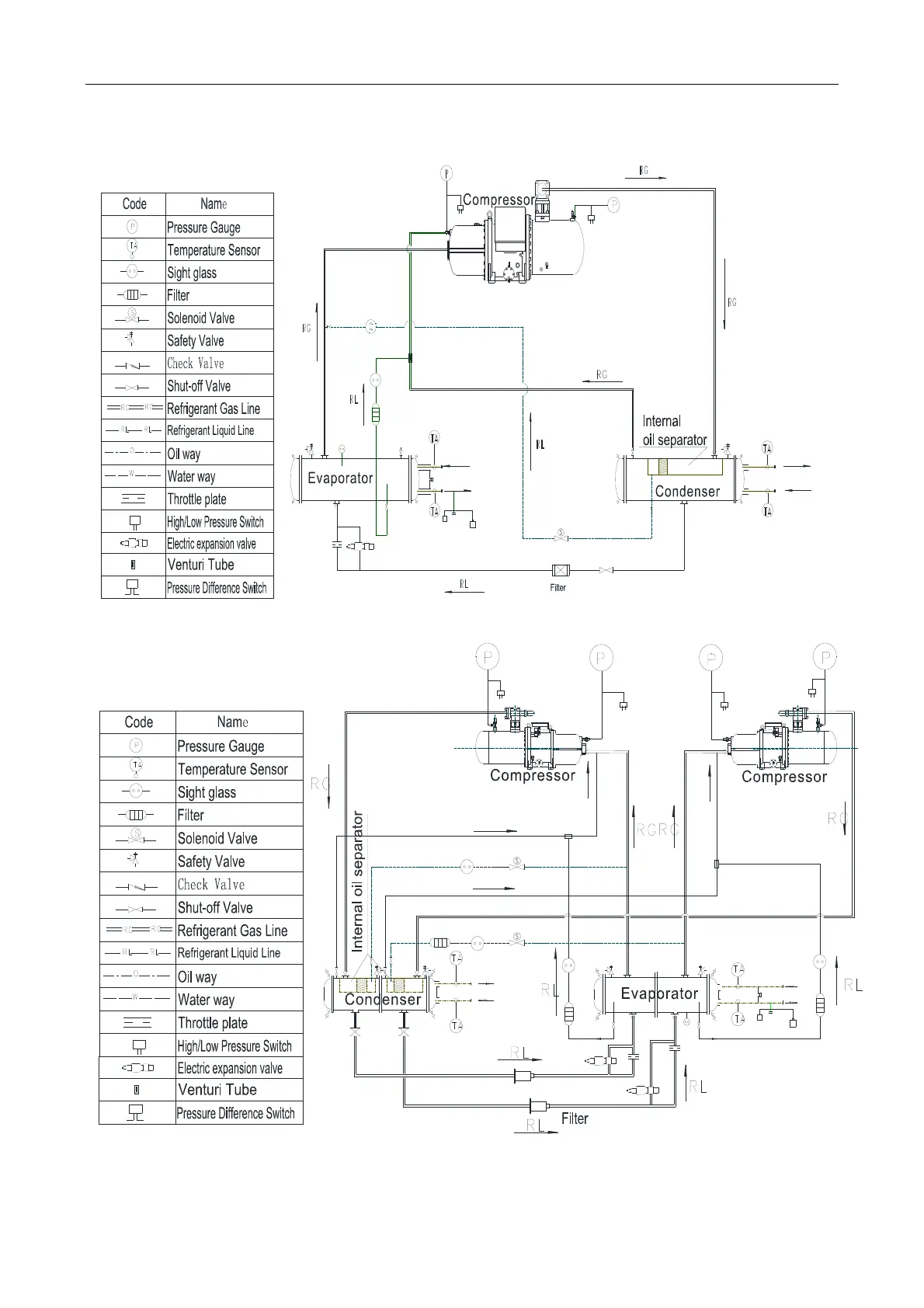

7. System Schematic Diagram
For single head unit (LSBLG365~750/MCFN)
For dual head unit (LSBLG820~1500/MCFN)
