Midea LSBLG365/MCFN

Flooded type water cooled screw chiller (PCB Control) MCAC-CTSM-2012-11
13

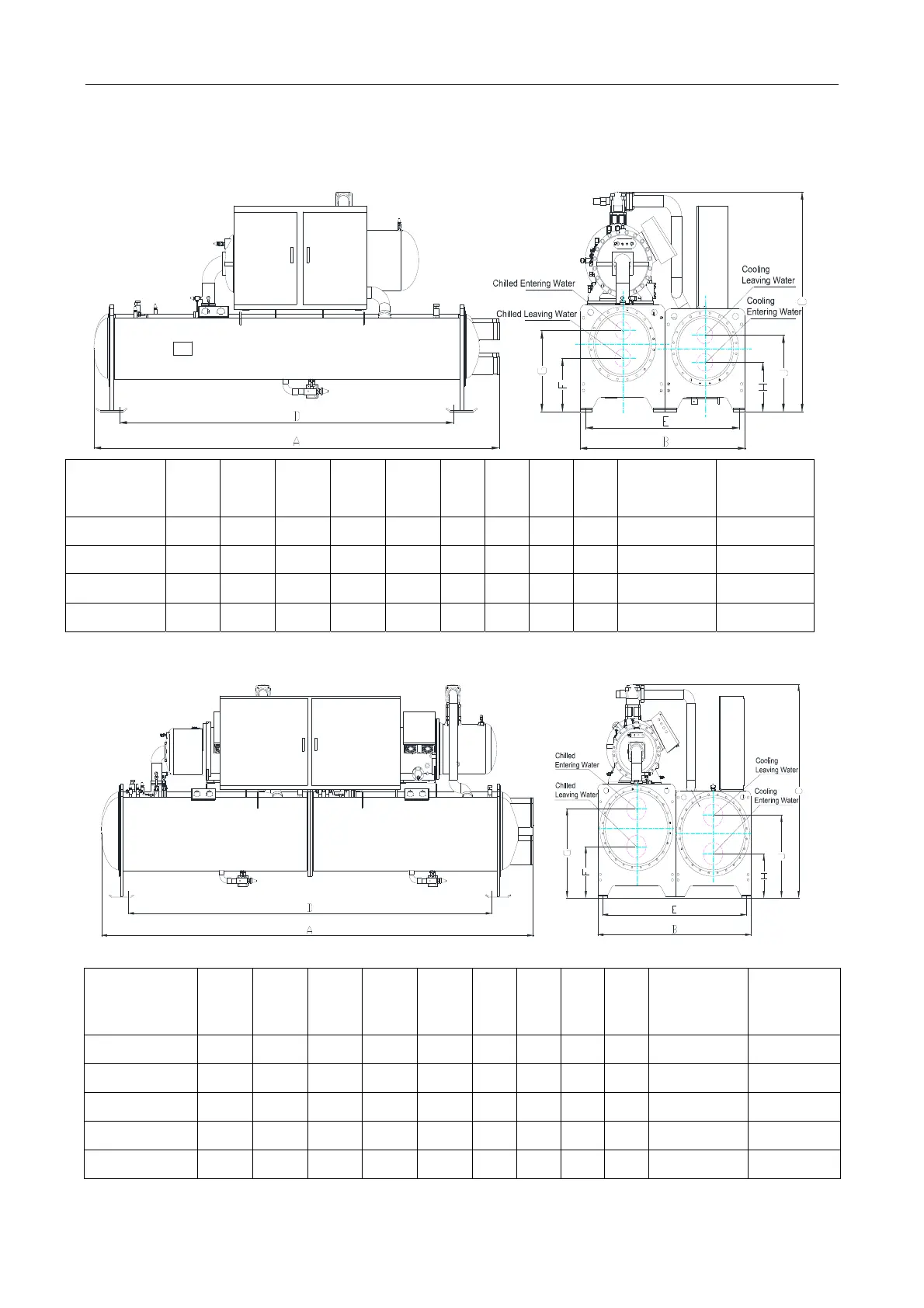

8. Outline Dimension
Single head:
Model A B C D E F G H J
Cooling
water
Inlet/outlet
Chilled
water
Inlet/outlet
365/MCFN 3500 1400 1750 2850 1300 380 640 350 610 DN125
DN125
465/MCFN 3500 1400 1800 2850 1300 380 640 350 610 DN125
DN125
560/MCFN 3600 1500 2000 2855 1320 500 780 380 640 DN150
DN150
750/MCFN 3600 1500 2000 2855 1320 500 780 380 640
DN150 DN150
Dual heads:
Model A B C D E F G H J
Cooling
water
Inlet/outlet
Chilled
water
Inlet/outlet
825/MCFN 4500 1600 1900 3855 1400 470 730 430 730 DN150
DN150
925/MCFN 4500 1600 1900 3855 1400 470 730 430 730 DN150
DN150
1120/MCFN 4600 1700 2100 3855 1500 440 740 390 690
DN200 DN200
1230/MCFN 4600 1700 2100 3855 1500 440 740 390 690
DN200 DN200
1500/MCFN 4600 1700 2100 3860 1520 460 800 410 750
DN200 DN200
