4. Vibration Isolators
Put the absorbers under unit saddles before final positioned the unit. The quantity of absorber used
for each unit is always decided by the elasticity or durometer value of the absorber. Below please
refer to the typical isolation pad and vibration isolator for selection.

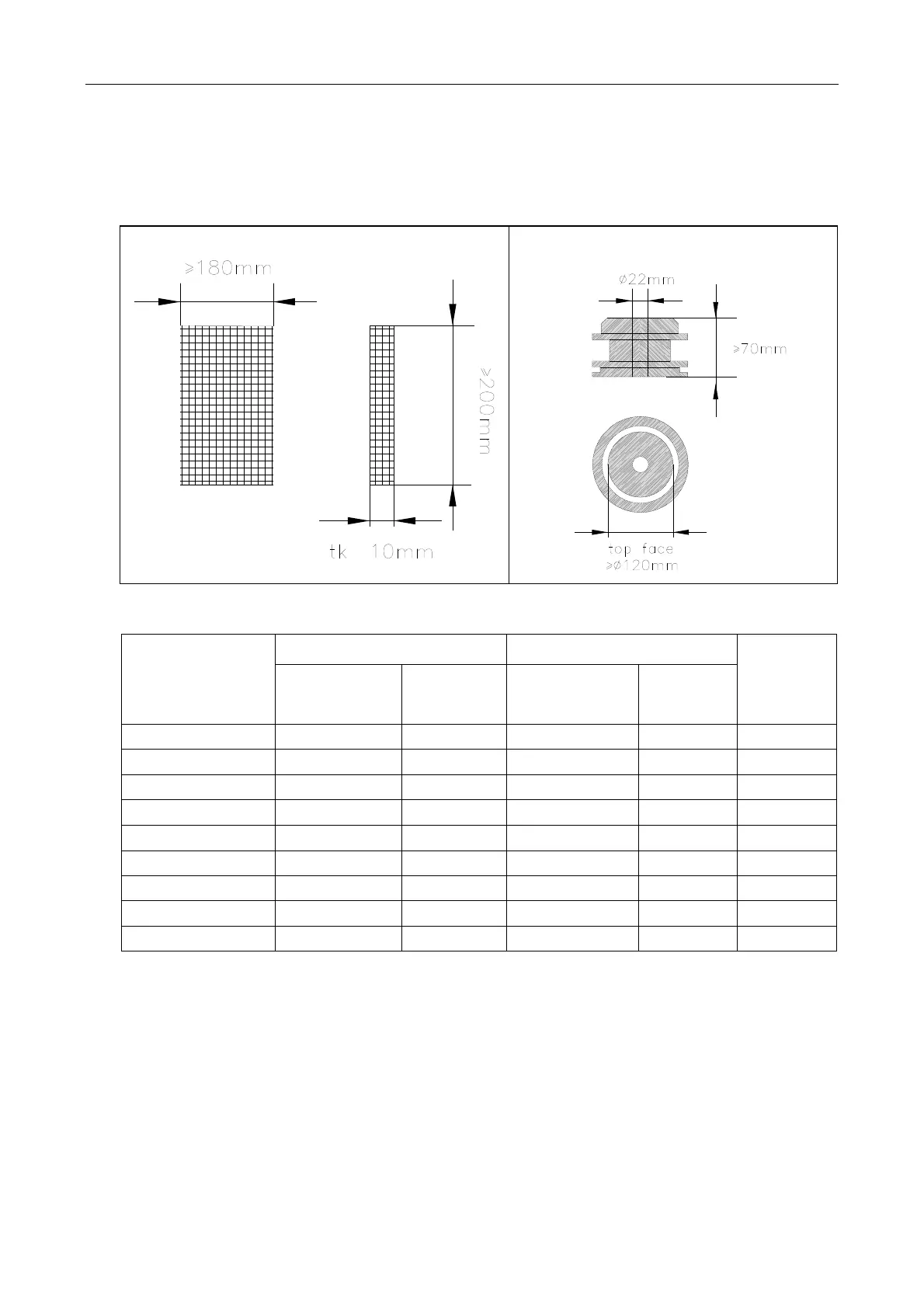

Typical isolation pad Typical vibration Isolator
≥
Expected load bearing value listed below:
Model
Isolation pad Vibration Isolator
Running
Weight (kg)
Minimum load
bearing (kg/EA)
Minimum
Quantity
Minimum load
bearing (kg/EA)
Quantity
LSBLG 365/MCFN 900 4 900 4 3300
LSBLG 465/MCFN 1000 4 1000 4 3600
LSBLG 560/MCFN 1200 4 1200 4 4200
LSBLG 750/MCFN 1400 4 1400 4 4500
LSBLG 825/MCFN 1800 4 1800 4 6000
LSBLG 925/MCFN 1800 4 1800 4 6500
LSBLG 1120/MCFN 2000 4 2000 4 7300
LSBLG1230/MCFN 2200 4 2200 4 7600
LSBLG 1500/MCFN 2200 4 2200 4 8000
Note:
(1) Pads have to extend the full length of the saddle when isolation pad be used.
(2) Level the unit to within 5mm over through it’s length and width after absorbers installed.
