Midea LSBLG365/MCFN

Flooded type water cooled screw chiller (PCB Control) MCAC-CTSM-2012-11
17
the unit in balance. Install a shockproof foundation when necessary.
4) Vibration isolators are recommended for all roof mounted installations or wherever vibration
transmission is a consideration. Neoprene Isolation is optional, it is recommended for normal
installations and provides good performance in most applications for the least cost. Spring
isolator is level adjustable, spring and cage type isolators for mounting under the unit base rails.
1” nominal deflection may vary slightly by application.

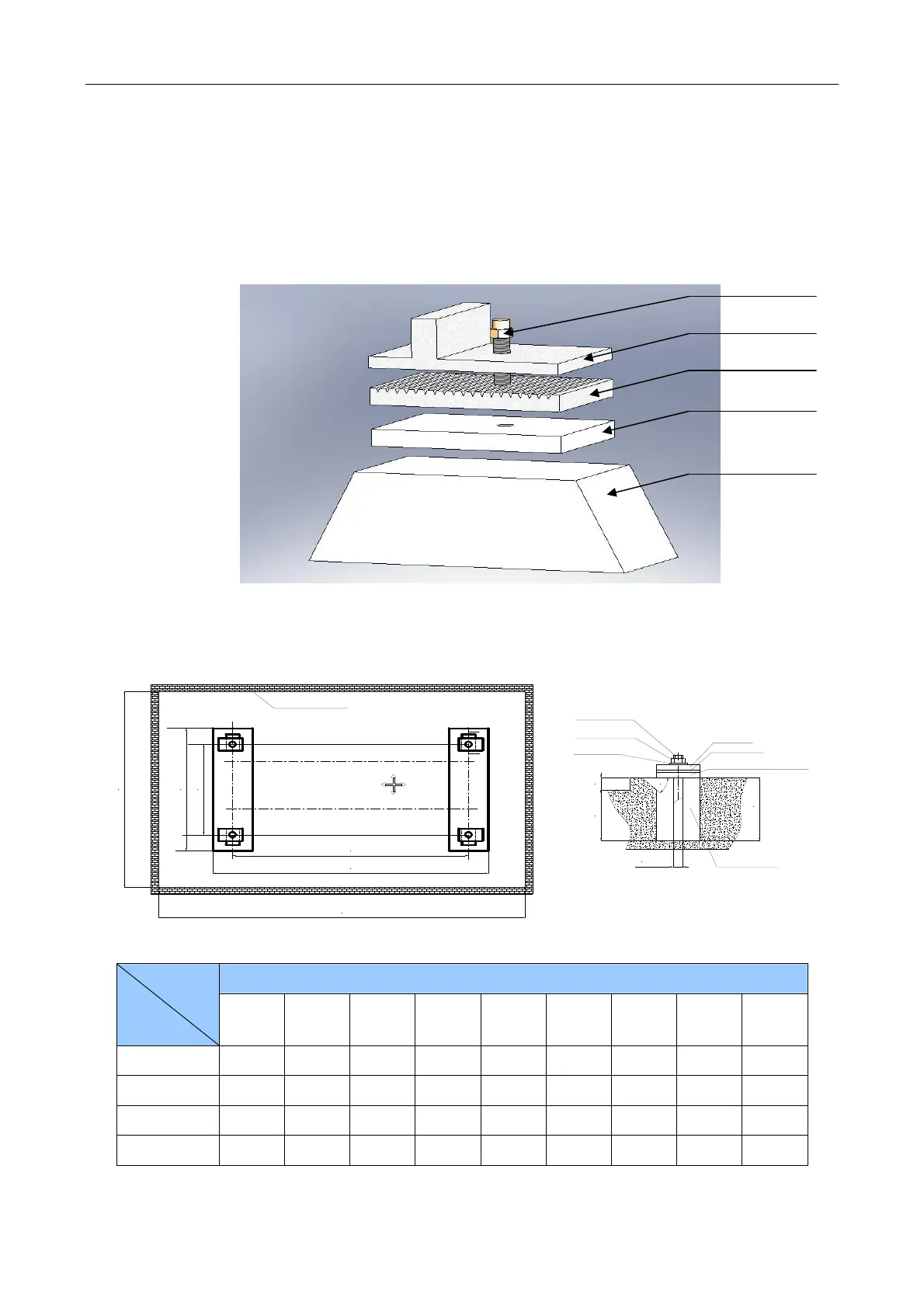

Typical Isolation:
Foundation Dimensions
D
E+500
E
Evap Centre Line
Cond Centre Line
A
A
A-A
Rubber Pad
(δ 15) 200X200
C h ille r Leg
Steel Base Plate ( δ 10) 200X150
Provided by user
Anchor Bolt M20X400
Provided by user
Nut M 20
Provided by user
Gasket 200
Provided by user
100
300
4
5
°
150X150
400
Grout concrete
after ch iller in p la ce
D+500
F
B
RL
Front side of chiller
A
B
Drain ditch
Foundation Bolt Installation Dimension Table
Model
Dimension
LSBLG**/MCF Flooded Screw Water Cooled Chiller
365 465 560 750 825 925 1120 1230 1500
A(mm)
3490 3490 3490 3490 4490 4490 4490 4490 4490
B(mm)
1950 1950 2050 2050 1950 1950 2100 2100 2100
D(mm)
2790 2790 2790 2790 3790 3790 3790 3790 3790
E(mm)
1250 1250 1350 1350 1250 1250 1400 1400 1400
Anchor Bolt
Chiller Leg
Rubbe
r
Pad
Steel Base Plate
Concrete Base
