Flooded type water cooled screw chiller (PCB Control) MCAC-CTSM-2012-11
16
copper pipes or exchanging pipes, there should be enough space reserved( for single
compressor unit, it should be at least 3.5m, for dual compressor unit, it should be 5m), and the
other end of the unit should have at least 2.0m space, use the hole on door or other holes with
appropriate position; there should have the space of 0.7m in front of the unit (the side faces to
the electric cabinet ) for operation; the space in front and back of the unit should not less than
0.6m .
2) Do not install the unit at the place exposed to sunlight or other heat sources.
3) Near the power supply where it is convenient for wiring.
4) The floor is solid enough and the location should not easily bring about resonance or noise.
5) Put the unit indoors which should be well-ventilated with low humidity and little dust.

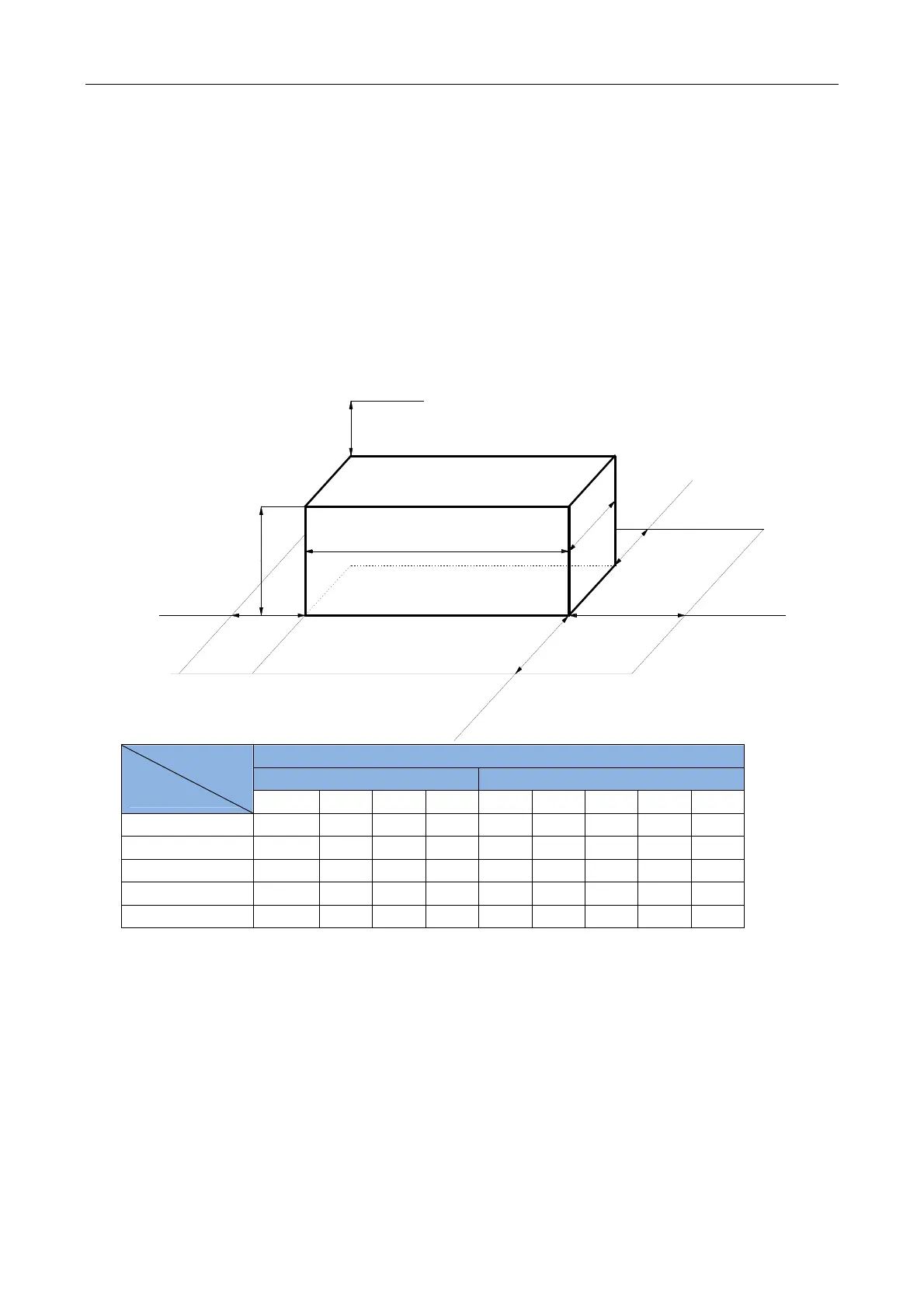

Height
Length
Width
Recommended
clearance D
Maintenance
clearance F
Rec
o
m
m
ended
clearance E
R
ec
o
m
me
n
d
e
d
clea
ra
n
c
e
G
Recommended
clearance H
Front of the chiller
Model
Dimensions
LSBLG/MCFN R134a, FLOODED TYPE
Single head Dual heads
365 465 560 750 825 925 1120 1230 1500
D(mm) 600 600 600 600 600 600 600 600 600
E(mm) 600 600 600 600 600 600 600 600 600
F(mm) 2000 2000 2000 2000 5000 5000 5000 5000 5000
G(mm) 700 700 700 700 700 700 700 700 700
H(mm) 3500 3500 3500 3500 2000 2000 2000 2000 2000
3. Installation Foundation
1) Please take into account the construction of installation foundation. Attention should be
especially paid to the intensity of the floor and noise elimination when installing the unit in
interlayer or on the top floor. It is suggested to consult the building designer before installation.
2) For convenient drainage, gutter way should be made around the basement to ensure the
drainage unblocked.
3) To eliminate the vibration and noise, put an absorber between the unit and basement and keep
To Next Page
