Midea LSBLG365/MCFN

Flooded type water cooled screw chiller (PCB Control) MCAC-CTSM-2012-11
24
ELECTRI CAL CONTROL
POWER SUPPLY
Remote Start Remote Stop
1# Alarm
2#Alarm

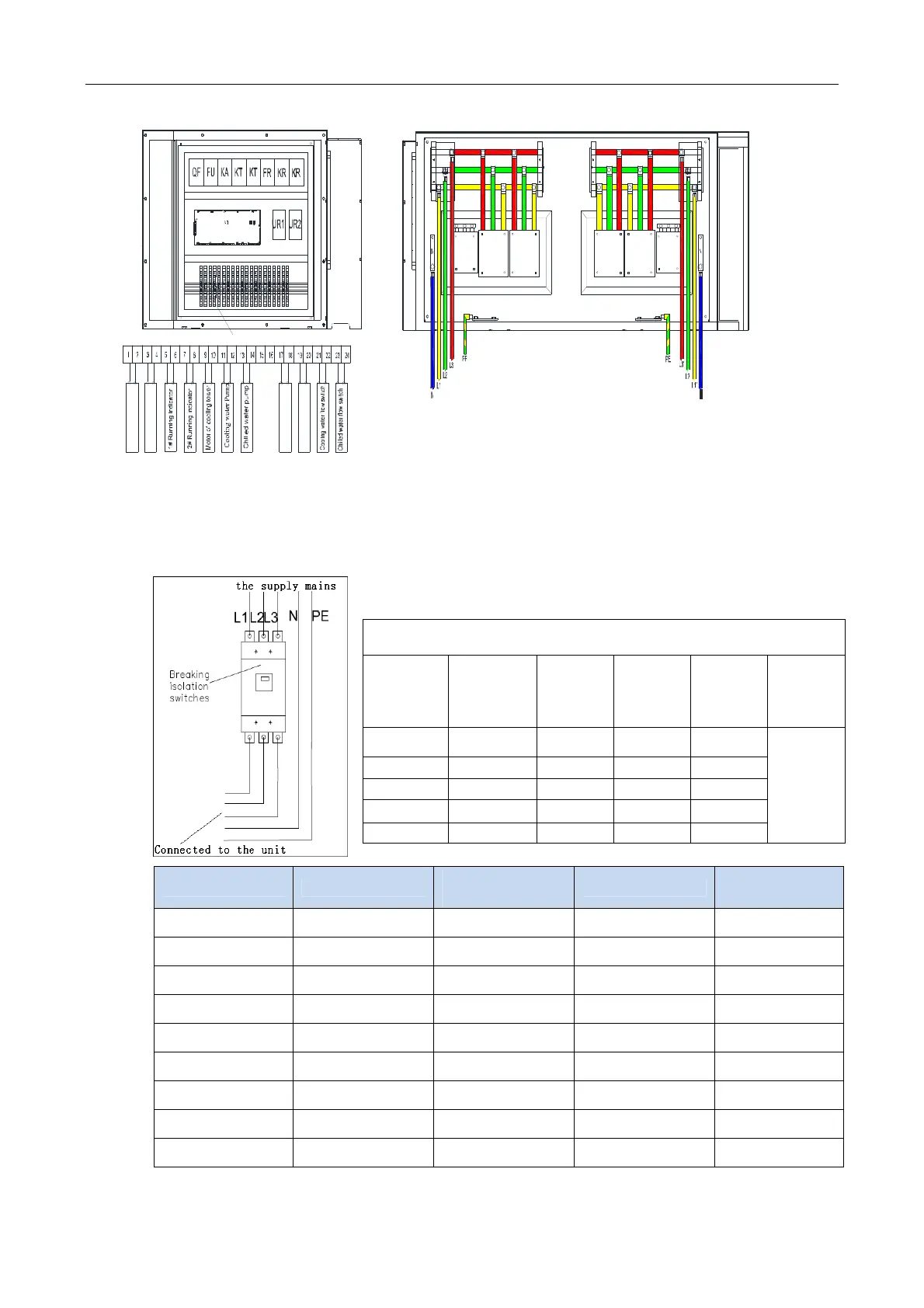

[Diagram for External Wiring of LSBLG825~1500/MCFN Unit]
(4) Breaking isolation switches should be added between the power cord of users and the unit. The
capacities of the breaking isolation switches recommended are as follows.
Unit Model Rated Current /A
Max running
current(A)
Breaker size (A)
Recommended
Wire Size
365/MCFN
106 113 136
BVR50
465/MCFN
133 143 145
BVR70
560/MCFN
162 174 209
BVR95
750/MCFN
208 224 268
BVR120
825/MCFN
253 271 163×2
2*BVR70
925/MCFN
266 286 145×2
2*BVR70
1120/MCFN
324 348 209×2
2*BVR95
1230/MCFN
359 385 231×2
2*BVR95
1500/MCFN
417 462 277×2
2*BVR120
BVR：Copper core PVC insulated soft wire
Domestic
model
Conductor
material
Insulator
material
Nominal
section
area
(MM ²)
UL model Note
BVR70 Cu PVC 70 2/0
The
electric
cable
must be
copper
core.
BVR95 Cu PVC 95 4/0
BVR120 Cu PVC 120 250
BVR150 Cu PVC 150 300
BVR185 Cu PVC 185 400
