Aqua Tempo Super II
201709 7
Part 2 - Component Layout and
Refrigerant Circuits

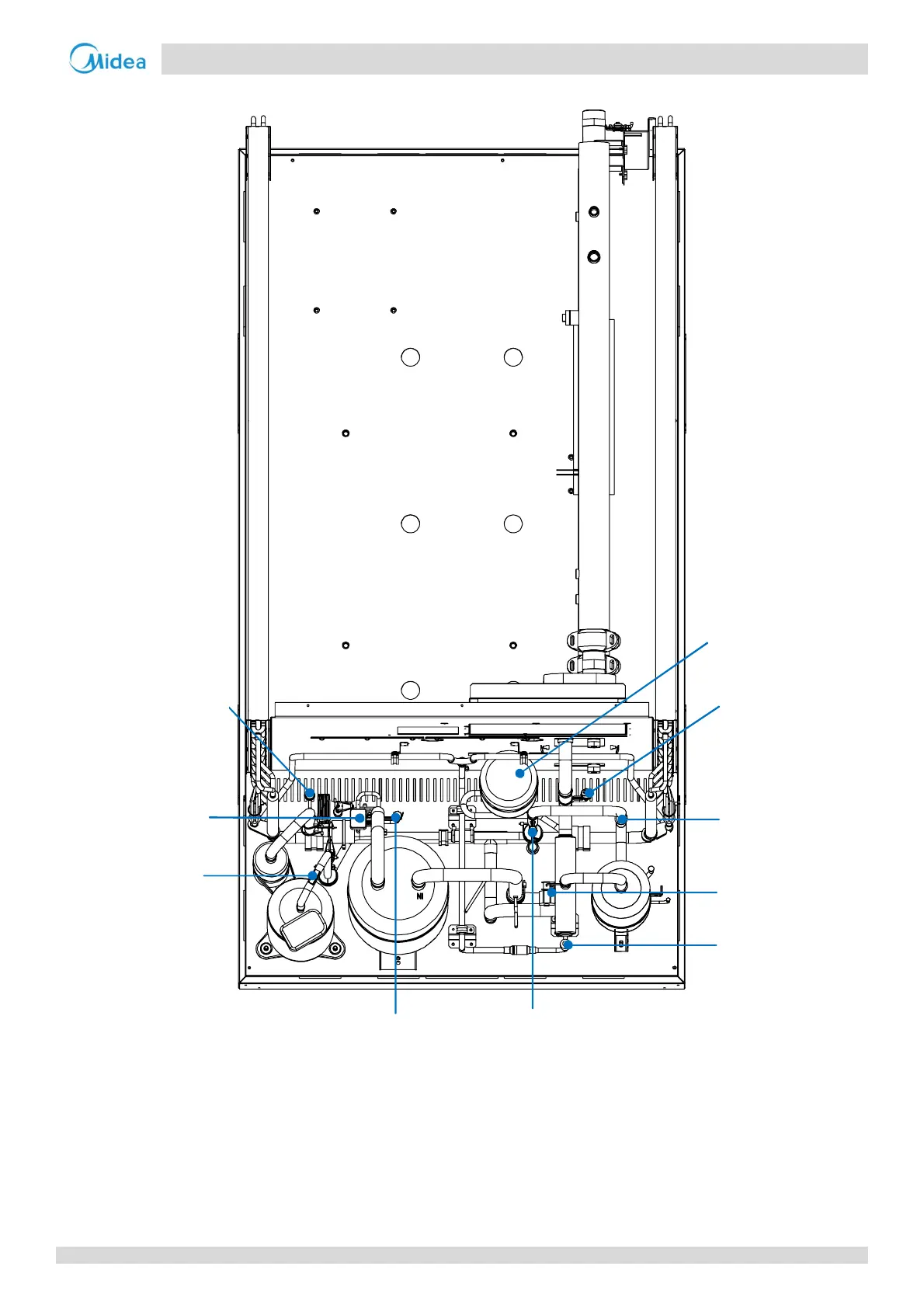

Figure 2-1.3: MC-SU30-RN1L top view
Low pressure
switch
Solenoid valve
SV4
High pressure
sensor
Four-way valve
High pressure
switch
Electronic
expansion valve
Discharge
temperature
switch
High pressure
gauge point
Low pressure
gauge point
Accumulator
