Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－ 38 －

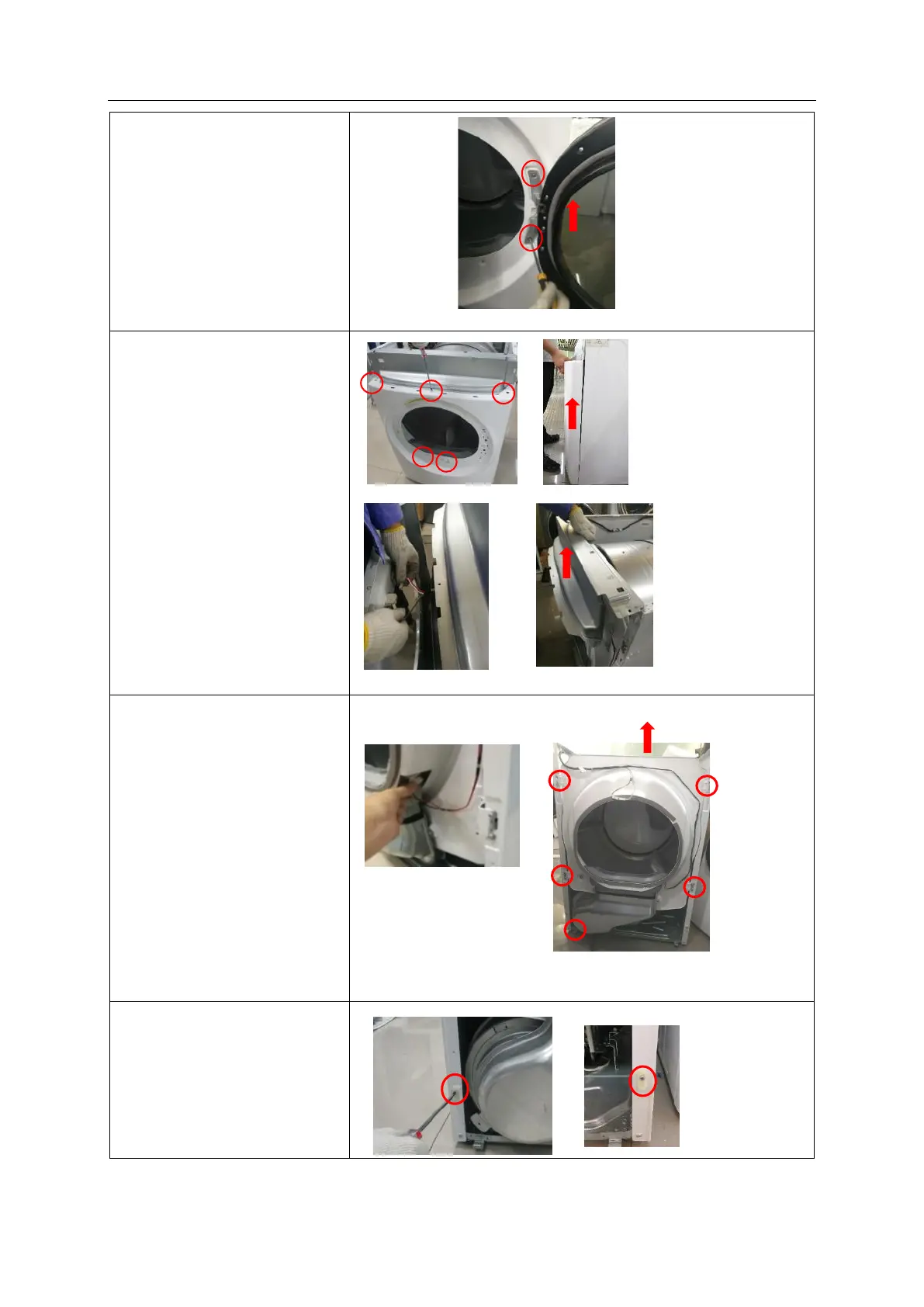

7. Remove the door
subassembly
7.1 Remove 2 screws on
the door hinge and take
down the door assy.
8. Remove the front panel
assembly and front top rail
8.1 Remove 5 screws that
is used to fix the front
panel assembly;
8.2 Take down the front
panel;
8.3 Pull out the terminals
connecting to the door
switch.
8.4 Take down the front top
rail.
9. Remove the front
support assembly and front
air flue assembly
9.1 Pull out the terminals
connecting to the front
support assy;
9.2 Remove the 5 screws
those are used to fix the
front support assy ;
9.3 Take down the front
support assy and front air
flue assy.
10. Remove 2 front panel
pins.
Take down the front support
To Next Page
