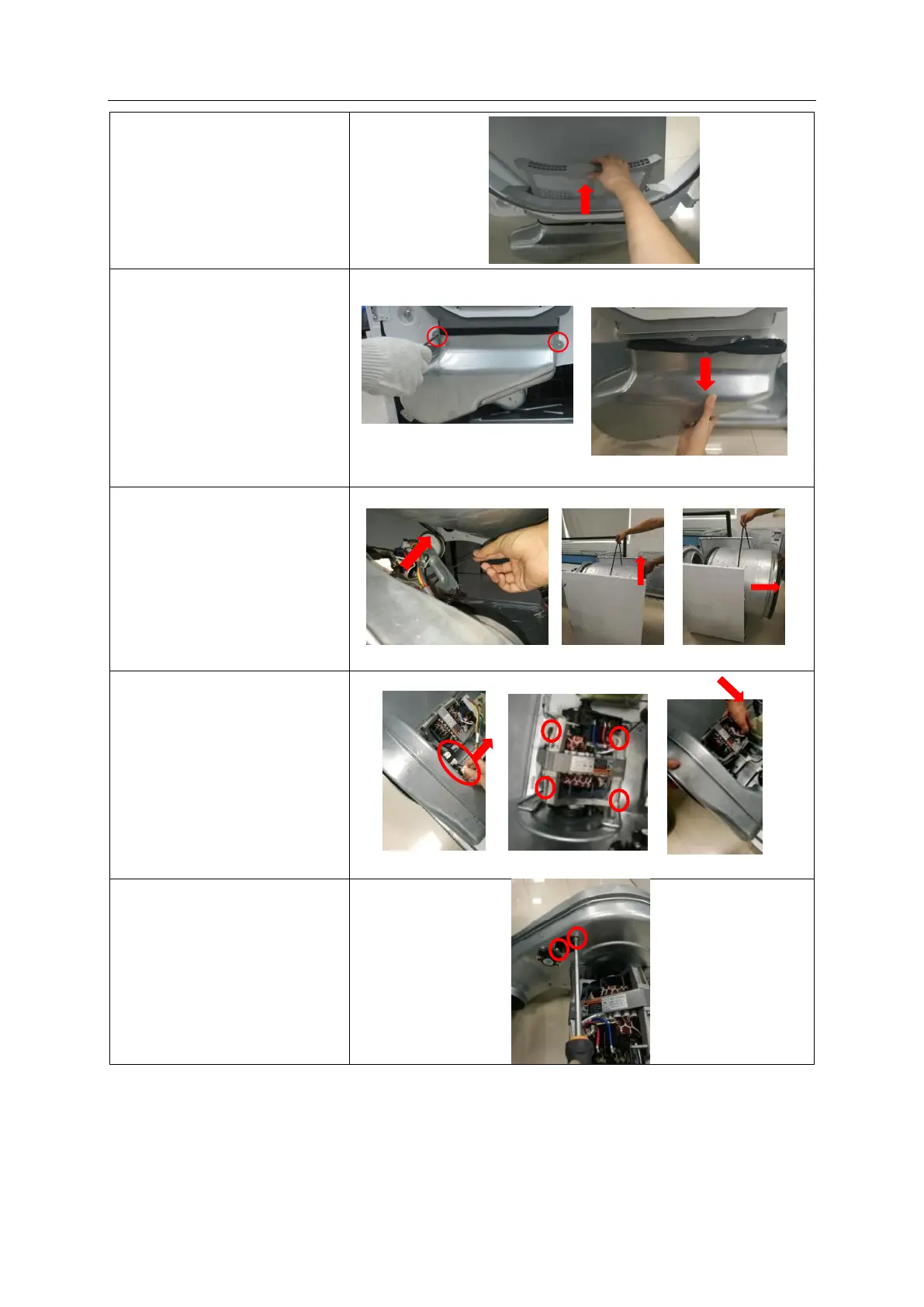

11. Take down the filter lint
12. Remove the front air
flue assy
12.1 Remove 2 screws
that is used to fix the air
flue assy;
12.2 Take down the air flue
assy.
13. Take down the tumble
assy
13.1 Take down the belt
from the Motor;
13.2 Hold the belt and take
down the tumble assy.
14. Remove the motor and
fan assy
14.1 Pull out 3 terminals;
14.2 Remove 4 screws fix
the motor;
14.3 Take down the motor
and fan assy.
15. Remove the
temperature sensor
①
②
③
①
②
③
①
②
