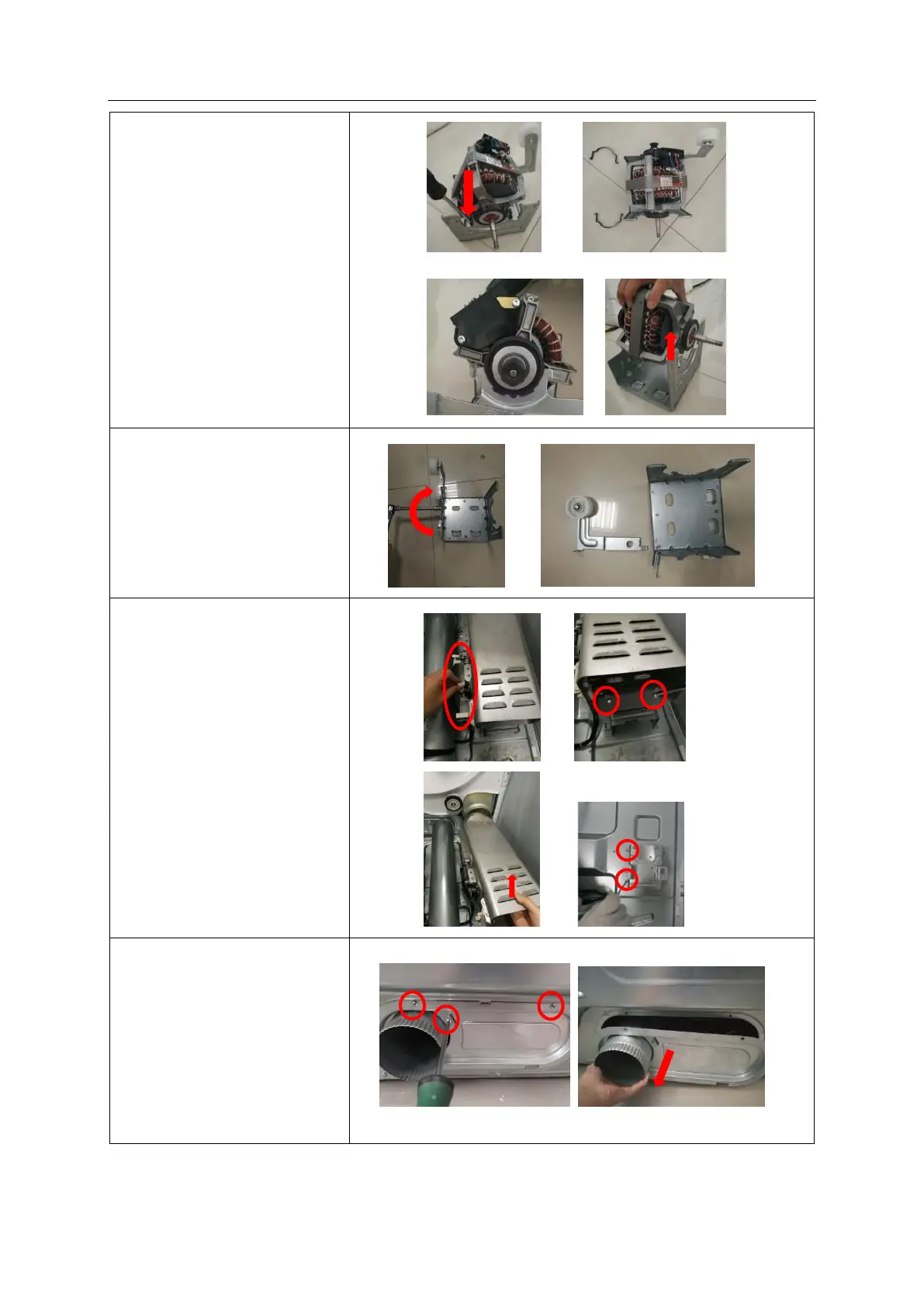

21. Remove the motor.
22. Use a 2/5” wrench to
remove the tensioner
pulley assembly.
23. Remove the heater
assy
23.1 Pull out all the
terminals;
23.2 Remove 2 screws
that is used to fix the
heater assy;
23.3 Take down the heater
assy;
23.4 Take down the heater
bracket.
24. Take down the back air
outlet
24.1 Remove 3 screws
that is used to fix the back
air outlet;
24.2 Pull out the rear vent
pipe.
①
②
③
④
①
②
③
④
①
②
