Service manual for Dryer Machine Midea America Company
-------------------------------------------------------------------------------------------------------------------------------------------------------
－ 45 －

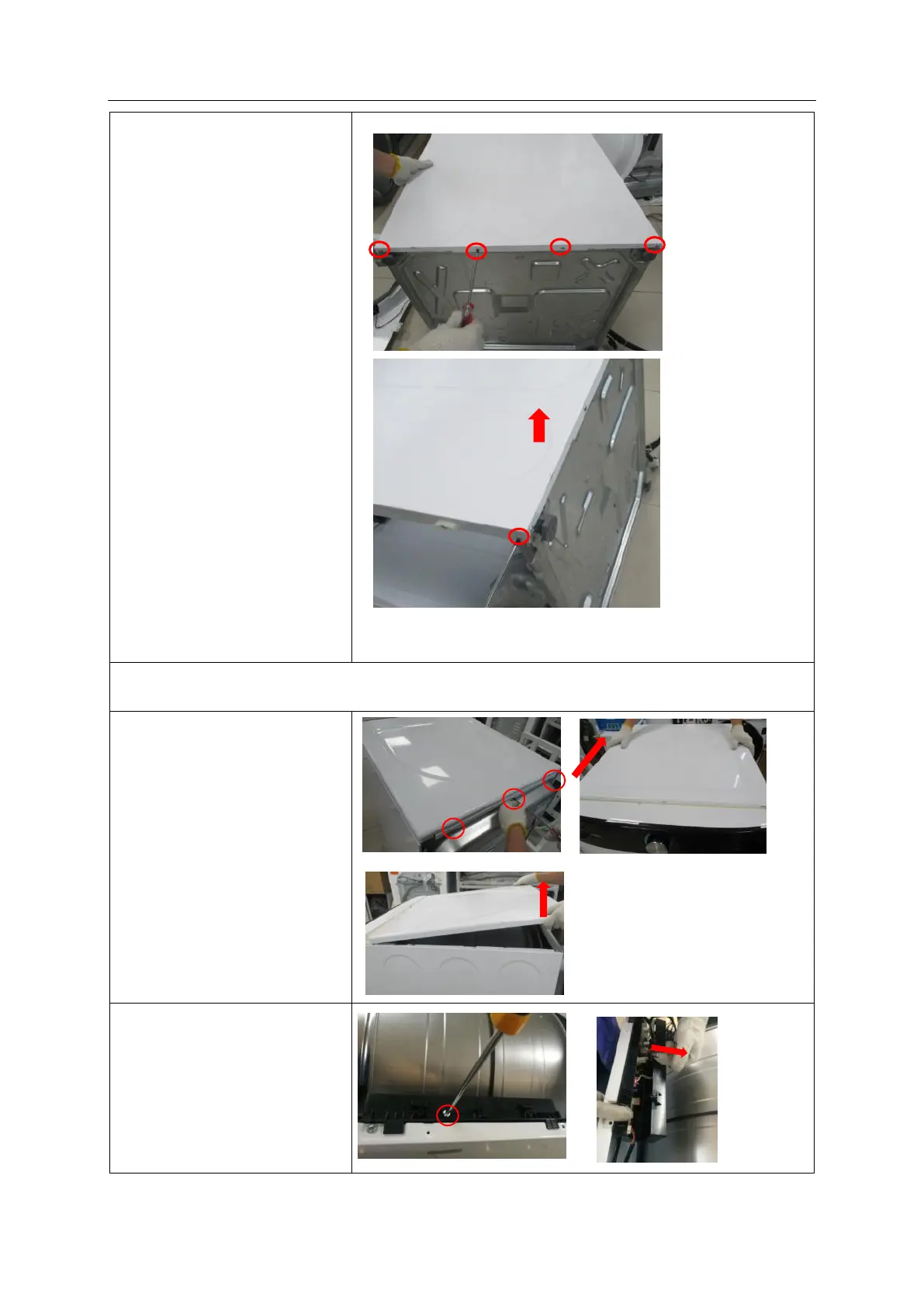

35. Remove the side plate
35.1 Remove 5 screws that
is used to fix the side plate;
35.2 Remove the side
plate.
35.3 Remove the other
side plate by step
35.1&35.2.
How to change the nozzle for LP (Gas model only)
1. Remove the top cover
plate
1.1 Remove the 3 screws
behind the top cover;
1.2 Push off the top cover
plate.
2.Remove the control
panel terminal
2.1 Remove 1 screw
that is used to fix the PCB
kit;
2.2 Open the PCB kit;
2.3 Pull out the terminal
