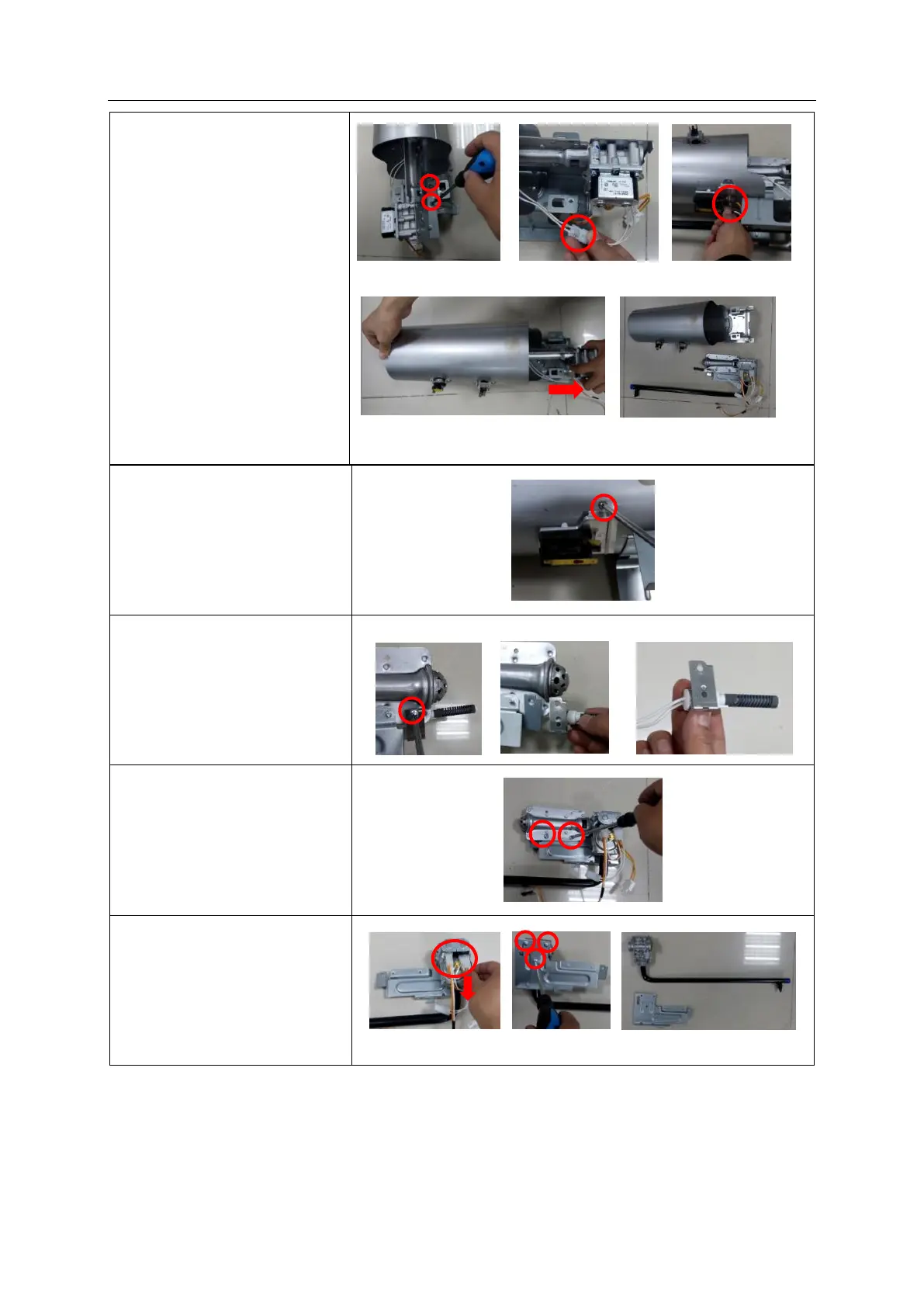

30. Disassemble the
burner assembly (Gas
model only)
30.1 Remove 2 screws
fixing the bracket;
30.2 Remove all terminals;
30.3 Pull the burner and
the gas valve assy
backwards, then lift it up.
Take care the ignitor.
31. Remove the screw to
take down the flame switch
(Gas model only)
32. Remove the screw to
take down the ignitor
(Gas model only)
33. Remove 2 screws to
take down the burner
(Gas model only)
34. Remove the gas valve
(Gas model only)
34.1 Remove 2 terminals;
34.2 Remove 3 screws;
34.3 Take down the
Bracket.
①
②
③
①
②
③
①
②
③
②
③
