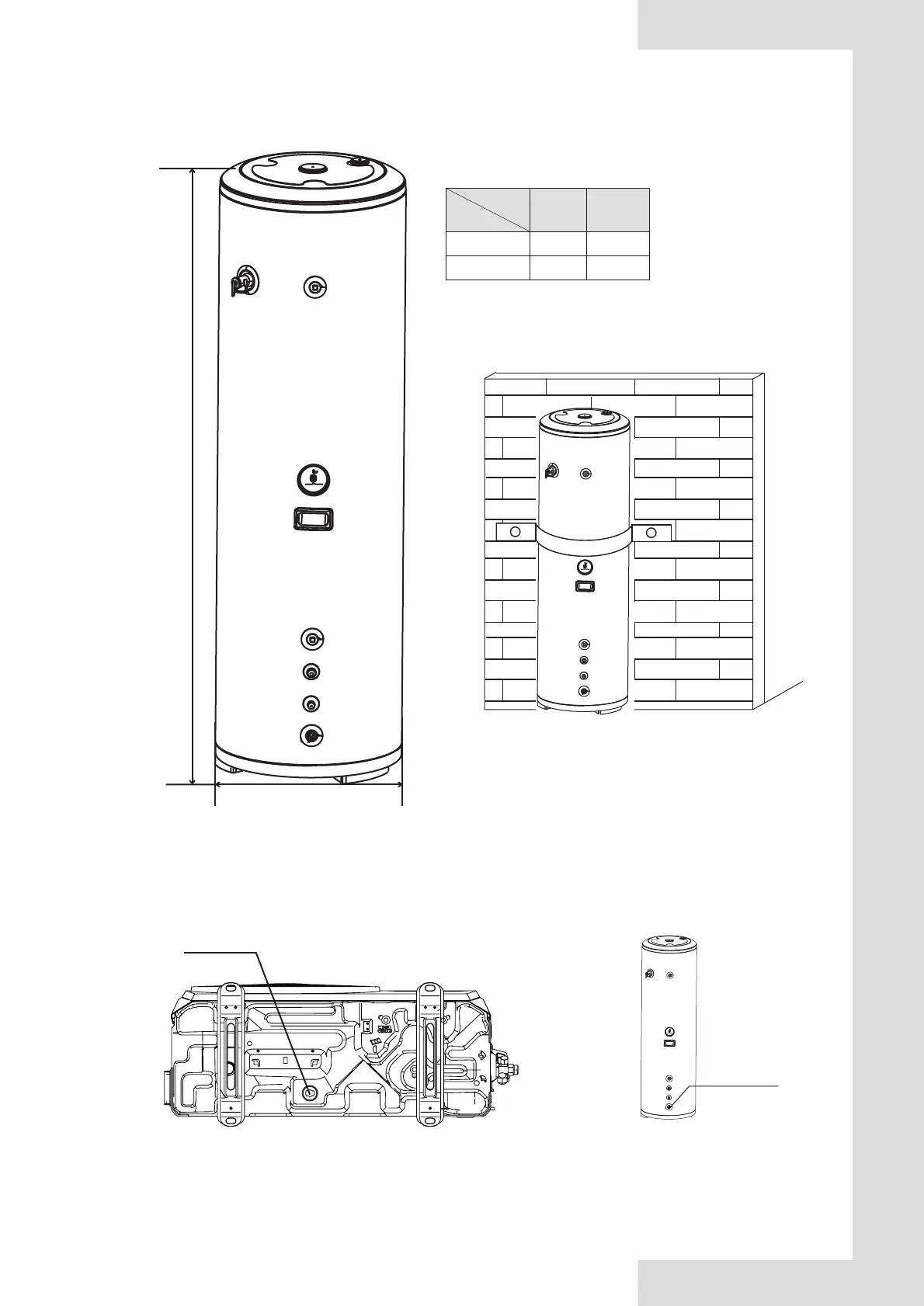

4.1.2 Water tank, see Fig. 4-4, Fig. 4-5 and Table 4-2. (Unit: mm)
4.2 Drain hole position
Fig. 4-4
H
A
Please install the water tank fixing strip as shown in
the figure to ensure that the water tank is stably fixed.
Fig. 4-5
Fig 4-6
Water outlet
connection
pipe/ Gasket
Fig 4-7
Drain outlet
Please use the Allen wrench to open the drain
valve to drain the water.If no water ows out, it
means that the draining is completed.
Table 4-2
Dimension
Model
A H
200L 505 1665
300L 580 1735
