• Ask your dealer or specialized person for moving, repair, and maintenance.

• Install it in the place without direct sunlight and other direct heat radiations. If it can’t be avoided, please add a cover

to prevent unit from direct sunlight.

• The ceiling is horizontal, and its structure can endure the weight of the indoor unit.

• Pleasermlyinstalltheunit,otherwiseitmaycauseabnormalnoiseandvibration.

• Removeobstaclesnearby,anarrowcirculationspacemayinuenceperformanceoftheunit.

• Install in the place that closes to water tank as far as possible, under the condition that the installation requirements

couldbesatised.

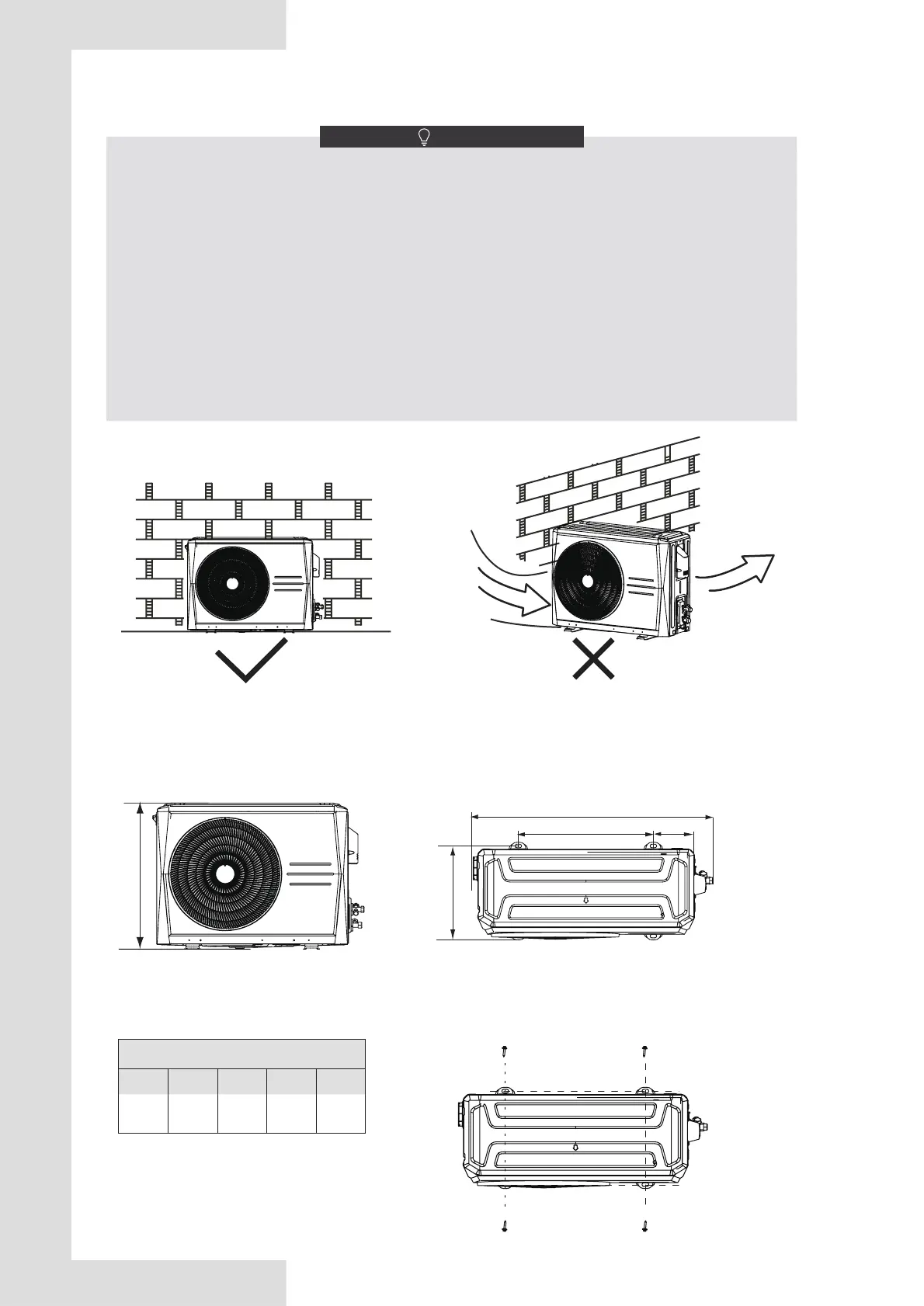

• When installing in the place that near to the sea and high place where strong wind blows, install the unit against a

walloruseaba󰀪ewhennecessarytoensuretheunitcouldrunnormally,seeFig 4-1. Especially in the place with

strong wind, pay attention not to let strong wind blow back to the unit.

• Ifinstalltheunitinabasement,insidetheroomorotherconnedspace,pleasepayattentiontoairdischargeand

air supply circulation around the unit and outside. Circulation air volume should not less than 1250m

/h.

NOTE

Fig. 4-1

Strong

wind

Fig. 4-2

4 INSTALLATION PROCEDURE

4.1Dimensionsketchandxedway

4.1.1 Outdoor unit, see Fig. 4-2, Fig. 4-3 and Table 4-1. (Unit: mm)

Fig. 4-

Pleasexthefourbasesoftheoutdoorunitontheat

ground with bolts.

Table 4-1

Dimension and mounting dimension

A B C D E

804 555 302 452 137
