Model MXT100

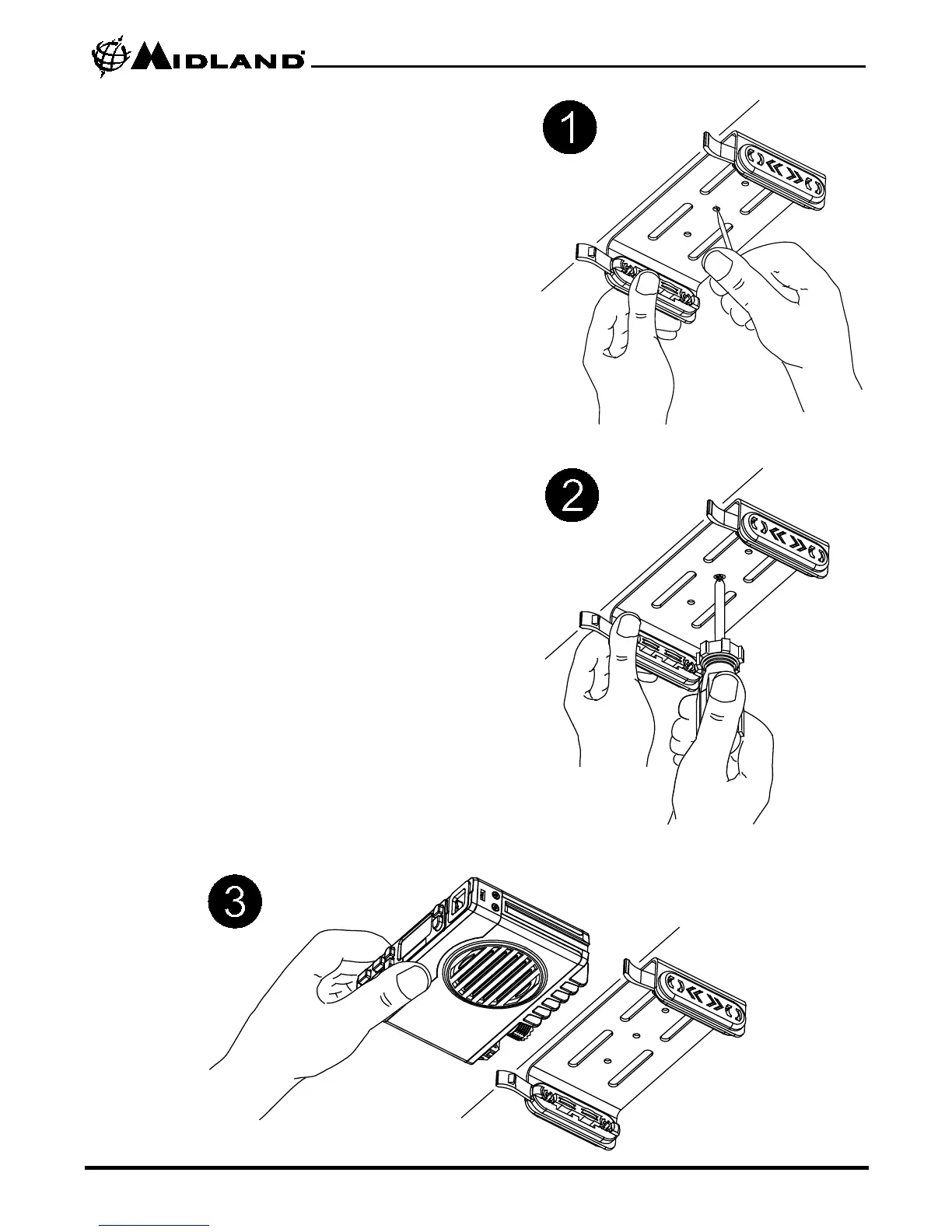

Installing the Mounting Bracket
1. Using the mounting bracket as a
template, mark the location of each
screw hole under the dash. Use a
nail or other sharp pointed object to
mark the hole locations.
Drill a 1/8” hole for each screw hole
in the mounting bracket.
2. Attach the bracket to the dash with
the Phillips head sheet metal screws
provided. Tighten the screws
securely. DO NOT OVER-TIGHTEN.
3. Slide the radio into the mounting
bracket. BE SURE the mounting
bracket retainers engage the slots in
the sides of the radio to prevent
movement while driving.
midlandusa.com Page 6
