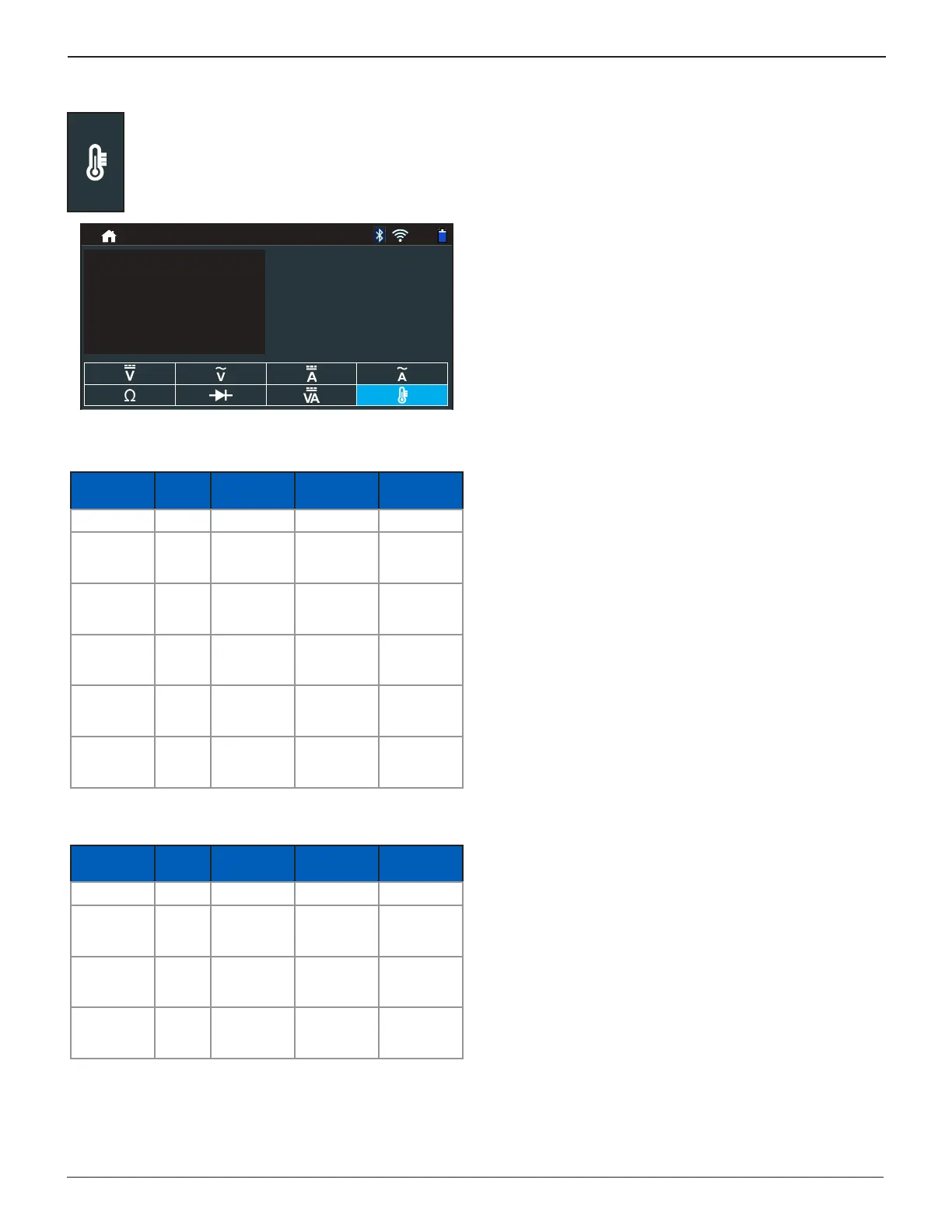

Chapter 5: DMMDSS-5000
Temperature
The IR temperature sensor measures the ambient
surface temperature within a range of –20 to 200 °F.
The tool can be used for checking the transmission
for overheating, and the temperature levels of the
heater and air conditioner.

Temperature
93%
72 F
Meter Specications
Meter Range Resolution Accuracy
Overload
Protection
Vdc 0–60 V 0.01 V 0.05% + 2 120 Vrms
Vac 0–24
Vac
rms
0.01 Vac 0.1% + 3 120 Vrms
Adc 0–70 A 0.01 A ± 3% of
reading ±
1A
1000 Arms
0–700
A
0.1 A ± 3% of
reading ±
1A
1000 Arms
Aac 0–70 A 0.01 A ± 3% of
reading ±
1A
1000 Arms
0–700
A
0.1A ± 3% of
reading ±
1A
1000 Arms
Accuracies are specied from 2% to 100% of range.
Meter Range Resolution Accuracy
Overload
Protection
Ohm 0–60 V 0.01 V 0.05% + 2 120 Vrms
Continuity 0–24
Vac
rms
0.01 Vac 0.1% + 3 120 Vrms
Diode 0–70 A 0.01 A ± 3% of
reading ±
1A
1000 Arms
Temperature 0–700
A
0.1 A ± 3% of
reading ±
1A
1000 Arms
Accuracy specication dened as
± (n% reading + [count * resolution]) at 77 °F.
