Chapter 1: IntroductionDSS-5000

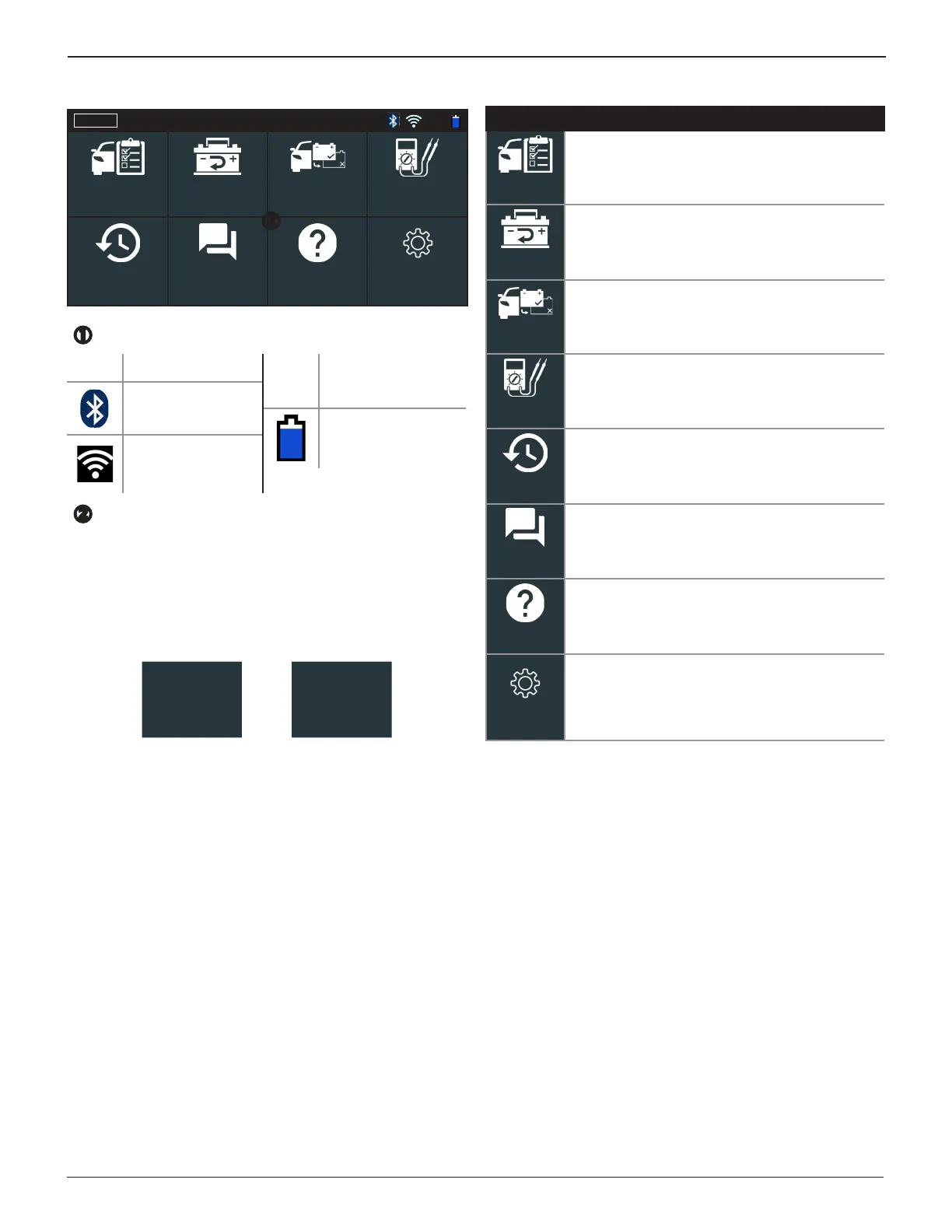

Main Menu
Log Out DSS-5000
93%
In Vehicle Test Out of Vehicle
Test
Digital
Messages
Support
Menu Bar
Log Out
Log out current user
93%
Controller internal
battery level
Bluetooth
connectivity status
Controller internal
battery status
WiFi signal strength
Main Menu Selection Area
Additional Screens
The dots at the bottom or side of a menu or results screen
indicate additional screens are available. Use your nger to
swipe horizontally left, right, up or down across the Controller
screen to view all of the results.
Screen 1
Screen 2
Screen 3
Screen 1
Screen 2
Swipe
Horizontally
Swipe
Vertically
Main Menu Icons
Icon Description
In Vehicle Test
Automates battery testing for quickly testing
vehicles using the fewest steps.
Out of Vehicle
Test
For testing out-of-vehicle customer batteries for
possible return.
For testing newly installed batteries in a
vehicle. Also includes vehicle electronics reset
information after battery installation.
Digital
The Digital Multimeter included DC Volts, AC Volts,
DC Amps, AC Amps, Ohms, Diode Drop, Amps
Volts, and battery temperature for troubleshooting
low voltage electrical circuits in a vehicle.
Access archived test histories or search test
history by VIN or by technician.
Messages
Displays alerts and notications for upcoming
tests and activities including scheduled tests,
tool software updates and maintenance
opportunities.
Support
Access the analyzer Self-Test and a digitized
version of the Instruction Manual that was shipped
with the analyzer.
Setup/adjust: WiFi, printer setup,
email settings,
user information, default language, display
and sound settings, BMIS information, shop
information, and connected devices. Also access
to tester software version information.
