31
Appendix B: Recommended Test ProcedureDSS-5000
The Conductance Proling™ technology determines battery
cranking and Reserve Capacity testing. This additional process,
can take up to 60 seconds to complete.
IMPORTANT: Always begin each test by connecting
the Tester Pod clamps to the battery being tested
. The
test begins as soon as the clamps are connected.
VIN Scanning
The DSS-5000 uses a camera built into the Controller handle to
scan the VIN of the vehicle being tested. This number is then
cross referenced with the original equipment manufacturer's
battery specications stored in the tester's database and
displayed on the Controller screen.

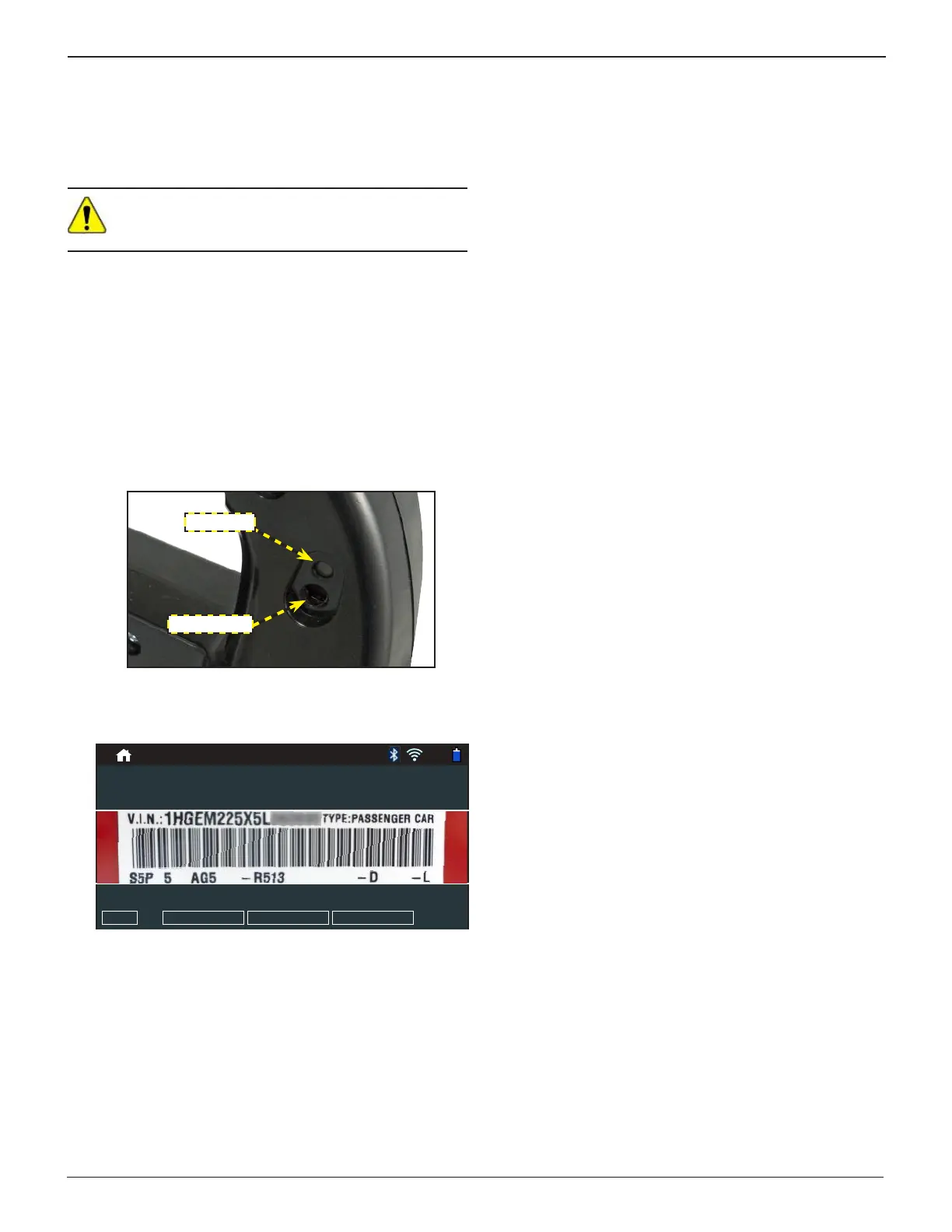

Scanning Tips
• Camera: Located in the upper left portion on the back of
the Controller handle.
Flashlight
VIN Camera
• Hold Steady: Hold Controller steady when scanning the
VIN barcode. This allows the user to clearly see the bar-
code and allows the camera to focus on it.
93%
Flashlight
Back
CVG Module
Yr/Make/Model
• Fill Viewnder: Make sure the entire barcode is visible.
Keeping the entire VIN barcode visible while slowly mov-
ing the camera closer or further away will help capture.
• Clean Barcode/Window: Surface dirt can interfere with
the scanning process. If necessary wipe the VIN barcode
with a cloth or your nger remove any surface dirt.
• Lighting/Glare: The built-in ashlight will automatically
turn on In low light situations. If the ashlight, or sunlight,
is shining directly onto the VIN barcode, try pivoting the
camera up or down slightly to reduce any glare.
Appendix B: Recommended Test Procedure
