6
Chapter 1: Introduction DSS-5000

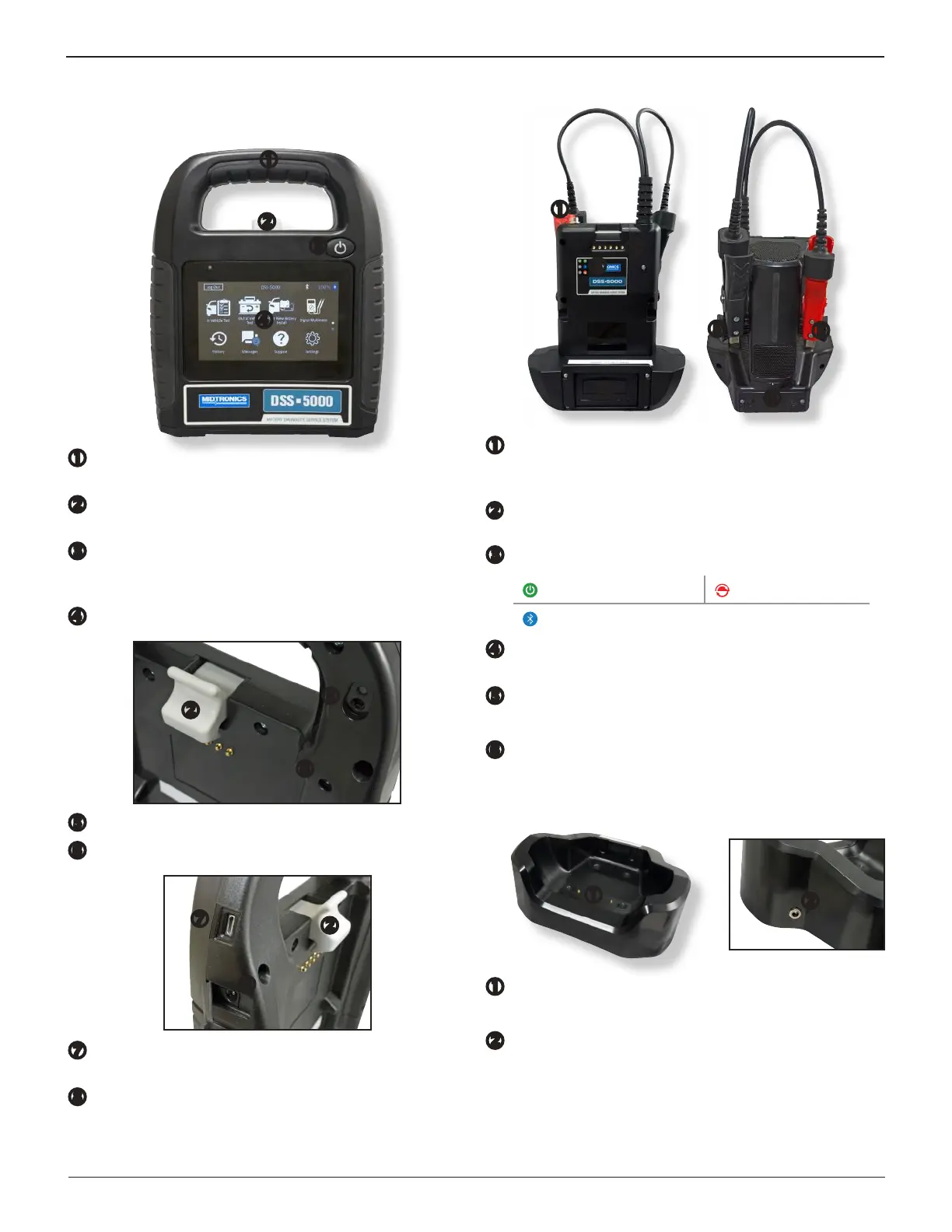

Tester Components
Controller
Carrying Handle: For carrying the Controller and Tester
Pod (when attached).
Controller Release Lever: Press to release the Controller
from the Tester Pod.
Power Button: Hold for 2 seconds to
turn the Controller
on and o independent of the Tester Pod. Flashes when
the Controller is being charged.
Touch Screen: Primary user interface.
Camera & Flashlight: For VIN scanning and identication.
Temperature Sensor: For measuring battery temperature.
Macro-USB Port: For updating and servicing the Control-
ler when a WiFi network is not available.
Power Supply Connection
Tester Pod
Accessory Connector (Optional): For connecting an
optional accessory (ex. Amp Clamp / DMM Cable) to the
Tester Pod.
Controller Charging Contacts: For charging and communi-
cating
with the Controller when mounted to the Tester Pod.
Status Indicator LEDs:
- Power is on - Clamps reversed
- Tester Pod is communicating with the Controller
Integrated Printer (Optional): For printing and sharing
test results.
Clamp Storage Mounts: Use to keep the test clamps
protected when the tester is not in use.
Tester Pod Internal Batteries
Charging Dock
Tester Pod Charging Contacts: For charging the Tester
Pod
Power Supply Connection
