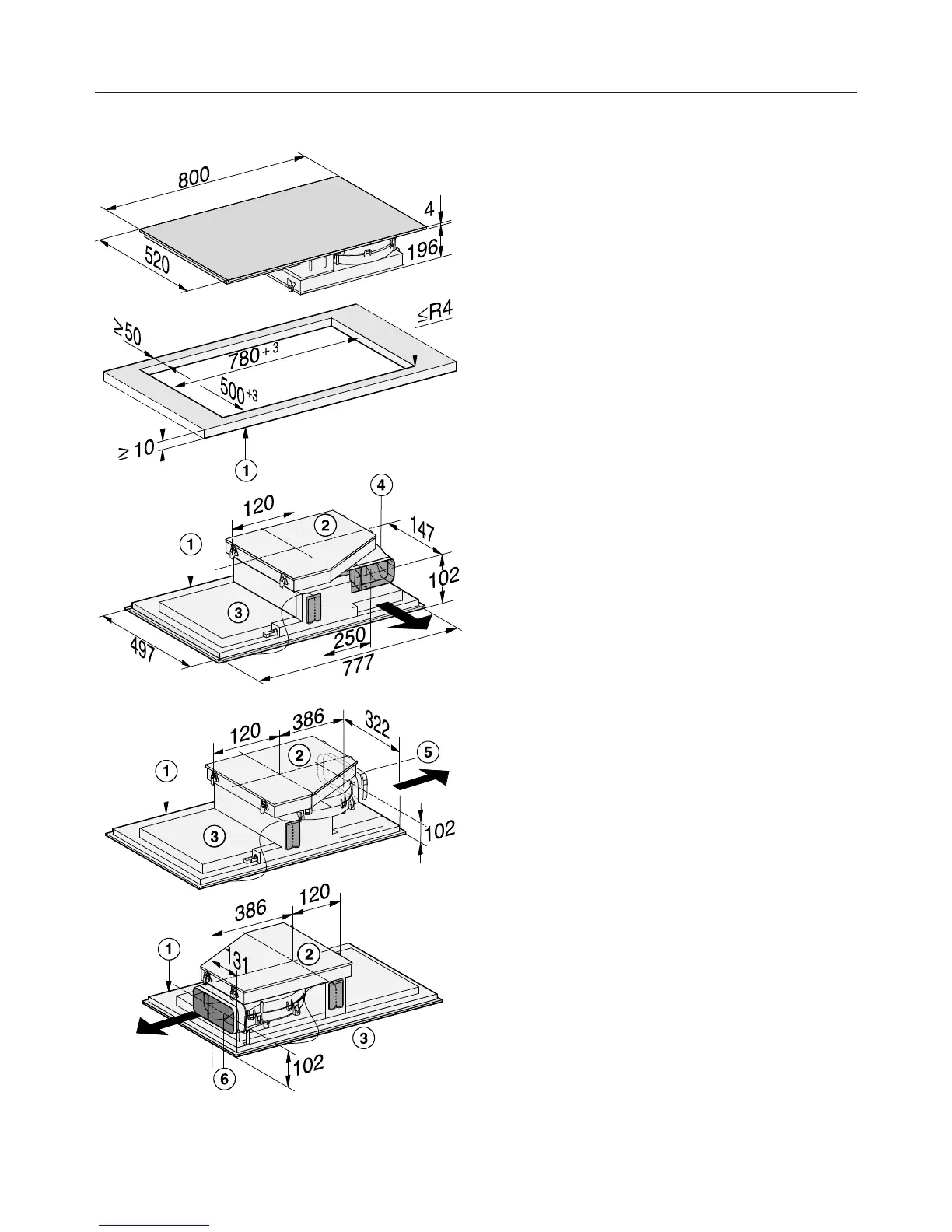

Installation dimensions– Surface-mounted
65
KMDA 7774 FL
a
Front
b
Removable drip tray
c
Mains connection box with mains
connection cable, L = 1440 mm
d
Air duct connection – at the back
(ex-works)
e
Air duct connection - on the right
(conversion required)
f
Air duct connection - on the left
(conversion required)
