Miele KMDA 7774 - Worktop Depth 600 MM

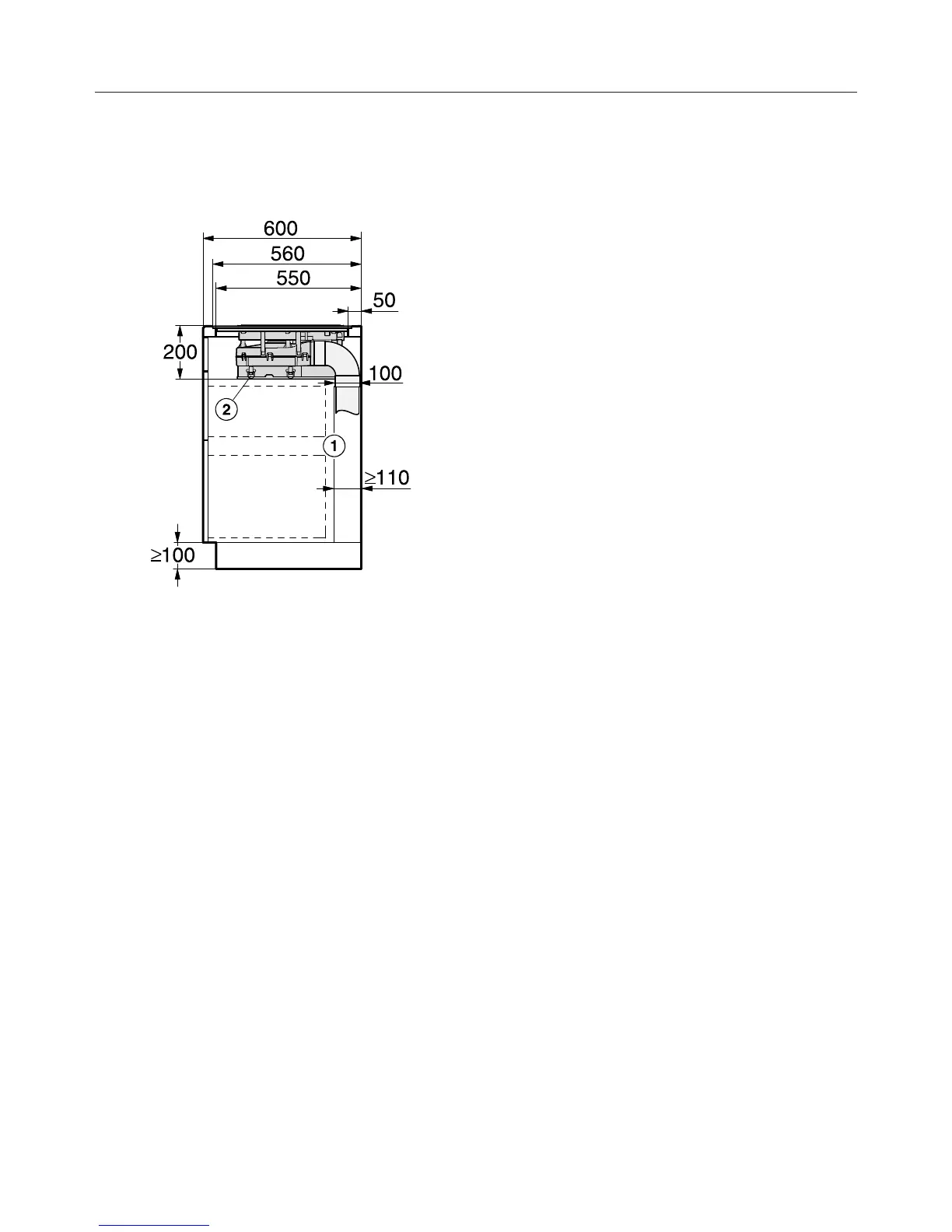

Installation dimensions–Flush
71
Worktop depth 600mm
KMDA 7774 FL
a
Housing unit back panel
The housing unit back panel must be
removable for service work. The
housing unit wall and an adjoining
room wall or furniture housing must
be at least 110mm apart to ensure
sufficient room for the ducting.
b
Drip tray
After installation the removable drip
tray must be accessible from below.
