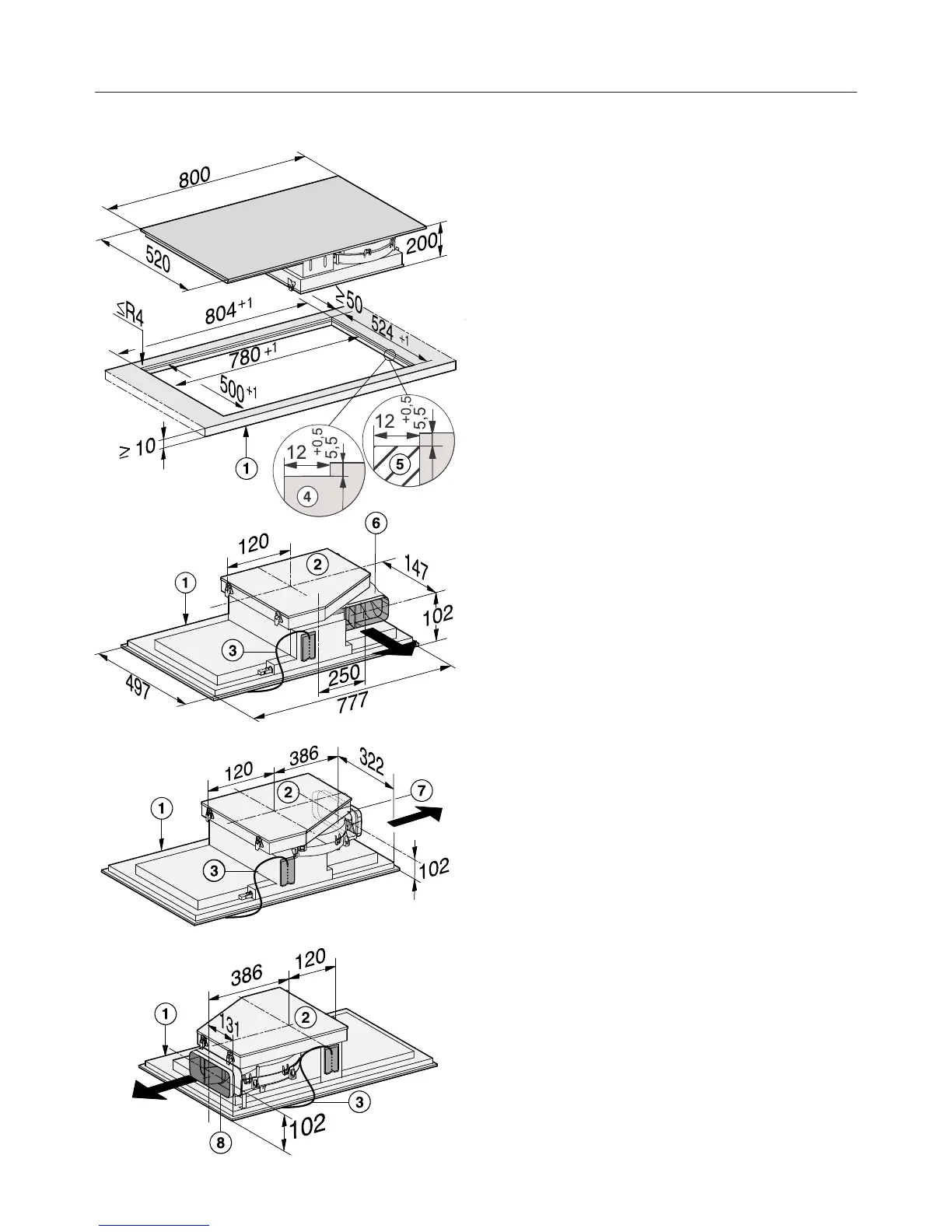

Installation dimensions–Flush
70
KMDA 7774 FL
a
Front
b
Removable drip tray
c
Mains connection box with mains
connection cable, L = 1440 mm
d
Stepped cut-out
e
Wooden frame (to be provided on
site)
f
Air duct connection – at the back
(ex-works)
g
Air duct connection - on the right
(conversion required)
h
Air duct connection - on the left
(conversion required)
