Change extraction direction
76
Extraction to the left

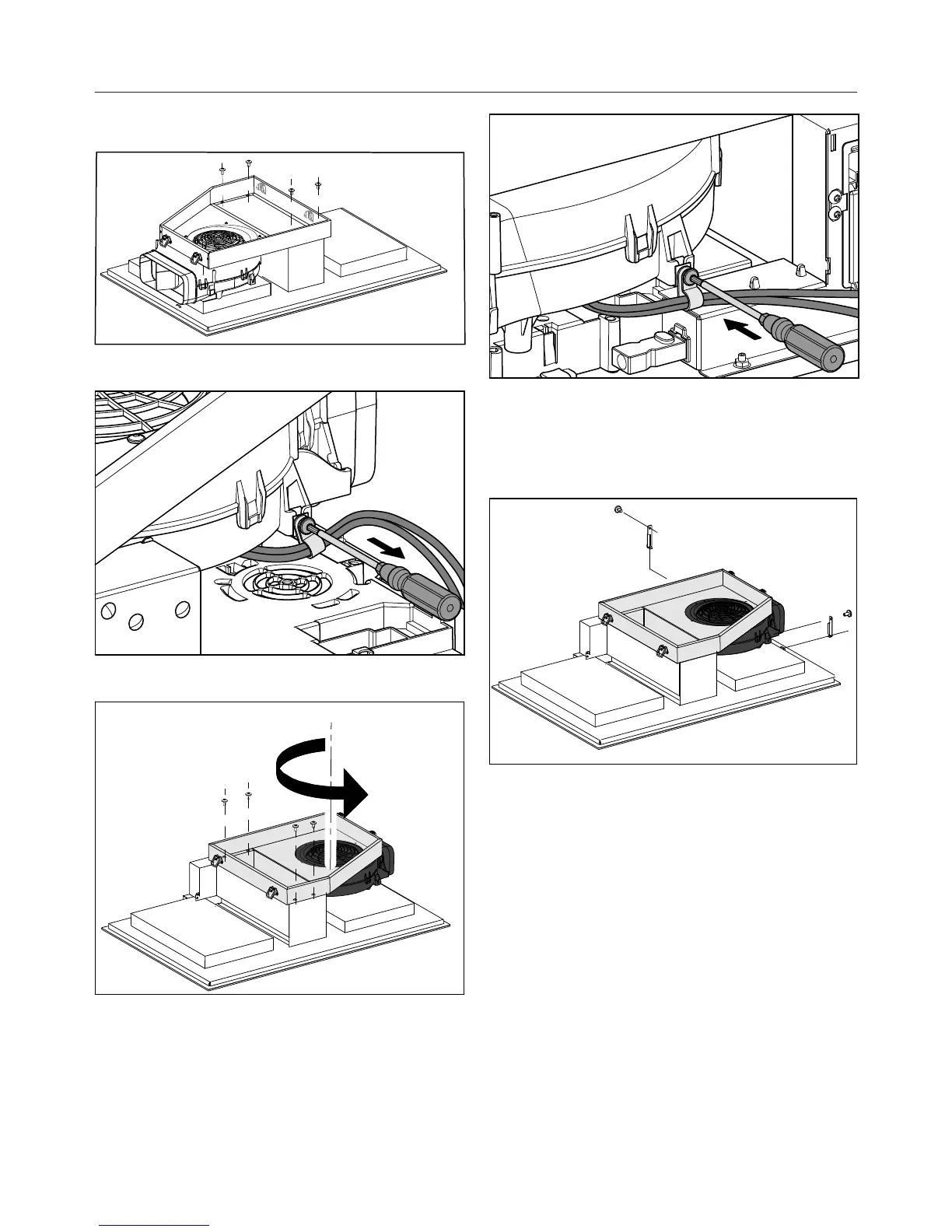

Undo the 4 screws on the frame.
Loosen the cable tie.
Lift the frame and the fan and turn
them 180°.
Guide the cable under the fan.
Reattach the cable tie.
Refit the 4 screws in the frame.
Secure the fan to the fixing brackets.
Place the drip tray onto the extractor
again and secure the tray using the
4catches.
