4.3 Lighting Assembly Replacement (Uniq Only)
A Cover Frame Removal, 020 4.2.
A Remove the bumper strip (010 Fig. 2, Pos. 2).
A Remove the T20 screws securing the parking slots on either side of the base
(010 Fig. 2, Pos. 3).
A Disconnect the lighting assembly wiring harness (010 Fig. 2, Pos. 5) from the
electronic board.
A Remove each parking slot together with the lighting assembly (010 Fig. 2,
Pos. 4).
x

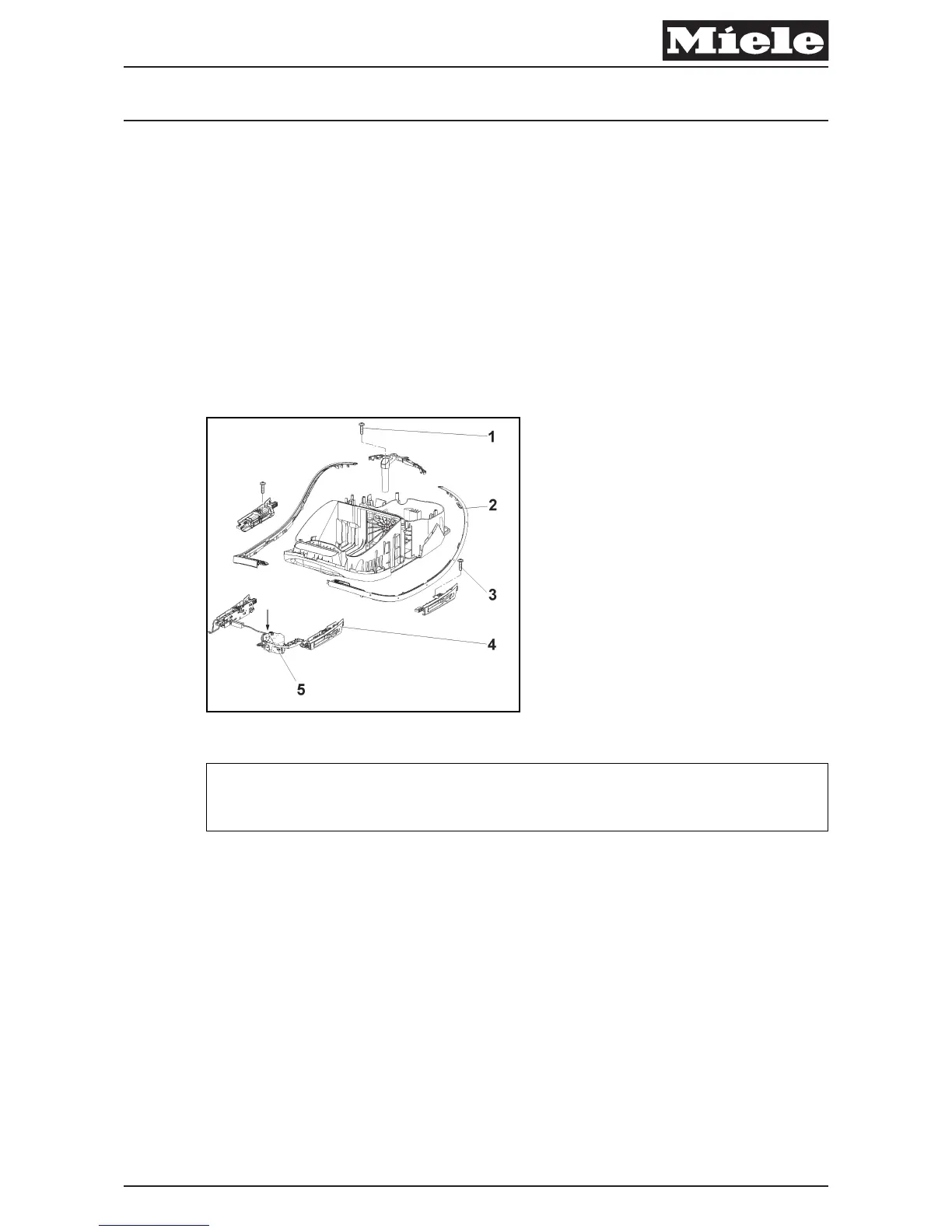

Fig. 2
Note
The lighting assembly can only be replaced in its entirety.
A Reinstall by following these instructions in reverse order.
Descriptive Technical Documentation
DTD no. 41-8000 010-3
07.06.2013, US_am This information should not be duplicated or passed on without Miele approval. All rights reserved.
