4.3 On/Of f Switch Removal
A Operating Unit Removal, 040 4.1.
A Turn the operating unit over; release the on/off switch from its retainers on the
operating-unit casing.
A Disconnect the two wires from the on/off switch.
4.4 Powerbrush Outlet Wiring Harness Removal
A Operating Unit Removal, 040 4.1.
A Turn the operating unit over; disconnect the Molex end of the wiring harness
from the electronic.
A Release the wiring harness from its retainers on the operating-unit casing.
A Release the socket end of the wiring harness from its housing on the
operating-unit casing.
4.5 Park Switch Replacement (Model-Dependent)
x

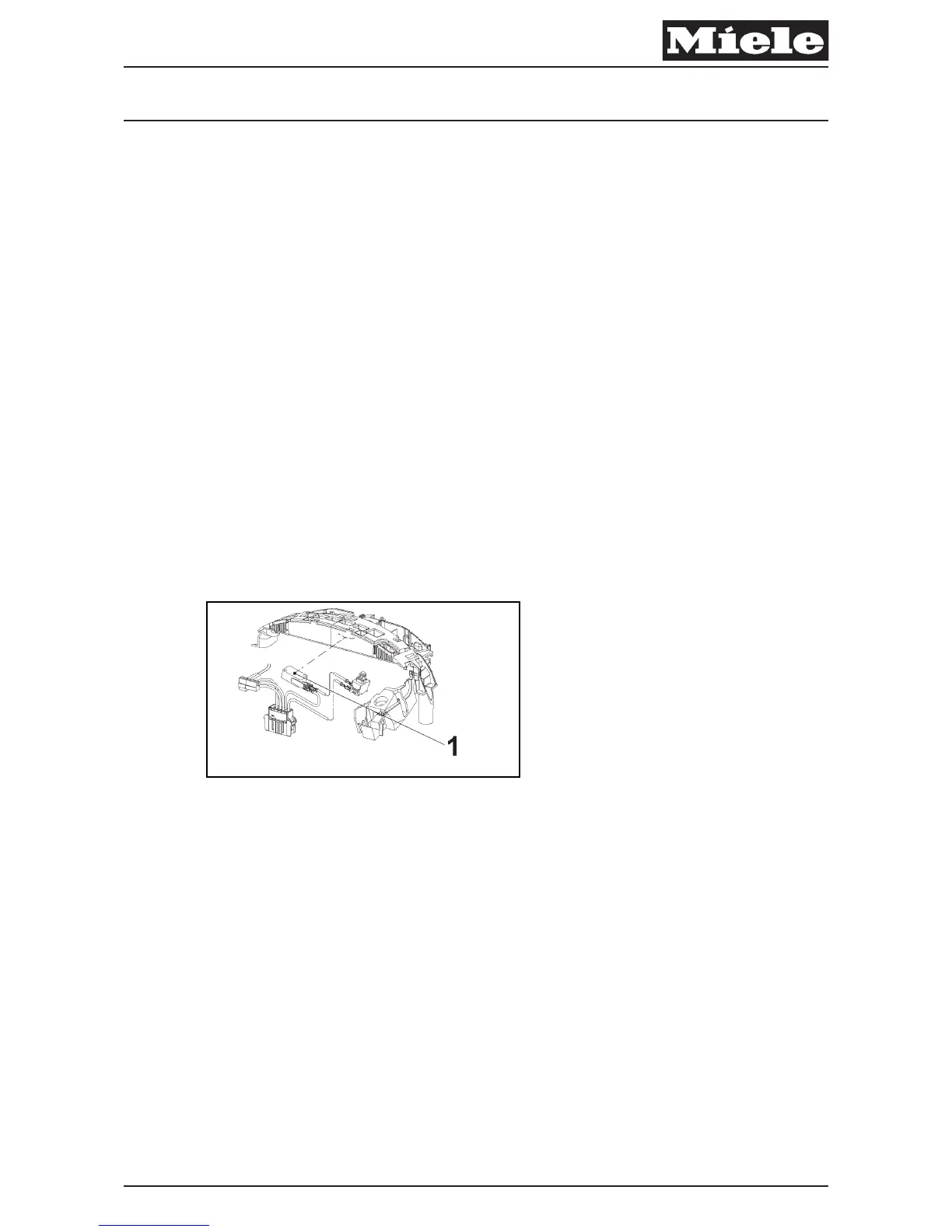

Fig. 10: Park Switch
A Operating Unit Removal, 040 4.1.
A Disconnect and remove the Park switch (040 Fig. 10, Pos. 1).
Descriptive Technical Documentation
040-10 DTD no. 41-8000
This information should not be duplicated or passed on without Miele approval. All rights reserved. 07.06.2013, US_am
