Miele S 8530 - Service; Telescopic Suction Hose Locking Piece Replacement; Pushbutton Replacement

4 Service
4.1 Telescopic Suction Hose Locking Piece Replacement
x

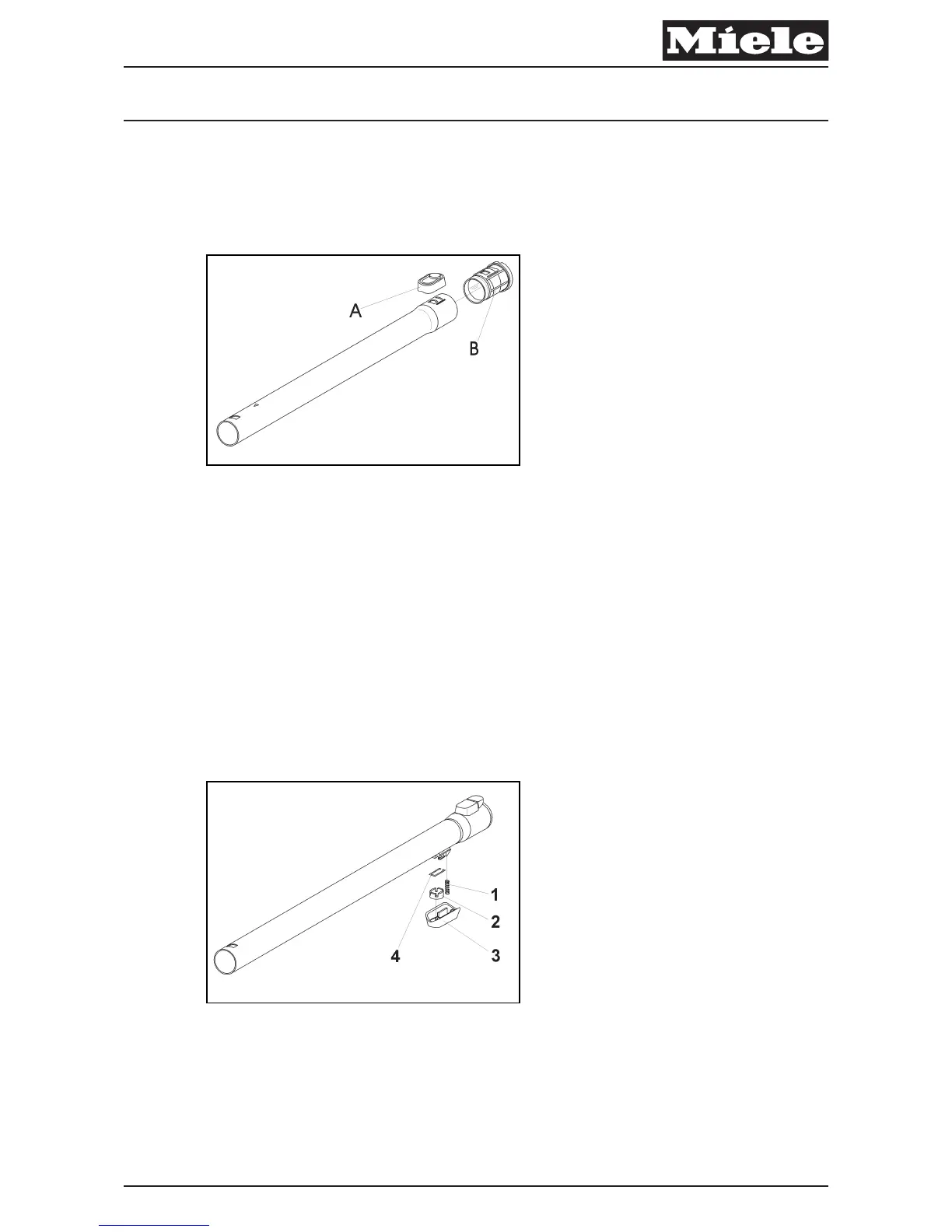

Fig. 1: Telescopic Hose Locking Piece
A Release the old locking piece with a small flathead screwdriver.
A Remove the cap (060 Fig. 1, Pos. A). The pushbutton and spring underneath
will be released as well.
A The insert (060 Fig. 1, Pos. B) will also come out when the locking piece is
removed.
A When installing, first insert the pushbutton.
A Press and hold the pushbutton while sliding the insert into the suction hose.
4.2 Pushbutton Replacement
x
Fig. 2: Pushbutton
A Pry of f the old pushbutton with a small flathead screwdriver.
A Place the bar (060 Fig. 2, Pos. 4) in its holder.
A Place the spring (060 Fig. 2, Pos. 1) in its holder.
A Place the pushbutton (060 Fig. 2, Pos. 2) on the bar.
