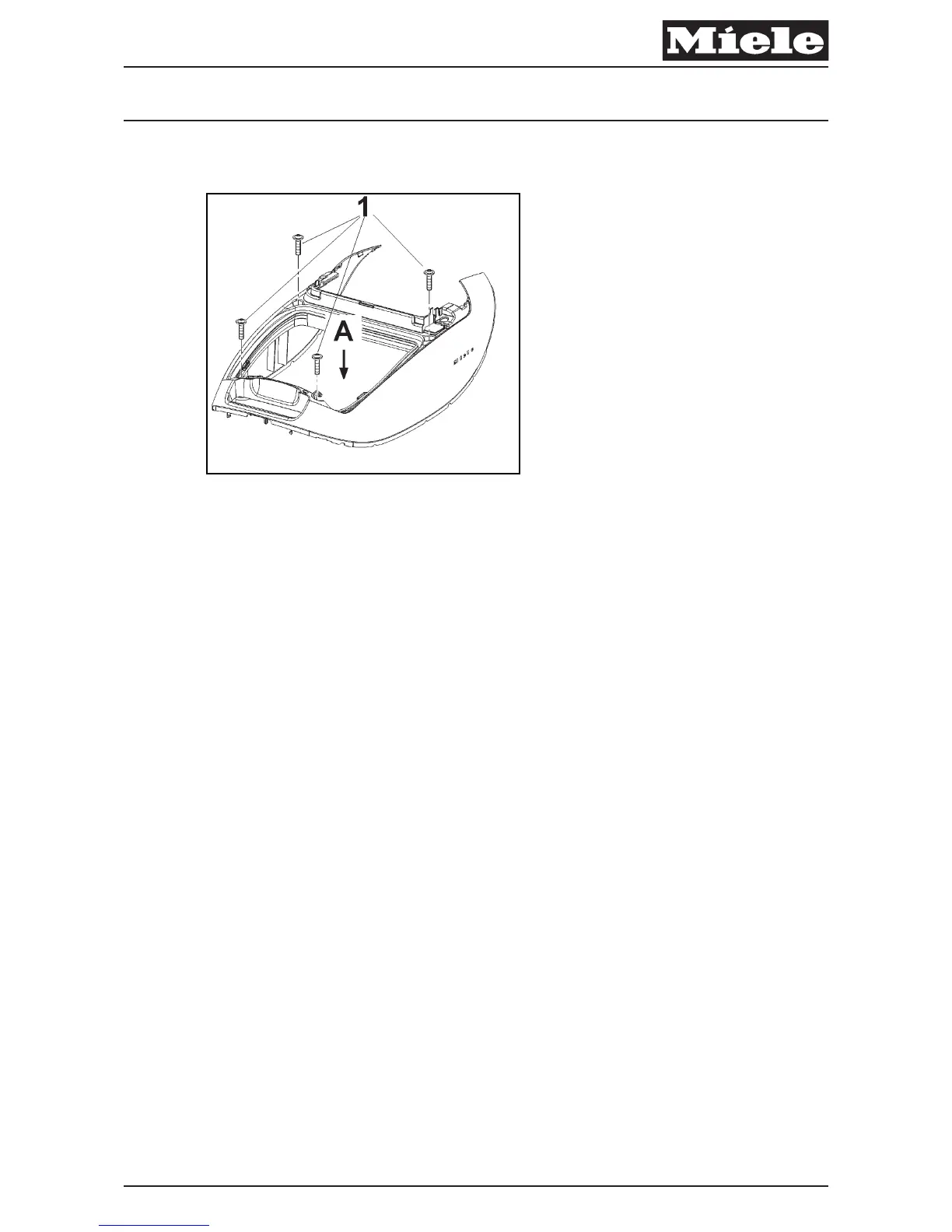

Fig. 2: Cover Frame
A Dust Compartment Lid Removal, 030 4.2.
A Remove the bag holder (Bag Holder Replacement, 020 4.1).
A Take of f the seal surrounding the dust compartment.
A Take out the exhaust (HEPA or AirClean) filter and filter frame.
A Remove the four T20 screws securing the cover frame (020 Fig. 2, Pos. 1).
A Remove the right foot switch (cord rewind) (040 Fig. 8).
A Remove the retaining screw (T20) underneath.
A Push down inside the base and pull up on the cover frame to remove (020
Fig. 2, Pos. A). The bumper strip will also come off.
Descriptive Technical Documentation
DTD no. 41-8000 020-3
07.06.2013, US_am This information should not be duplicated or passed on without Miele approval. All rights reserved.
