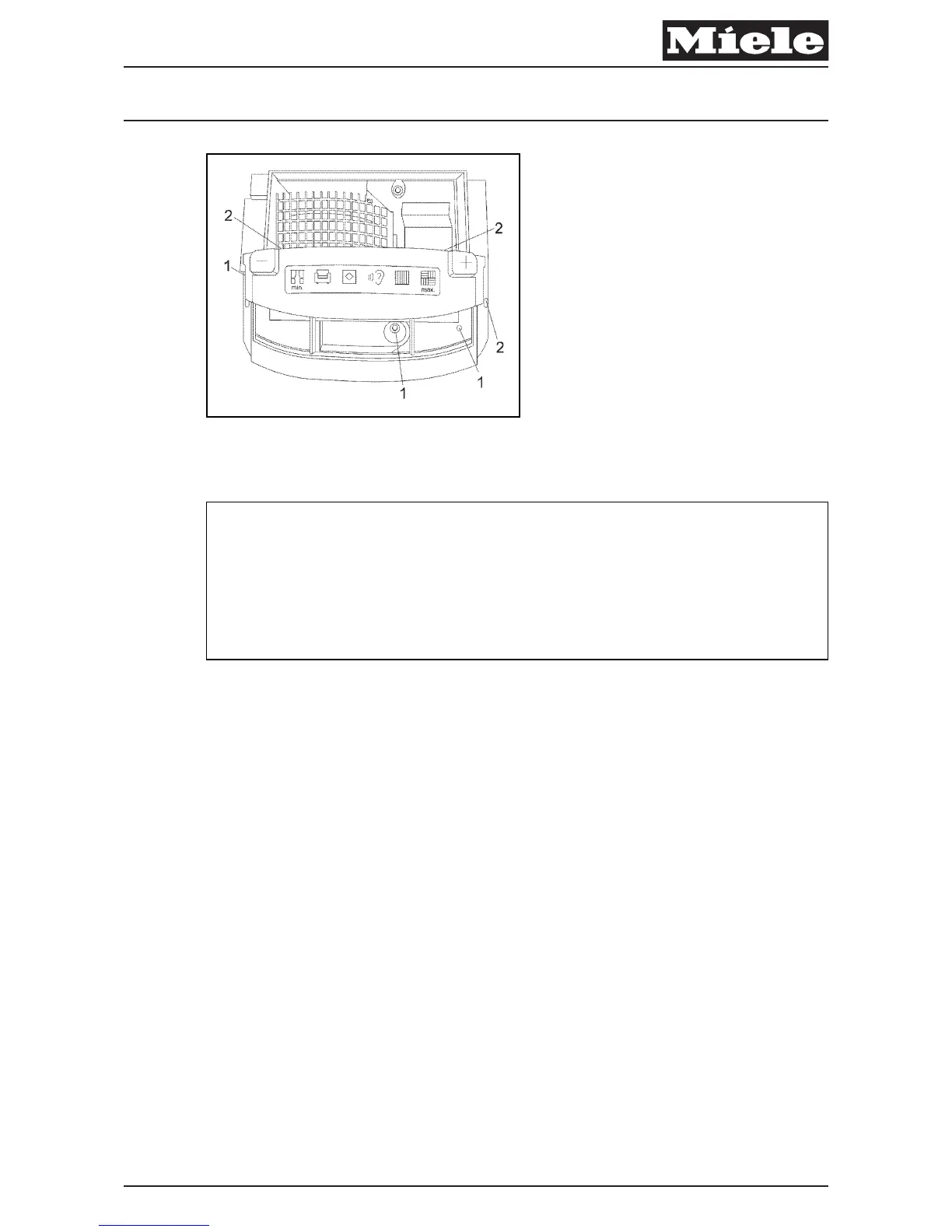

Fig. 9: Operating Unit Removal
A Reinstall by following these instructions in reverse order.
x
Note
If the operating unit cannot be easily reinstalled, check that the motor and the
cord reel are correctly seated in the base.
When removing the operating unit, the plugs between the operating unit and the
motor will also be disconnected. These plugs must be lined up exactly when re-
inserting the operating unit so that they can be snapped into place.
4.2 Electronic Board Removal
A Operating Unit Removal, 040 4.1.
A Turn the operating unit over; release the electronic board from its locking tabs
on the operating-unit casing.
A Disconnect the two Molex plugs from the electronic board.
Descriptive Technical Documentation
DTD no. 41-8000 040-9
07.06.2013, US_am This information should not be duplicated or passed on without Miele approval. All rights reserved.
