Technical Information
11
S2 Canister Vacuums
2 Function
2.1 Casters
The appliance has three casters that can rotate through 360°. The caster
rollers are mounted on steel axles. The roller contact surfaces are covered
with a soft plastic coating.
4 Service
4.1 Caster
Removal
1.

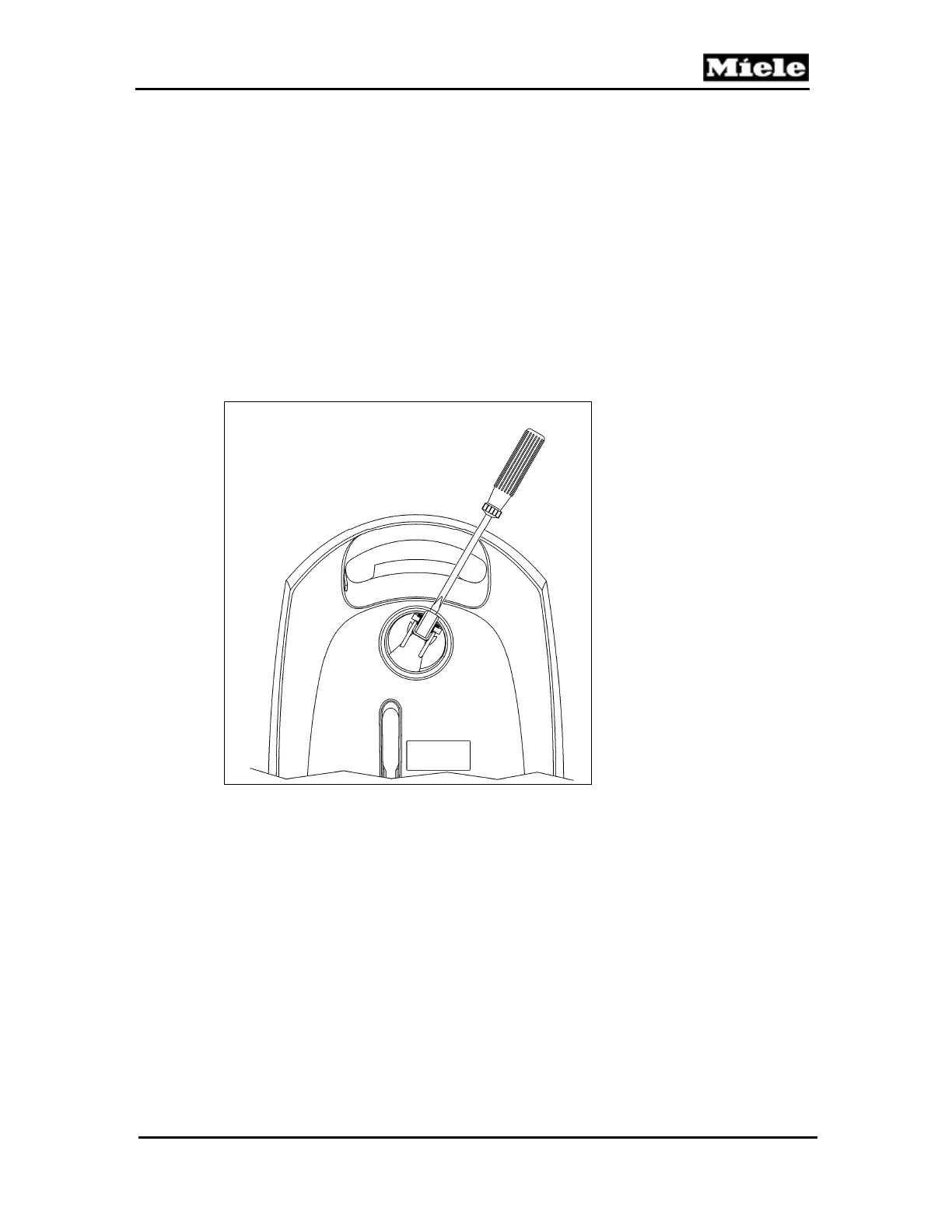

Lever out the support roller and axle with a flathead screwdriver. See
Figure 010-1.
Figure 010-1:
Support Roll
er and Axle
2.
Lever out the caster; see Figure 010-2.
10
12
Table of Contents
Default Chapter
2
Table of Contents
2
Warning and Safety Instructions
4
General Information
4
Cleaning and Care
4
Vacuums and Accessories
4
Dust Compartment
4
B Modification History
5
C Technical Data
5
Table C-1: S2 Data Sheet, US Models
6
D Layout of Electrical Components
7
Figure D-1: Control Panel (at Rear of Vacuum)
7
Figure D-2: Internal Component Layout
7
Figure D-3: External Component Layout (with Basic Suction Hose)
8
Figure D-4: External Component Layout (with Electro Accessories)
9
010 Casing Bottom, Motor
10
Function
11
Casters
11
Service
11
Caster Removal
11
Figure 010-1: Support Roller and Axle
11
Motor Removal
12
Figure 010-2: Caster Removal
12
Figure 010-3: Electronic Retainer
12
Cord Reel Removal
13
Figure 010-4: Motor
13
Figure 010-5: Cord Reel and Motor
13
Cord Removal
14
Figure 010-6: Cord Reel Retainer on Side
14
Figure 010-7: Cord Reel, Unwound
14
Figure 010-8: Cord Reel Clamped to Reel Assembly Body
15
Figure 010-9: Screws Securing Cord Reel
15
Figure 010-10: Cord Reel Tabs
16
020 Casing Top
17
Function
18
Bags
18
Bag Change Indicator
18
Figure 020-1: Bag Change Indicator
18
Filters
19
Service
19
Bag Holder Removal
19
Bag Change Indicator Removal
19
Figure 020-2: Filter Types
19
Figure 020-3: Bag and Holder
19
Casing Top Removal
20
Figure 020-4: Bag Change Indicator Removal
20
Figure 020-5: Casing Top Removal
20
Motor Protection Filter Frame Removal
21
Cover Frame Removal
21
Figure 020-6: Filter Frame Retaining Tabs
21
Figure 020-7: Cover Frame Screws
22
Figure 020-8: Cover Frame Removal
22
Air Inlet Regulator Removal
23
Changing the Bag
23
Figure 020-9: Air Inlet Regulator
23
Replacing the Super Air Clean Filter
24
Replacing the Active Air Clean or Active HEPA Filter
24
Figure 020-10: Changing the Bag
24
Figure 020-11: Replacing the Super Air Clean Filter
24
Replacing One Type of Filter with Another
25
Changing the Dust Compartment (Motor Protection) Filter
25
Figure 020-12: Replacing the Active Air Clean or Active HEPA Filter
25
Figure 020-13: Changing the Dust Compartment Filter
25
030 Controls, Electronic
26
Function
27
Suction Power
27
Fault Repair
27
Vacuum Cleaner Cannot be Switched on
27
Figure 030-1: Rotary Selector Switch
27
Vacuum Cleaner Shuts Itself off or Overheating Indicator LED Lights up
28
Service
28
Cap Removal
28
Figure 030-2: Cap Screws
29
Figure 030-3: Notches
29
Electronic Removal
30
On/Off Switch Removal
30
Figure 030-4: Tabs
30
040 Suction Hose, Accessories
31
Function
32
Technical Information Accessories
32
Fault Repair
32
Suction Power too Low
32
Figure 040-1: Accessories
32
Service
33
Telescopic Suction Hose Locking Piece Replacement
33
Figure 040-2: Telescopic Locking Piece
33
Pushbutton Replacement (for Telescopic Hoses)
34
Figure 040-3: Pushbutton Replacement
34
